Page 1: User Manual
Element+ Element+ Element+ Essential strength Lower Back User manual... -
Page 2: Table Of Contents
Contents User manual ....................1 Contents ..................... 2 Important safety instructions ..............3 Personal safety ..................4 Identification of the manufacturer and the product ......6 Description of the product ............... 7 Technical characteristics ................. 8 Place of installation .................. 9 Lifting and moving the product ............. -
Page 3: Important Safety Instructions
Any other use should be considered incorrect and therefore dangerous. Do not use any accessories other than those recommended by Technogym. Never turn on the product if it is not working correctly, if it has been knocked over or damaged, or if it has fallen into water. In these circumstances, contact the Technogym Technical Support Service. -
Page 4: Personal Safety
Do not attempt any maintenance work on the product other than the operations described in the user manual. The installation, maintenance and setting operations must be carried out by qualified Technogym staff or persons authorised by Technogym. The product does not have any sharp corners. All parts which come into contact with the user's body are suitably protected with rubber coverings or padding. - Page 5 Personal safety The instruction label must be applied on the product. Technogym declines all responsibility in the event of the equipment being used before affixing the instruction label. This symbol accompanies safety warnings and is used to draw attention to potential risks of personal injury. Pay attention to all safety warnings accompanied by this symbol to avoid possible injury.
-
Page 6: Identification Of The Manufacturer And The Product
The values shown in the drawing are purely indicative; check the label on the product for the correct information. Technogym S.p.A. via Calcinaro 2861, Cesena (FC) Designed by Technogym - Made in Slovakia - EU LOWER BACK Model no. MB45... -
Page 7: Description Of The Product

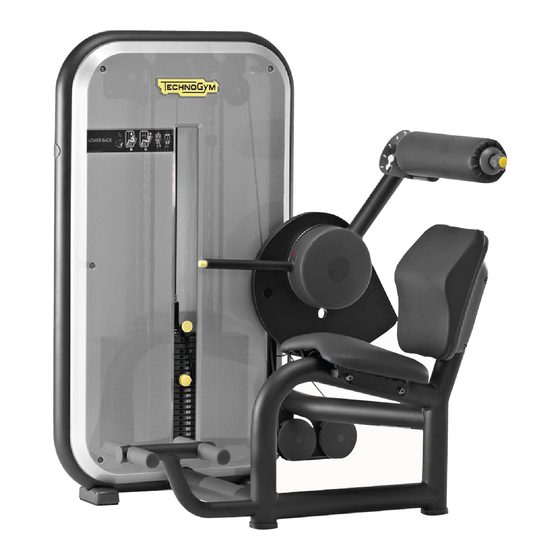

Description of the product A Seat. Where the user sits to perform the exercise. B Exercise lever. Operated by the user by means of the roller (D). C ROM device. Allows the starting position to be adjusted, therefore the Range of Motion. E Weight stack. -
Page 8: Technical Characteristics
Technical characteristics 1003 mm (39") 1196 mm (47") Weight of the product 201 kg (444 lb) Weight stack 80 kg (160 lb) Maximum user weight 180 kg (397 lb) Lower Back... -
Page 9: Place Of Installation
Place of installation To ensure safe, comfortable and effective use of the product, the place of installation must comply with certain specific requirements; in particular, before choosing where to install the product, check that at least the following requirements are met. Temperature between +10°C and +25°C. -
Page 10: Lifting And Moving The Product
Lifting and moving the product Normal lifting and transport equipment must be used to move the product. It is recommended to place some padded material between the frame and the lifting machine. Before lifting the equipment, insert between the two panels of the weight stack the spacer provided at the time of delivery Lift the equipment from the weight stack side, as shown in the figure. -
Page 11: Levelling The Product
Levelling the product The product must be level for proper operation. The feet (A) are adjustable for this purpose. Unscrew the cover (B), which serves as a locknut. Screw or unscrew the feet (A) until they rest properly on the floor. When the product is in a stable position, tighten the cover (B). -
Page 12: Routine Maintenance
Do not use chemicals or solvents. Be careful not to rub too hard on the drawings and instructions shown on the labels. For maintenance actions not described in this manual, call in the Technogym Technical Service. To lubricate the weight stack guides: remove the back panel of the weight stack;... -
Page 13: Replacing Spare Parts
Replacing spare parts Request spare parts from the Technogym Technical Support Service. Use only original Technogym spare parts. To replace the seat padding, unscrew the screws located on the opposite side of the padding. Proceed as follows to replace the roller: remove the cap (A);... -
Page 14: Replacing The Cable
Cables must always be replaced at the first sign of wear, even if only the outer rubber protection is worn. Warnings Carefully check the state of the cables once a month. ALWAYS use cables supplied directly by Technogym. To replace the cable, you must: remove the rear protective weight stack panel; unscrew screws (A);... - Page 15 Replacing the cable insert the new cable from the adjuster side (ensuring that it follows the same route as the original cable, as shown in the illustration); tighten screws (A); screw in adjuster (C) and screw on lock nut (B); refit the protective panel on the weight stack.
-
Page 16: Adjusting The Cable Tension
Adjusting the weight stack cable tension Use the adjuster (C) to adjust the tension of the weight stack cable. Remove the rear protective weight stack panel. Loosen the locknut (B). Tighten or loosen the adjuster (C) to correctly adjust the cable tension. Tighten the locknut (B). -
Page 17: Removing The Rear Protective Weight Stack Panel
Removing the rear protective weight stack panel Remove the rear protective weight stack panel to access the cable. Do not use the product even if only one of the protective weight pack panels is missing. The weight stack panel is attached to the frame with 6 screws. To disassemble the panel (A): unscrew the 6 screws (B) while holding the panel with one hand;... -
Page 18: Technical Service
When contacting the Technogym Technical Support Service, please specify the following details: equipment model, date of purchase, serial number, precise description of the problem. Any operations carried out by persons not authorized by Technogym on the product will invalidate the warranty. Lower Back... -
Page 19: Storing The Product
Storing the product If a long period of non-use is expected, you are advised to store the equipment in the following way: in a clean dry place, with a dust cover; at a room temperature between -10°C and 70°C and relative humidity between 20% and 90%. For better storage, use the original packing materials. -
Page 20: Using The Product
Open the QR code reader on your device and point the camera of the device at the code on the product. In this way, the personal device will connect to the Technogym cloud. To connect using the QR code, you must have installed the Technogym application on your personal device. - Page 21 Using the product The ROM device (A) is used to adjust the starting position, i.e. the range of motion. The position can be adjusted using the lever (B). To lift the roller and sit more comfortably, release the adjustment lever (B) using the button located on the end, then lift the lever.
- Page 22 Using the product Fold your arms across your chest, and press back without pushing with your feet and without going past the 90° position to avoid overloading your muscles. Maintain a smooth controlled speed; we recommend a slower speed during the return phase than when moving outwards.
- Page 23 Lower Back_en_AD 0WE00311...
