Summary of Contents for Hytera RD62 series

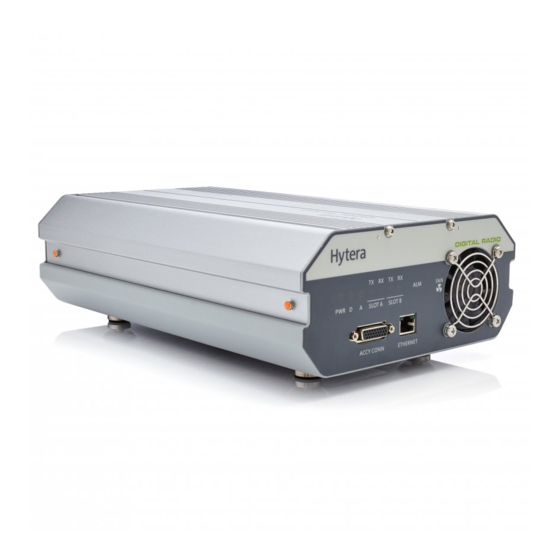

- Page 1 Preface Thanks for your favor in our product. To derive optimum performance from the product, please read this manual and the Safety Information Booklet carefully before use. This manual is applicable to the following product: RD62X Repeater(X may represent 2, 5, 6 or 8)
- Page 2 Instructional Icons Caution: Indicates situations that could cause damage to your product or bodily injury. Note: Indicates tips that can help you make better use of your product. Term Explanation Voltage Standing Wave Ratio (VSWR) Voltage Standing Wave Ratio (VSWR) is a value that measures how well a load is impedance-matched to a source.
- Page 3 Copyright Information Hytera is the trademark or registered trademark of Hytera Communications Corporation Limited (the Company) in PRC and/or other countries or areas. The Company retains the ownership of its trademarks and product names. All other trademarks and/or product names that may be used in this manual are properties of their respective owners.
- Page 4 RF Radiation Information This product must be restricted to operations in an Occupational/Controlled RF exposure Environments. Users must be fully aware of the hazards of the exposure and able to exercise control over their RF exposure to qualify for the higher exposure limits. RF Radiation Profile Radio Frequency (RF) is a frequency of electromagnetic radiation in the range at which radio signals are transmitted.
-
Page 5: Table Of Contents
Contents 1. Items in the Package ..........................1 2. Product Overview ..........................2 2.1 Parts ..............................2 2.2 Front Panel ............................3 2.3 Rear Panel ............................4 3. Before Use ............................5 3.1 Instructions ............................5 3.2 Wall-mount Bracket Installation (Optional) ..................5 4. -
Page 6: Items In The Package
1. Items in the Package Please unpack carefully and check that all items listed below are received. If any item is missing or damaged, please contact your dealer. Repeater AC Power Cord Documentation Kit... -
Page 7: Product Overview
2. Product Overview Parts Part Name Part Name Front Panel Foot Pad Upper Cover Fan Mesh Enclosure Chassis... -
Page 8: Front Panel
Front Panel Part Name Part Name Power LED Indicator Slot B RX LED Indicator Digital Mode LED Indicator Alarm LED Indicator Analog Mode LED Indicator Fan Inlet Slot A TX LED Indicator Accessory Connector Slot A RX LED Indicator Ethernet Interface Slot B TX LED Indicator Note: If the repeater is manufactured without internal duplexer, then part 8 will be an external duplexer RX... -
Page 9: Rear Panel
Rear Panel Part Name Part Name DC Power Inlet AC Power Inlet Fan Outlet AC Power Switch ANT/TX Antenna Connector (N-type Ground Terminal Female) Fuse Box RX Antenna Connector (N-type Female) -
Page 10: Before Use
3. Before Use Instructions To ensure optimum performance and reliability of the repeater, please read the following instructions carefully. Operation Environment The repeater must be installed in a dry and well-ventilated place with ambient temperature of -30℃ to +60℃ and relative humidity of not more than 95%. Voltage Check Check whether the input voltage is within the operating voltage of the repeater (DC power supply: 13.6V ±15%;... - Page 11 3.2.2 Installation Procedures Step 1 Install the wall-mount bracket. 1. Drill three holes into the wall, with each hole aligned with those of the wall-mount bracket. 2. Put the plastic wall anchor into the drilled holes. Skip this step if the wall is not a concrete wall. 3.
- Page 12 3.2.3 Product Check Check whether the repeater works properly by observing the seven LED indicators in the front panel after the repeater is powered on via the AC Power Switch.
-
Page 13: Status Indication
4. Status Indication The LED indicators on the front panel indicate the following repeating status: LED Indicator Name LED Indication Repeater Status Digital Mode LED Indicator Blue The repeater is operating in digital mode. Analog Mode LED Indicator Yellow The repeater is operating in analog mode. ... -
Page 14: Alarm Information
5. Alarm Information The repeater will have real-time detection of its operation status automatically. When it is operating abnormally, the alarm LED indicator on the front panel will glow red until all alarms are eliminated. When an alarm event occurs, you can diagnose and solve the problem via the RDAC application provided by us or contact your local dealer for technical support. -
Page 15: Troubleshooting
6. Troubleshooting Phenomena Analysis Solution power cord Properly connect the power cord and disconnected securely ensure secure connection. connected to the outlet. Check whether the DC power fuse is The fuse in the power cord is damaged. If it is damaged, replace it with a Power-on Failure. - Page 16 The duplexer (if installed) may be Contact Hytera or the local dealer to adjusted improperly. re-adjust the duplexer. If the above solutions cannot fix the problems, or you have other questions, please contact Hytera or the dealer for more technical support.
-
Page 17: Care And Cleaning
7. Care and Cleaning To guarantee optimal performance as well as a long service life of the product, please follow the tips below. Product Care Keep the product in good environmental conditions to ensure reliability. Do not place other equipment on top of the product to ensure optimal heat dissipation. ... -
Page 18: Optional Accessories
The following items are the main optional accessories for the repeater. For more information of other accessories, please consult your local dealer. Caution: Use the accessories specified by Hytera only. If not, the Company shall not be liable for any losses or damages arising out of use of unauthorized accessories.
