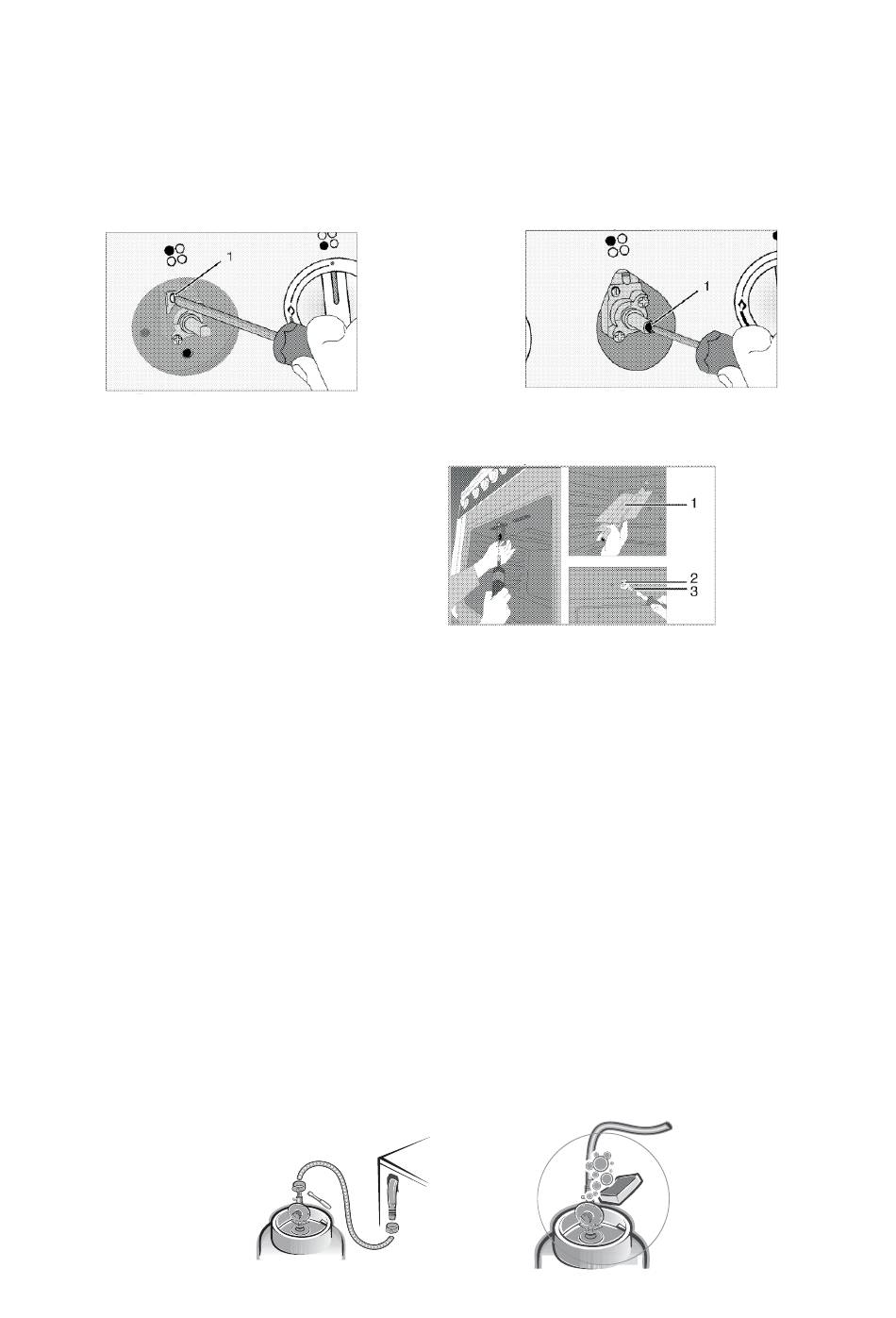

Reduced gas flow rate setting for hob taps

1. Ignite the burner that is to be adjusted and turn the knob to the reduced position.
2. Remove the knob from the gas position.
3. Use an appropriately sized screwdriver to adjust the flow rate adjustment screw.
For LPG(Butane - Propane) turn the screw clockwise.
>>The normal length of a straight flame in the reduced position should be 6-7mm.
4. If the flame is higher than the desired position, turn the screw clockwise. If it is smaller turn anticlockwise.
5. For the last control, bring the burner both to high-flame and reduced positions and check whether the flame is
on or off.
Depending on the type of gas tap used in your appliance the adjustment screw position may vary.
1 F o l w a r e t a

Exchange of injector for the grill

1. Open the front door.
2. Unscrew the screw of grill burner.
3. Slightly pull the grill burner (1) to lift it free with its
link(s) on the rear side connected.
4. Unscrew injector by turning to counterclockwise
direction.
5. Fit new injector.

Hose and regulator installation

1. Place the metal clamp on the hose end
2. Connect the hose to the oven inlet and tight the clamp
3. Place the other clamp on the opposite hose end and connect it to the pressure regulator Tight the clamp
4. Bolt the pressure regulate to the gas cylinder carefully
5. After the installation
The appliance is set to operate
*28-30 mbar outlet regul ator with butane gas @ category I3+
*37mbar outlet regulator with propane gas @ category I3+
*30mbar or 50mbar outlet regulator with butane, propane or their mixtures @ category I3B/P(30) or category
I3B/P(50) respectively.
The type of replaceable hose should meet the standard of EN1763/ 1Class3. The length of the hose must be 0 . 4
meters (minimum) and 1.5 meters (maximum). Worn or damaged hose must be replaced. Ensure that the hose
is not obstructed, kinked. It is recommended that the hose is changed within 1 year of the date of manufacture
or the national conditions require it.
The pressure adjuster should comply with the standard En12864 and current regulations in the country where it
is installed, which may be found at you rnearest retailer of gas items. Refer to the technical date. It is strictly
prohibited to use adjustable pressure. The life expectancy of the regulator is estimated as 10 years. It is
recommended that the regulator is changed within 10 years of the date of manufacture or the national
conditions require it.
d u j t s m e t n s c e r w
check if there is any gas leak, using soap or liquid detergent foam
,
1
.
.
.
7
F o l w a r e t a d u j t s m e t n s c
1
2
3
e r w
Grill burner
Injector holder
Injector
. .
.
