Installation Instructions

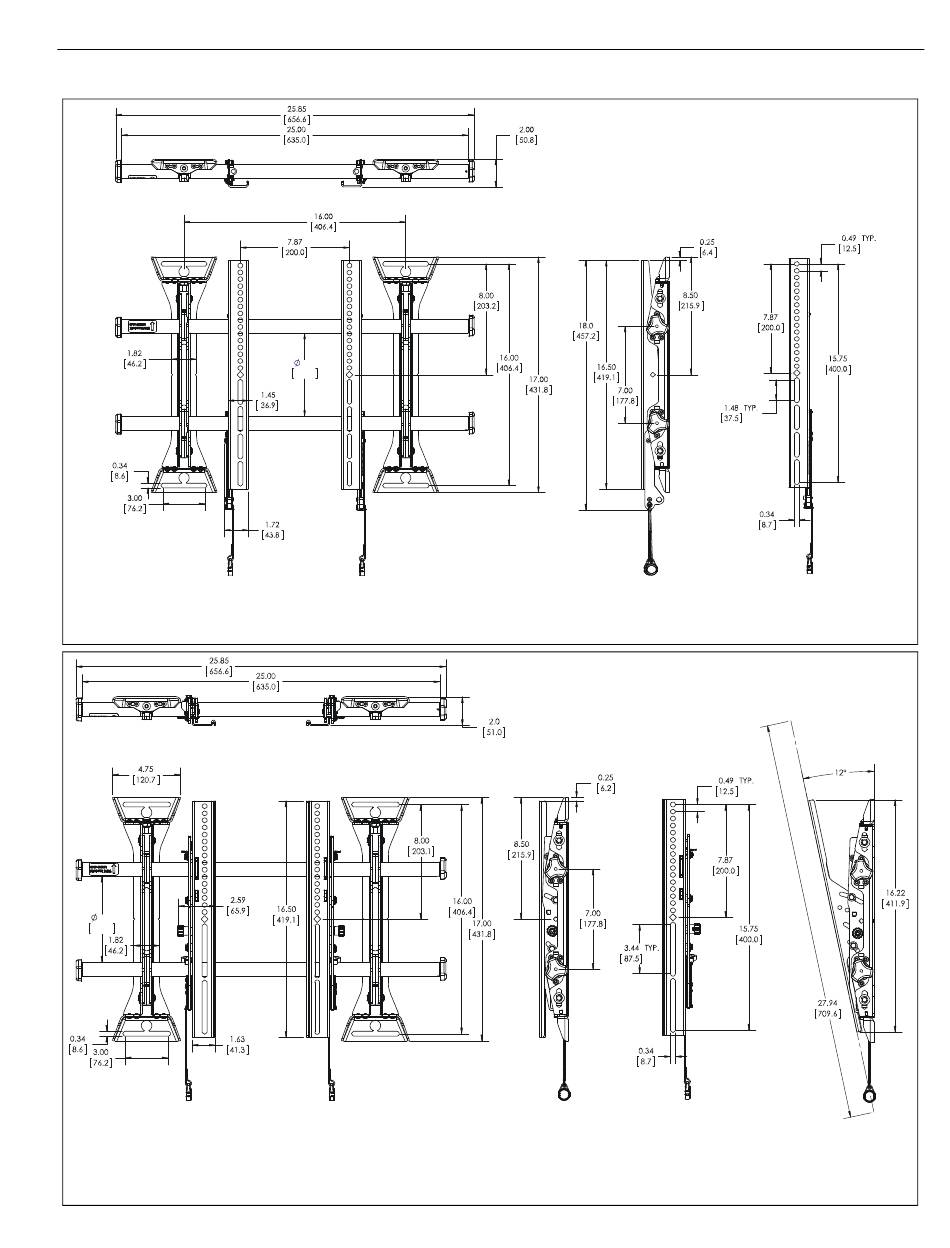

DIMENSIONS
RAILS CAN BE SLID LEFT OR RIGHT
1.
MAXIMUM MOUNTING PATTERN IS 22.7" (576 mm) WITHOUT REVERSING UPRIGHTS
2.
MAXIMUM MOUNTING PATTERN IS 25.3" (642 mm) WITH REVERSING UPRIGHTS
3.
FOR RECESSED APPLICATIONS, MINIMUM VERTICAL LIFT FOR HOOK
ENGAGEMENT IS .75" (19) mm)
6.00
152.4
RAILS CAN BE SLID LEFT OR RIGHT
FOR OFFSET
1.
MAXIMUM MOUNTING PATTERN IS 22.25" (565 mm) WITHOUT REVERSING UPRIGHTS
2.
MAXIMUM MOUNTING PATTERN IS 25.6" (650 mm) WITH REVERSING UPRIGHTS
3.
FOR RECESSED APPLICATIONS, MINIMUM VERTICAL LIFT FOR HOOK
ENGAGEMENT IS .75" (19 mm)
6.00
152.4
FOR OFFSET
MSM1U / MTM1U / LSM1U / LTM1U
DIMENSIONS:
[MILLIMETERS]
DIMENSIONS:
MSM1U
INCHES
MTM1U
INCHES
[MILLIMETERS]
