Leckey Squiggles+ User Manual page 12

p.12 Squiggles + Stander User Manual

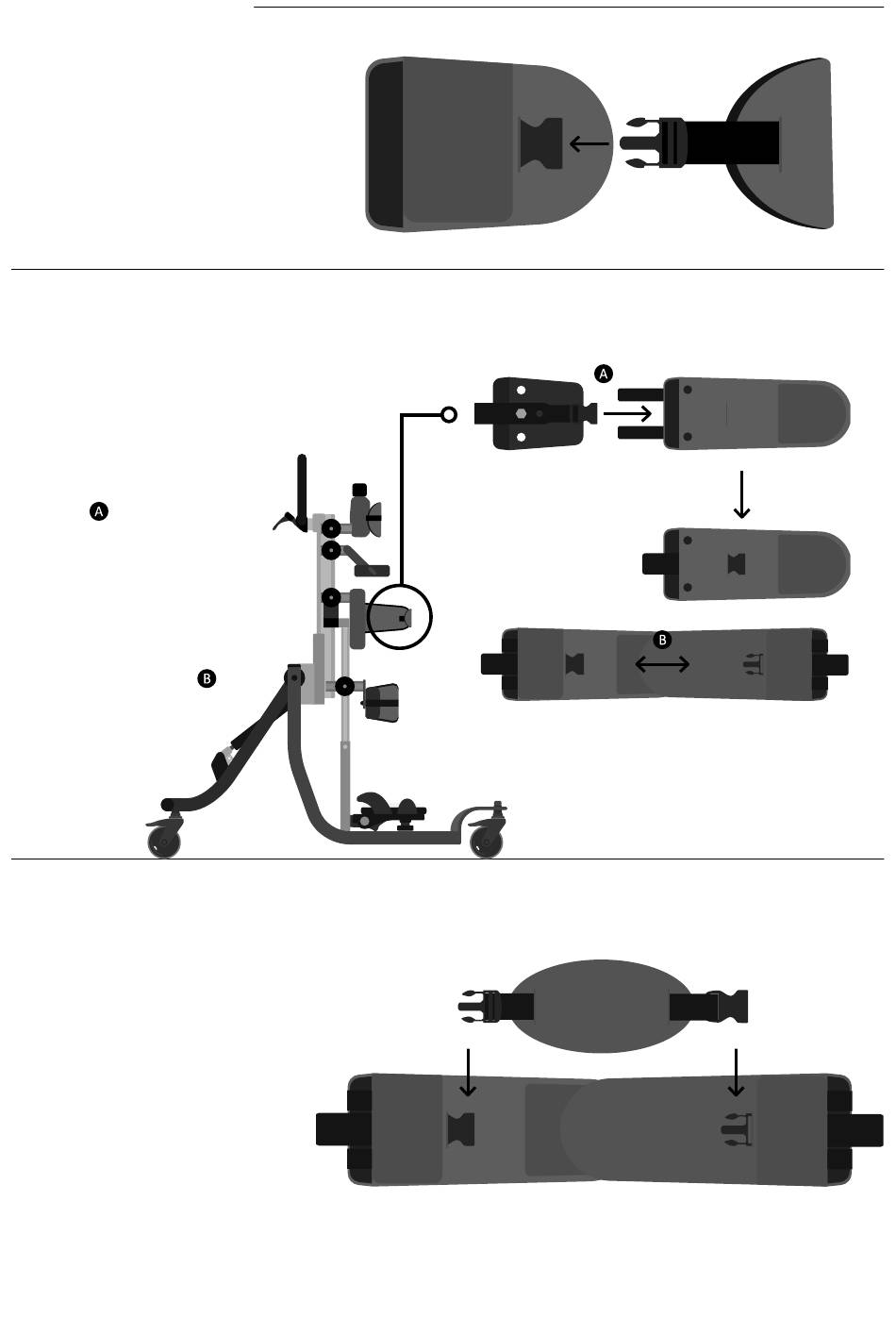

8.3 Chest support harness
The Chest support can be
attached by clipping the
male buckle into the female
buckle at either side of the
lateral supports.
8.4 Pelvic harness
To attach the pelvic harness,
simply slide the left and
right sides of the harness
over the lateral supports.
Sleeve the plastic buckles
through the slots in the
harness . Then fasten
the poppers together at
the back of the harness.
Finally pull the Velcro
receiving straps around
the user to secure the
user in the harness.
8.5 Hip Support harness
The hip support should be
attached around the pelvic
harness as an additional
safety support should the
Velcro on the pelvic harness
begin to wear. It can be
attached by clipping the
male buckle into the female
buckle at either end of the
pelvic harness.
To adjust the tension lift
the front panel, adjust the
straps to the required length
and then replace the panel.
