Summary of Contents for Presidential Billiards Kariba

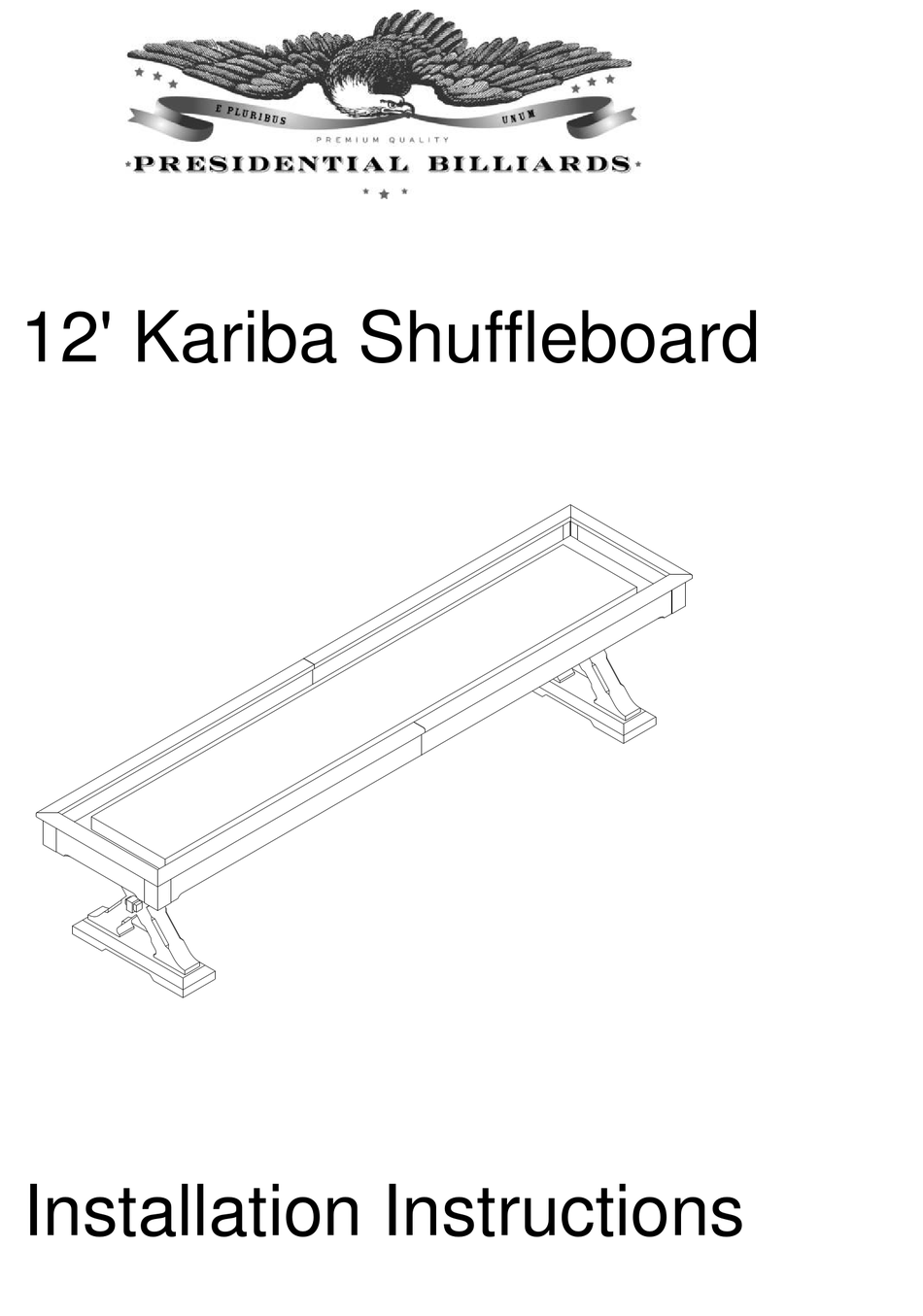

- Page 1 12' KARIBA 12' Kariba Shuffleboard SHUFFLEBOARD TABLE Installation Instructions ASSEMBLY INSTRUCTIONS...
- Page 2 REPLACEMENT PARTS LIST Kariba Shuffleboard Components QTY. PACKAGE ITEM# SAMPLE DESCRIPTION LEG BEAM WOOD PLUG PLAYBOARD CABINET...
- Page 3 REPLACEMENT PARTS LIST(HARDWARE) Kariba Shuffleboard Hardware ITEM# SAMPLE DESCRIPTION QTY. PACKAGE HEX BOLT 5/16" X 2" FLAT WASHER 5/16" I.D. HEX HEAD CROSS BOLT 5/16" x 2" FLAT WASHER 5/16" I.D. FLAT HEAD SCREW 5/16 " X 1" FLAT WASHER 5/16"...
- Page 4 FIG.1 FIG.2...
- Page 5 FIG.3 FIG.4 Take off H3 and H4 for future use...
- Page 6 FIG.5 Remove playboard FIG.6 Adjust H1 tightly after Adjust H1 tightly after cabinet be leveled cabinet is leveled...
- Page 7 FIG.7 FIG.8...
- Page 8 FIG.9 Adjust H3 tightly after Adjust H3 tightly after playboard be leveled playboard is leveled Finish...
