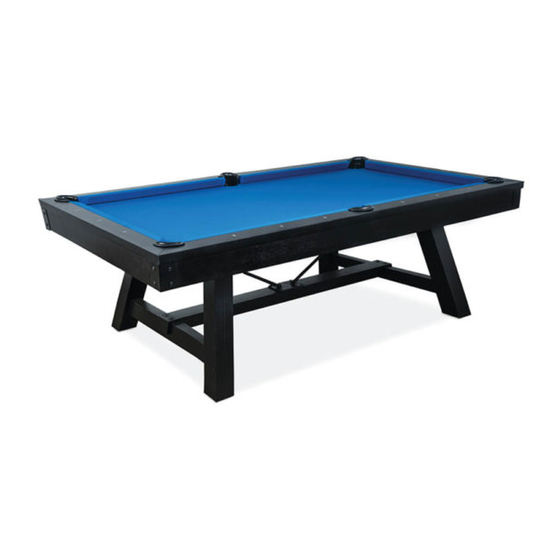

Presidential Billiards MADISON Installation Instructions

MADISON BILLIARD TABLE INSTALLATION INSTRUCTIONS

Tools required by the installer:

3/8" and 1/2" Drive ratchet and Extension
9/16" and 1/2" Sockets for above
9/16" and 1/2" Combo end wrench
# 2 and # 3 Phillips screwdriver
1/8" & 3/16" Drill bits
Level and shim material
Material to fill slate seams (beeswax, water putty, bondo, etc.)
Prior to installation of the table please check for damaged or missing parts. Call Presidential Billiards at
866-728-2253 if there is a problem. The hardware is packed in several different packets. This coincides
with the steps in this installation instruction and will hopefully reduce your time to verify what hardware
is required where. It is suggested that you retain the bolts in their respective packets for ease of
installation.
STEP 1 TRESTLE AND LEG ASSEMBLY
The trestle assembly consists of a stretcher attached to legs.
Loosely attach legs to leg stretcher using 5/16" x 4" black bolt.
1.1
Attach large black plate of lower support rods to stretcher using 4 – 1/4 – 20 x 2" black bolts.
1.2
DO NOT ATTACH TO LEG AT THIS TIME. DO NOT TIGHTEN LEG BOLTS TO
STREACHER AT THIS TIME.
STEP 2 FRAME ASSEMBLY
*Caution – Do not tighten any frame assembly bolts until all are in place!!
You will build frame assembly first and place on leg assembly.
2.1 Place the leg/trestle assembly in the location selected for the table.
2.2 Build beam assembly using 3/8 x 4 1/2" bolts, fender washers and barrel nuts.
Loosely attach beam assembly to legs using 5/16 x 4" bolt and fender washer.
2.3
2.4 Square frame and tighten all bolts including leg streacher.
Attach slate block to beam using 5/16 x 3 1/2" bolts and washers.
2.5
2.6 Attach small plate of support rods to underside of legs using 5/16" x 1 1/2" bolt and washer.
Do not tighten rods at this time.
Small Hammer
Tape Measure
13MM Combo end Wrench (2)
3/8" Electric drill/ driver
Utility Knife
Stapler and staples
