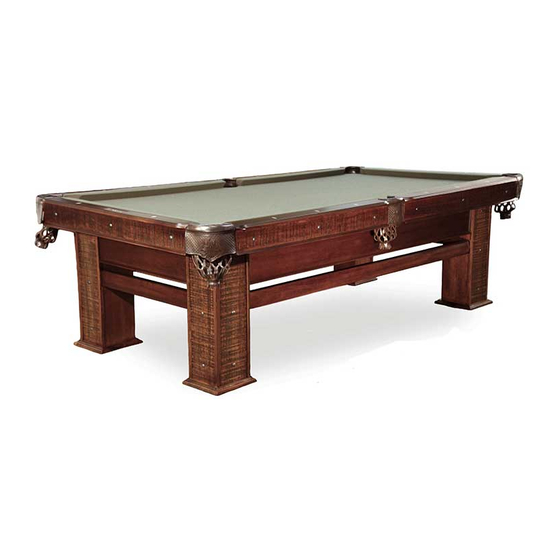

Presidential Billiards LEGEND Installation Instructions

LEGEND BILLIARD TABLE INSTALLATION INSTRUCTIONS

Tools required by the installer:

3/8" Drive ratchet and Extension
1/2" Sockets for above
1/2" Combo end wrench
# 2 and # 3 Phillips screwdriver
Electric drill/ driver
1/8" & 3/16" Drill bits
Speed Square
Prior to installation of the table please check for damaged or missing parts. Call Presidential Billiards at
866-728-2253 if there is a problem. The assembly hardware is packed according to the steps below to
facilitate the cabinet assembly.
STEP 1 ASSEMBLE THE CABINET
1.1 Lay the cabinet panels upside down on a clean, flat, level surface.
1.2 Attach Leg braces to cabinet using bolt and washer from hardware pack.
1.3 Loosely assemble the legs to cabinet panels.
1.4 Place lower board in dowel holes while attaching legs.
1.5 Do not tighten at this time. Very Carefully Turn table over.
STEP 2 ATTACH BEAMS
2.1 Attach beam bracket to cabinet using bolt from hardware pack
2.2 Place beams in beam brackets.
2.3 Use bolt, square washer, round washer and nut from hardware pack, loosely fasten beam to
beam bracket.
2.4 Using a square, pull the beam flush with the top of the cabinet while making sure the bottom of
the beam in resting fully on the brace.
2.5 Tighten beam to the bracket. (Note: Long beam must be flush or slightly below short cross
beams or slate will not set level on table.)
2.6 Starting in one corner tighten bolts connecting cabinet to leg. (Use a square to make sure the
panels are flush with the top of the leg.)
2.7 Attach Slate blocks to long panels using bolt and washer from hardware pack.
