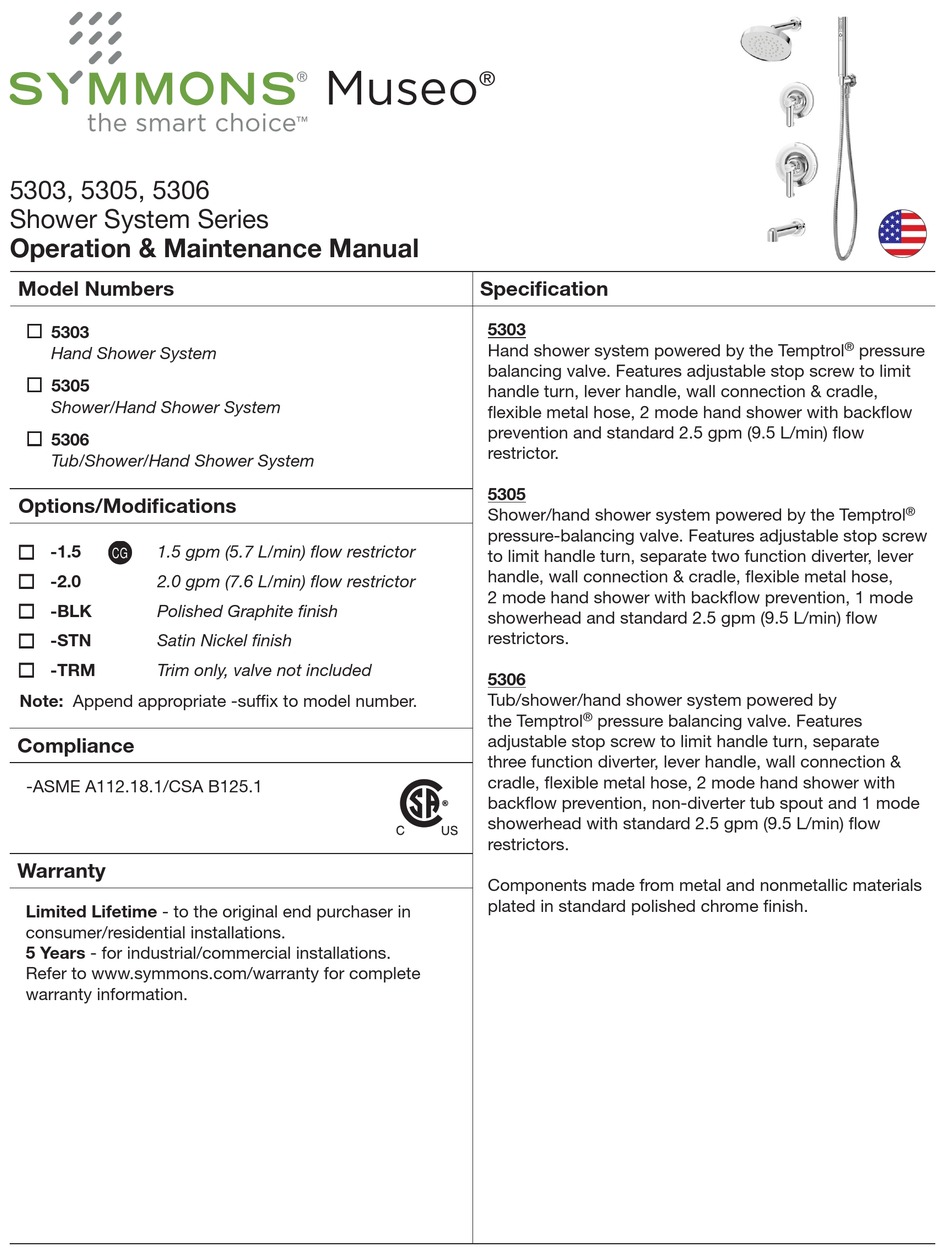

5303, 5305, 5306
Shower System Series
Operation & Maintenance Manual
Model Numbers
5303
Hand Shower System
5305
Shower/Hand Shower System
5306
Tub/Shower/Hand Shower System
Options/Modifications
-1.5
CG
1.5 gpm (5.7 L/min) flow restrictor
-2.0
2.0 gpm (7.6 L/min) flow restrictor
-BLK
Polished Graphite finish
-STN
Satin Nickel finish
-TRM
Trim only, valve not included
Note: Append appropriate -suffix to model number.
Compliance
-ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Museo
®
Specification
5303
Hand shower system powered by the Temptrol
balancing valve. Features adjustable stop screw to limit
handle turn, lever handle, wall connection & cradle,
flexible metal hose, 2 mode hand shower with backflow
prevention and standard 2.5 gpm (9.5 L/min) flow
restrictor.
5305

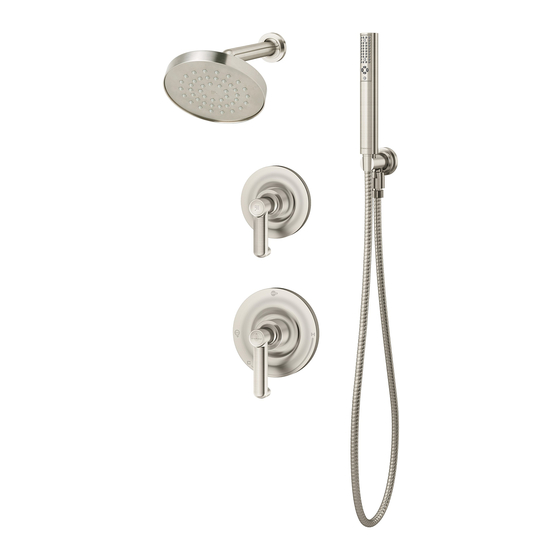

Shower/hand shower system powered by the Temptrol
pressure-balancing valve. Features adjustable stop screw
to limit handle turn, separate two function diverter, lever
handle, wall connection & cradle, flexible metal hose,
2 mode hand shower with backflow prevention, 1 mode
showerhead and standard 2.5 gpm (9.5 L/min) flow
restrictors.
5306
Tub/shower/hand shower system powered by
the Temptrol
adjustable stop screw to limit handle turn, separate
three function diverter, lever handle, wall connection &
cradle, flexible metal hose, 2 mode hand shower with
backflow prevention, non-diverter tub spout and 1 mode
showerhead with standard 2.5 gpm (9.5 L/min) flow
restrictors.
Components made from metal and nonmetallic materials
plated in standard polished chrome finish.
®
pressure balancing valve. Features
®
pressure
®
Advertisement
Table of Contents
Related Manuals for Symmons Museo 5303
Summary of Contents for Symmons Museo 5303
- Page 1 2.5 gpm (9.5 L/min) flow restrictors. Warranty Components made from metal and nonmetallic materials plated in standard polished chrome finish. Limited Lifetime - to the original end purchaser in consumer/residential installations. 5 Years - for industrial/commercial installations. Refer to www.symmons.com/warranty for complete warranty information.
- Page 2 Dimensions Measurements Ø 2", 51 mm 11-1/8", 283 mm Ø 2", 51 mm Male 1/2" IPS thread must protrude 3/8" from finished wall 6", 152 mm 77", 1956 mm Ø 6-1/4", 159 mm Ø 5", 127 mm Ref. 10", 254 mm 3-1/2", 89 mm Ø...
- Page 3 Parts Breakdown Replacement Parts Item Description Part Number Wall Cradle T-673 Shower Arm 532SA Showerhead 532SH Plug Button Star Washer Handle Insert T-667 Set Screw Diverter Handle Plug Button Star Washer Handle Insert T-665 Set Screw Shower Handle Dome Cover T-666 Escutcheon Mounting Screws...
- Page 4 Installation Note: 3) Attach shower escutcheon (O) to 5) Place handle insert (F) into handle For valve body installation, please large mounting plate (Q). (H/J). Install diverter handle (H) see valve body installation guides. (5305 and 5306 only) and shower handle (J) to valves.
- Page 5 Installation/Operation 7) Install tub spout (S) to pipe 10) Install showerhead (C) to shower Temperature Adjustment: fitting. Turn clockwise to secure. arm (B). Turn clockwise to tighten. 1) Turn shower handle counterclockwise approximately 1/4 turn to put valve in cold position.
- Page 6 For more information, go to www.P65Warnings.ca.gov. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2018 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3067 REV 0 080118...
