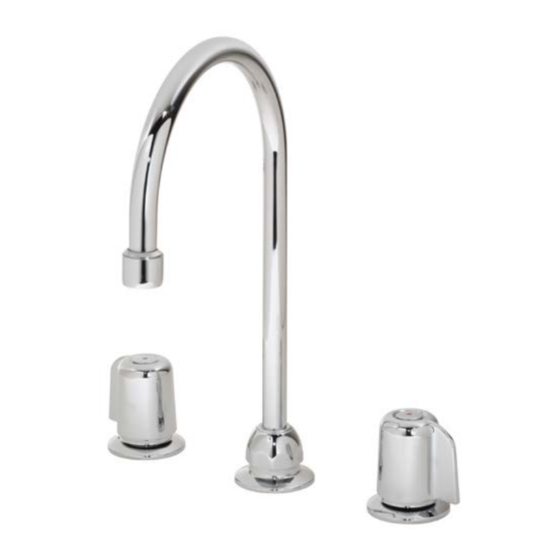

Symmons Origins S-254 Series Installation And Service Instructions

Lavatory Faucet
Installation and Service Instructions

INSTALLATION:

Caution: Be sure to turn off hot and cold water supplies
before installing or servicing faucet.
Push valve bodies through holes in sink from underneath. Make
1.
sure flange nuts and mounting washers are on underside of sink.
Valve with red striped hose (hot) is on the left and blue (cold) is on
the right. Put gasket (LN-129) over valve body. Thread escutcheon
(LN-128) onto valve body. The top of the valve spindle should
measure 1-7/8" from mounting surface (See rough in drawing).
2. Thread collar (LN-112 or LN-111) on to valve body until it reaches the
escutcheon (LN-128).
3. Standard or LWG handle installation: Place bushing (LN-115) on
valve spindle. Turn valves to off position (CR style: turn clockwise;
LWG, LCF, LPO, LAM, and standard style: turn hot clockwise,
turn cold counterclockwise). Place handle (LN-131) on bushing.
Thread screw (LN-146 or LN-121) into valve and push plug button
(T-33R and T-33B) into top of handle. CR, LCF, LPO and LAM
handle installation: Place handle on valve spindle and thread screw
(LN-121 or LN-134) into valve.
4. Tighten flange nuts and mounting washers from underneath sink and
secure with mounting screws if necessary.
5. Swivel spout option: Place spout assembly (LN-200) in centerbody
(LN-197). Thread nut (LN-199) onto centerbody (LN-197).
Rigid spout option: Thread screw (LN-205) into the bottom of the
spout assembly (LN-200). Place spout assembly (LN-200) in center

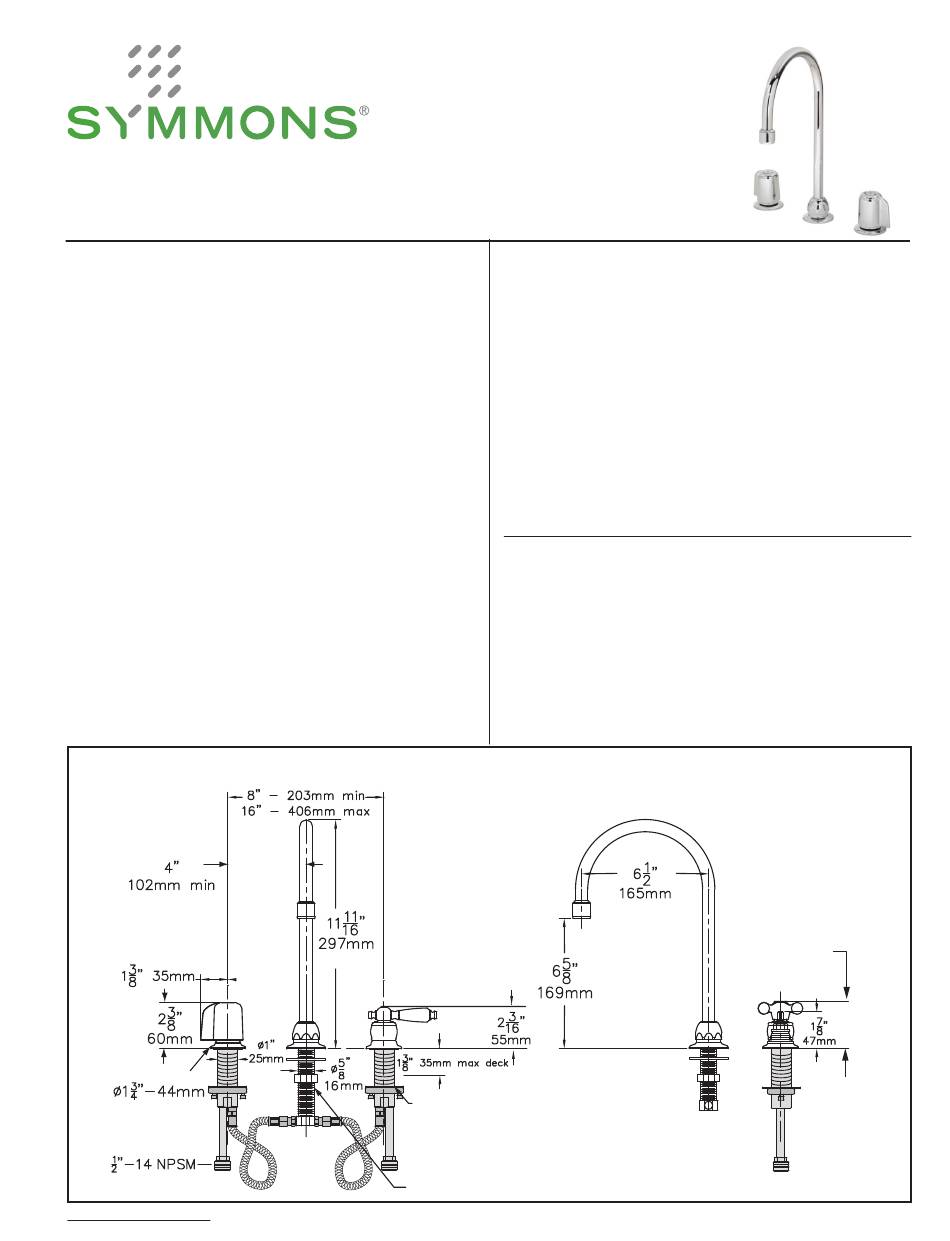

Dimensions
Origins, S-254, S-254-CR, S-254-LAM, S-254-LPO, S-254-LCF, S-254-LTM
S-254
standard
handle shown
Escutcheon
For California Residents
WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
Origins
S-254 Series
6. Drop assembled center body and spout through center hole of deck.
7. Thread tee (LN-189) onto the end of the center body (LN-197).
8. Connect hot supply to left tube and cold supply to right tube using
9. It is very important to thoroughly flush the supply lines to prevent
Cartridge Replacement (KN-113 or KN-114):
1. Remove plug button (T-33, T-33R or T-33B), loosen Philip head
2. Remove collars (LN-112) by turning counter clockwise, do not use
3. Place wrench on cartridge hex nut (KN-113, KN-114). Turn
4. Install new cartridge. Turn cartridge with wrench until cartridge
S-254-LAM
S-254-LPO
S-254-LCF
S-254-LTM
1-1/16" (27mm) min
1-7/16" (37mm) max
hole size
7/8" (22mm) min
1-3/8" (35mm) max
hole size
®
body (LN-197). Thread nut (LN-199) onto center body (LN-197).
Secure assembly to sink using nut (SPF-108) and washer (LN-138).
Thread flex hose adapters into tee using pipe sealant on the threads.
Attach flex hoses to flex hose adapters.
appropriate connectors.
foreign matter, i.e. copper chips, sand, stones, etc. from damaging
the sealing surfaces of cartridge. Remove aerator and open hot and
cold to full open then open both supplies. Let water run through
hot and cold long enough to flush supply lines thoroughly. Shut off
faucet and replace aerator. Check for leaks.
screw (LN-121) and remove handle, (LN-131 or LN 152).
wrench as this may damage the surface finish.
wrench counter clockwise until cartridge is removed.
does not turn easily then turn 1/4 to 1/2 turn further. Reassemble
handle in reverse fashion.
Note:
Dimensions subject to
change without notice.
S-254-CR handle
2-7/16
(61 mm)
