45-458-TRM, 45-460-TRM
Canterbury
Diverter Trim Series
™
Operation & Maintenance Manual
Model Numbers
45-458-TRM
45-460-TRM
Modifications
-STN
Satin nickel finish
Note: Append appropriate -suffix to model number.
Dimensions
Note: Dimensions are subject to change without notice.
Symmons Industries, Inc.
1
©2014 Symmons Industries, Inc.

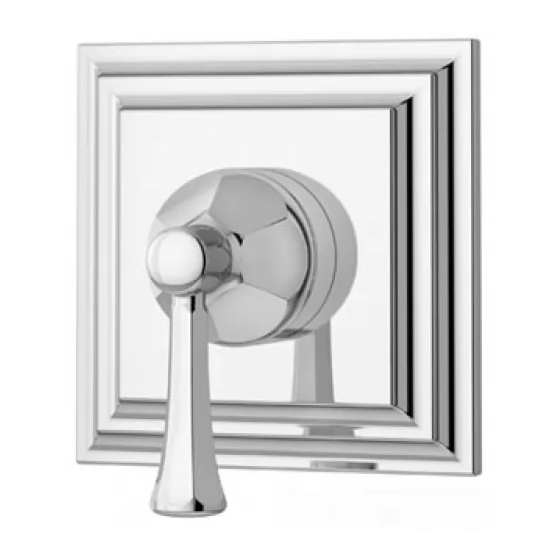

Canterbury Dual Outlet
Diverter Trim
Canterbury Triple Outlet
Diverter Trim
A A
B B
C C
■
31 Brooks Drive
■
www.symmons.com
Specifications
Dual and triple outlet diverter trim made from metal and
plastic materials plated in standard polished chrome
finish.
Compliance
-ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer installations.
5 Years - for commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
A
B
C
■
■
Braintree, MA 02184
(800)796-6667
■
gethelp@symmons.com
Measurements
5", 127 mm
2 3/4", 70 mm
4 3/4", 121 mm
■
Fax: (800)961-9621
■
ZV-3039 REV 0 01/15/2014
c
Advertisement
Table of Contents
Related Manuals for Symmons Canterbury 45-458-TRM
Summary of Contents for Symmons Canterbury 45-458-TRM
- Page 1 Warranty Limited Lifetime - to the original end purchaser in consumer installations. 5 Years - for commercial installations. Note: Append appropriate -suffix to model number. Refer to www.symmons.com/warranty for complete warranty information. Dimensions Measurements 5”, 127 mm 2 3/4”, 70 mm 4 3/4”, 121 mm...
- Page 2 Note: Append -STN to part number for satin nickel finish. Required for Installation Phillips head screwdriver ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 (800)796-6667 Fax: (800)961-9621 ■ ■ ■ ©2014 Symmons Industries, Inc. www.symmons.com gethelp@symmons.com ZV-3039 REV 0 01/15/2014...
- Page 3 1) Clean finished trim area with a soft cloth using mild soap and water or a non-abrasive cleaner and then quickly rinse with water. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 (800)796-6667 Fax: (800)961-9621 ■ ■ ■ ©2014 Symmons Industries, Inc. www.symmons.com gethelp@symmons.com ZV-3039 REV 0 01/15/2014...
