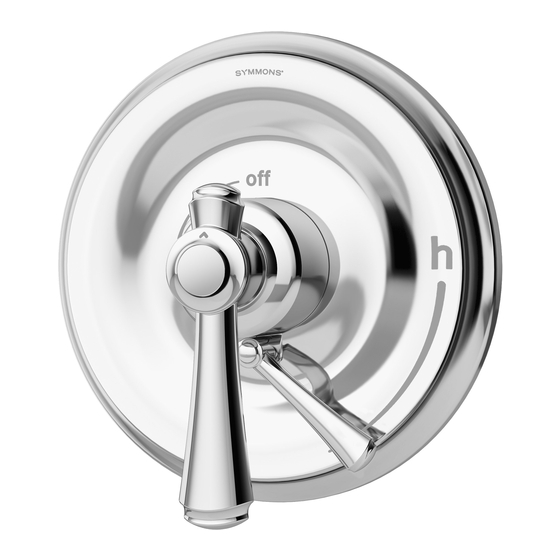

Symmons Degas Trim S-5400-TRM Installation & Operation Instructions

Symmons Degas Trim S-5400-TRM Installation & Operation Instructions

With ta-10 flow control spindle & t-12a cap assembly

Advertisement

Quick Links

Degas Trim Series
Degas Trim Series with TA-10 Flow Control Spindle & T-12A Cap Assembly
Installation & Operation Instructions
Model Numbers
TRIM ONLY
S-5400-TRM
Shower Valve Trim
S-5401-TRM
Shower Trim
S-5402-TRM
Tub/Shower Trim
S-5404-TRM
Tub/Hand Shower Trim
S5408TRM
Shower/Hand Shower Trim
Compliance
ASME A112.18.1/CSA B125.1
Warranty
Limited Lifetime - to the original end purchaser in
consumer/residential installations.
5 Years - for industrial/commercial installations.
Refer to www.symmons.com/warranty for complete
warranty information.
Go to www.symmons.com/register to register your
Symmons product.
Degas
TRIM, TA-10, T-12A
S5400TRMTC
Shower Valve Trim
S5401TRMTC
Shower Trim
S5402TRMTC
Tub/Shower Trim
S5404TRMTC
Tub/Hand Shower Trim
S5408TRMTC
Shower/Hand Shower Trim
T-12A
TA-10
®
S-5400-TRM
S5400TRMTC
S-5404-TRM
S5404TRMTC
S-5401-TRM
S-5402-TRM
S5401TRMTC
S5402TRMTC
S5408TRM
S5408TRMTC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Degas Trim S-5400-TRM and is the answer not in the manual?

Questions and answers

Summary of Contents for Symmons Degas Trim S-5400-TRM

  • Page 1 ASME A112.18.1/CSA B125.1 S-5404-TRM S5408TRM S5404TRMTC S5408TRMTC Warranty Limited Lifetime - to the original end purchaser in consumer/residential installations. 5 Years - for industrial/commercial installations. Refer to www.symmons.com/warranty for complete warranty information. Go to www.symmons.com/register to register your Symmons product.
  • Page 2 1. Recommended Tools FIGURE 1 Adjustable Wrench Allen Wrench (3mm) Drill Phillips Screwdriver Safety Glasses Thread Seal Tape 2. Dimensions Measurements FIGURE 2 12-1/8", 308 mm Ø 2-1/2", 64 mm Ø 2-1/2", 64 mm Male 1/2" IPS thread must protrude 3/8" from finished wall 6", 152 mm Ref.
  • Page 3 3. Parts Breakdown (Model Numbers Ending in TRMTC) Replacement Parts LIMIT STOP Item Description Part Number SCREW Cap Assy. T-12A Flow Control Spindle TA-10 IMPORTANT: Model numbers ending in TRMTC coordinate with Temptrol pressure balancing valves ordered with Test Cap. The Test Cap is used to allow pressurization of system.
  • Page 4 7. Parts Breakdown Replacement Parts FIGURE 7 Item Description Part Number Showerhead 511SH Shower Arm 522SA Plug Button Screw Star Washer T-694 Handle Insert Dome Cover RTS-085 Shower Escutcheon Screws RTS-022 Mounting Plate Diverter/Volume T-695-ASM Control Handle Tub Spout 542TS Hand Shower 462W Wall Cradle...
  • Page 5 8. Installation - Shower Valve Trim 1) Secure large mounting plate to Temptrol FIGURE 8.1 FIGURE 8.2 pressure balancing valve using mounting screws (FIGURE 8.1). 2) Place diverter/volume control handle into slot in shower escutcheon (FIGURE 8.2). 3) Secure large shower escutcheon to mounting plate. Guide handle into control port on valve body.
  • Page 6 10. Installation - Slide Bar Assembly 1) Install wall cradle to stub out pipe. Turn clockwise to FIGURE 10.1 FIGURE 10.2 tighten (FIGURE 10.1). 2) Verify washer has been inserted into vacuum breaker so as to form a tight face seal. Attach vacuum breaker to wall cradle.
  • Page 7 FIGURE 12.1 clockwise to divert to tub spout or other Symmons accessory. Turn diverter control handle counterclockwise to divert to shower or other Symmons accessory. TUB/ACCESSORY SHOWER/ACCESSORY 13. Operation (Volume Control) Turn volume control handle FIGURE 13.1 clockwise to increase volume.
  • Page 8 For more information, go to www.P65Warnings.ca.gov. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2020 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3409 REV 0 030220...
