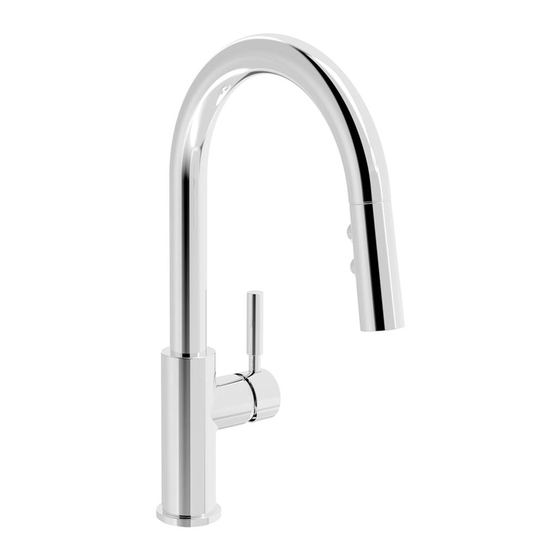

Single handle pull-down kitchen faucet

Advertisement

Quick Links

Single Handle Pull-Down Kitchen Faucet
Installation Instructions
Models: S-3510-PD-1.5 / CDSK0920-PD-1.5 / SK0920-PD-1.5
COMPLIANCE
ASME A112.18.1/CSA B125.1
NSF/ANSI 61.9, NSF/ANSI 372

IMPORTANT / FOR INSTALLER

WARNING:
As the installer of this faucet, you must first carefully read and understand the material covered in
this manual before installation. Leave this manual for the owner's or user's reference.
Water lines must be thoroughly flushed before and after installing the faucet to prevent foreign
matter i.e. copper chips, sand, stones, etc. from clogging and possibly damaging the sealing surfaces
of the cartridge.
LIFTIME LIMITED WARRANTY
All warranty claims MUST be pre-approved by Symmons.
All parts and finishes of the Symmons products are
warranted to the original consumer purchaser to be free
from manufacturing defects in material and workmanship
for 5 years Non-Residential or Commercial Applications.
Symmons warrants to the original consumer purchaser/
end-user that any Symmons product will be free of
defects in material and workmanship during normal
domestic use for the life of your home.
Symmons recommends using a professional plumber
for all installation and repair. During the warranty
period, Symmons at its sole option, will provide
replacement part(s) or product (or, if no longer available,
a comparable product) to replace those which have
proven defective in materials or workmanship under
normal installation, use and service, FREE OF CHARGE
for the time period of 5 years from the date of purchase.
(BATTERIES NOT INCLUDED)
This warranty is extensive in that it covers replacement of
all defective parts and even finish, but these are the only
two things that are covered. Damage due to installation
error, product abuse, product misuse, or use of cleaners
containing abrasives, alcohols, or other organic solvents,
whether performed by a contractor, Service Company
or yourself are excluded from this warranty. Symmons
will not be responsible for labor charges and/or damage
incurred in installation or repair or replacement, nor for
any indirect, incidental or consequential damages, losses,
injury or costs of any nature relating to the bathing

RECOMMENDED TOOLS

Adjustable Wrench
Dia
2.5mm Hex Key
Measuring Tape
®
products. Except provided by law, this warranty is in
lieu of and excluded all other warranties, conditions and
guarantees, whether expressed or otherwise, including
without restriction those of merchantability or of fitness
for use.
Some states do not allow the exclusion or limitation
of incidental or consequential damages, so the above
limitation of exclusion may not apply to you. This
warranty gives you specific legal rights, and you also may
have other rights which vary from state to state. This
warranty is not transferable. This warranty does not cover
damage or defects relating to misuse, abuse, negligence,
normal wear and tear, accident, acts of God, repairs or
alterations not authorized in writing by Symmons, or
improper installation, storage or handling.
The above mentioned warranty information includes each
product that falls under the following: Symmons Bathing
Products Warranty- Non-Residential or Commercial
Applications; Symmons Non-Electronic Lifetime
Faucet and Finish Limited Warranty Non-Residential or
Commercial Applications; Symmons Electronic Faucet
Limited Warranty - Non-Residential, Commercial and
Residential Applications; Symmons Bathing Products
Warranty- Residential Application Symmons Non-
Electronic Lifetime Faucet and Finish Limited Warranty
Residential Application
If you have any questions regarding technical support,
installation or concerns regarding our warranty plan,
please email us at GetHelp@symmons.com or call us at:
1-800-796-6667.
Phillips Head Screwdriver
Soft Jaw Pliers
1
Safety Glasses
Silicone
ZV-3253 REV A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dia S-3510-PD-1.5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Symmons Dia S-3510-PD-1.5

  • Page 1 Except provided by law, this warranty is in lieu of and excluded all other warranties, conditions and All parts and finishes of the Symmons products are guarantees, whether expressed or otherwise, including warranted to the original consumer purchaser to be free...
  • Page 2 DIMENSIONS AND MEASUREMENTS (2x) 4" (102mm) 3-5/8" (92mm) To Backsplash 2-3/4" Min. 4" 16" 16-5/16" (70mm) (102mm) (406mm) (414mm) 4-3/8" 8-3/8" (111mm) (213mm) 8-5/64" (205mm) Ø 2-1/8" 9-1/16" (54mm) (230mm) Deck Thickness Reference Max. 2-1/2" (64mm) Hole Size For Optional Deck Plate Min.
  • Page 3 FAUCET INSTALLATION 1. Mount Faucet Install faucet (A) and faucet flange (B) to deck surface. Optional Deck Plate: Assemble deck plate (C), gasket (D) and deck plate shanks (E). Place deck plate assembly onto three hole deck surface. Once deck plate is centered, hand tighten mounting nuts (F) to secure.
  • Page 4 FAUCET INSTALLATION 3. Connect Pull-Down Hose Attach quick disconnect adapter (B) to the pull-down hose adapter (A). Arrows on adapter ring must be aligned ADAPTER with quick disconnect release tabs for full RING engagement. Note: Press both quick disconnect release tabs to easily disconnect adapters.
  • Page 5 FAUCET INSTALLATION 5. Flush Supply Lines Remove wand (B) from pull-down hose fitting (A). With faucet handle in the off position, turn on supply outlets. Turn handle (C) slowly toward the hot position, then the cold position. Check for leaks, debris and foreign matter. After faucet supply lines have been flushed, install wand to pull-down hose fitting.
  • Page 6 SERVICE & MAINTENANCE 1. Remove Cartridge Remove lever (A) from handle hub (C) with soft jaw pliers as to avoid damaging finish on lever handle. Use 2.5mm hex key to remove set screw (B) from handle hub. Remove handle hub (C) from faucet. IMPORTANT: Soft jaw pliers must be used on lever handle to avoid damaging decorative finish.
  • Page 7 TROUBLESHOOTING CHART PROBLEM CAUSE SOLUTION Faucet no longer maintains Foreign matter such as copper Remove cartridge and inspect accurate temperature. chips, sand, stones, etc. clogging for debris. Replace cartridge if the cartridge ports and/or necessary. damaging the sealing surfaces of the cartridge.
  • Page 8 California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 ■ Phone: (800) 796-6667 Fax: (800) 961-9621 ■ symmons.com gethelp@symmons.com ■ Copyright © 2018 Symmons Industries, Inc. 181010 ZV-3253 REV A...

This manual is also suitable for:

Dia cdsk0920-pd-1.5Dia sk0920-pd-1.5
