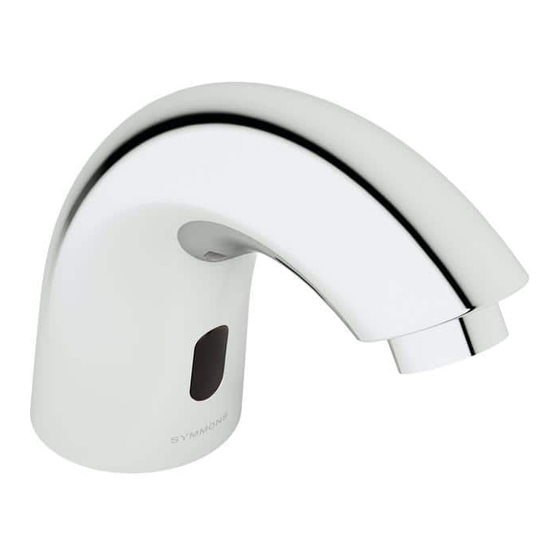

Symmons SENSOR FAUCET S6960B Installation And Maintenance Manual
Electronic lavatory faucet
Hide thumbs
Also See for SENSOR FAUCET S6960B:
- Operation and maintenance manual (5 pages) ,
- Installation and maintenance manual (19 pages)
Subscribe to Our Youtube Channel
Related Manuals for Symmons SENSOR FAUCET S6960B
Summary of Contents for Symmons SENSOR FAUCET S6960B
- Page 1 S6960B/E SENSOR FAUCET E L E C T R O N I C L A VAT O R Y F A U C E T I NSTALLAT ION A ND MAINT ENA NCE GU IDE I NSTALLAT ION A ND MAINT ENA NCE GU IDE...
-
Page 2: Technical Data
INDEX TECHNICAL DATA TECHNICAL DATA PACK CONTENTS PRE-INSTALLATION INFO INSTALLATION SETTINGS ADJUSTMENT BATTERY REPLACEMENT MAINTENANCE Filters cleaning instructions Care and cleaning of chrome and special finishes Solenoid valve servicing SPARE PARTS LIST Battery version, Ref: S6960B LIMITED WARRANTY Transformer version, Ref: S6960E TROUBLESHOOTING Power supply Battery box for 6X1.5V AA batteries or 9V transformer... -
Page 3: Pack Contents
PRE-INSTALLATION INFO PACK CONTENTS Familiarize yourself with the part names and confirm that the parts are included. CHECK CONTENTS Separate all parts from the packaging and check each part with the “Pack contents” section. Pay attention to the different models variations. Make sure all parts are accounted for before discarding any packaging material. -
Page 4: Installation
INSTALLATION INSTALLATION STEP 1 - REMOVE ALL MOUNTING HARDWARE STEP 3 – CONNECTING THE WATER SUPPLY Shut off water supply and remove the Fit the flexible pipe coming hexagonal nut, the disk and the gasket. Do from the faucet to the solenoid not remove the o-ring from the base of the O-ring valve housing. - Page 5 INSTALLATION INSTALLATION FOR S6960E: STEP 4 – CONNECTING THE POWER SOURCE a. Connect the waterproof Connect the waterproof connector coming from connector coming from the the electronic unit to the electronic unit to the solenoid transformer. FROM THE ELECTRONIC UNIT TO THE TRANSFORMER valve connector.
-
Page 6: Settings Adjustment
SETTINGS ADJUSTMENT SETTINGS ADJUSTMENT DELAY IN TIME: If required, the delay in time can also be modified as follows: Press the IN button. Wait until a quick flashing of the LED in the sensor eye is perceived. Then, press + to increase the delay in time and – to DETECTION reduce it. -
Page 7: Battery Replacement
BATTERY REPLACEMENT MAINTENANCE FILTER CLEANING INSTRUCTIONS This faucet is provided with one stainless steel filter preventing foreign particles to enter BATTERY MODELS ONLY the lines. It is recommended to clean the filter every six (6) months. If the water flow has When the battery weakens, the LED indicator light will blink at a constant rate when the user’s hands are decreased, this can be because the filter is clogged. -
Page 8: Limited Warranty
TROUBLESHOOTING PROBLEM INDICATOR CAUSE SOLUTION All parts and finishes of the Symmons products are warranted to the original consumer No water 1. Sensor flashes purchaser to be free from manufacturing defects in material and workmanship for 5 years coming out continuously Non-Residential or Commercial Applications. - Page 9 Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184-3804 1-800-796-6667 07.2020 01500500-A...
