Symmons Winslet SLS-5112 Installation Brief

Lavatory Faucet
Installation Brief
Model Number
SLS-5112............Single handle lavatory
faucet with pop-up drain
Applies to models manufactured
after Q1 2013, p/n LN-02057
identified on faucet rear base

Decorative Finishes

Append finish suffix code to replacement part
numbers when applicable
-STN Satin nickel finish
- Chrome (standard)

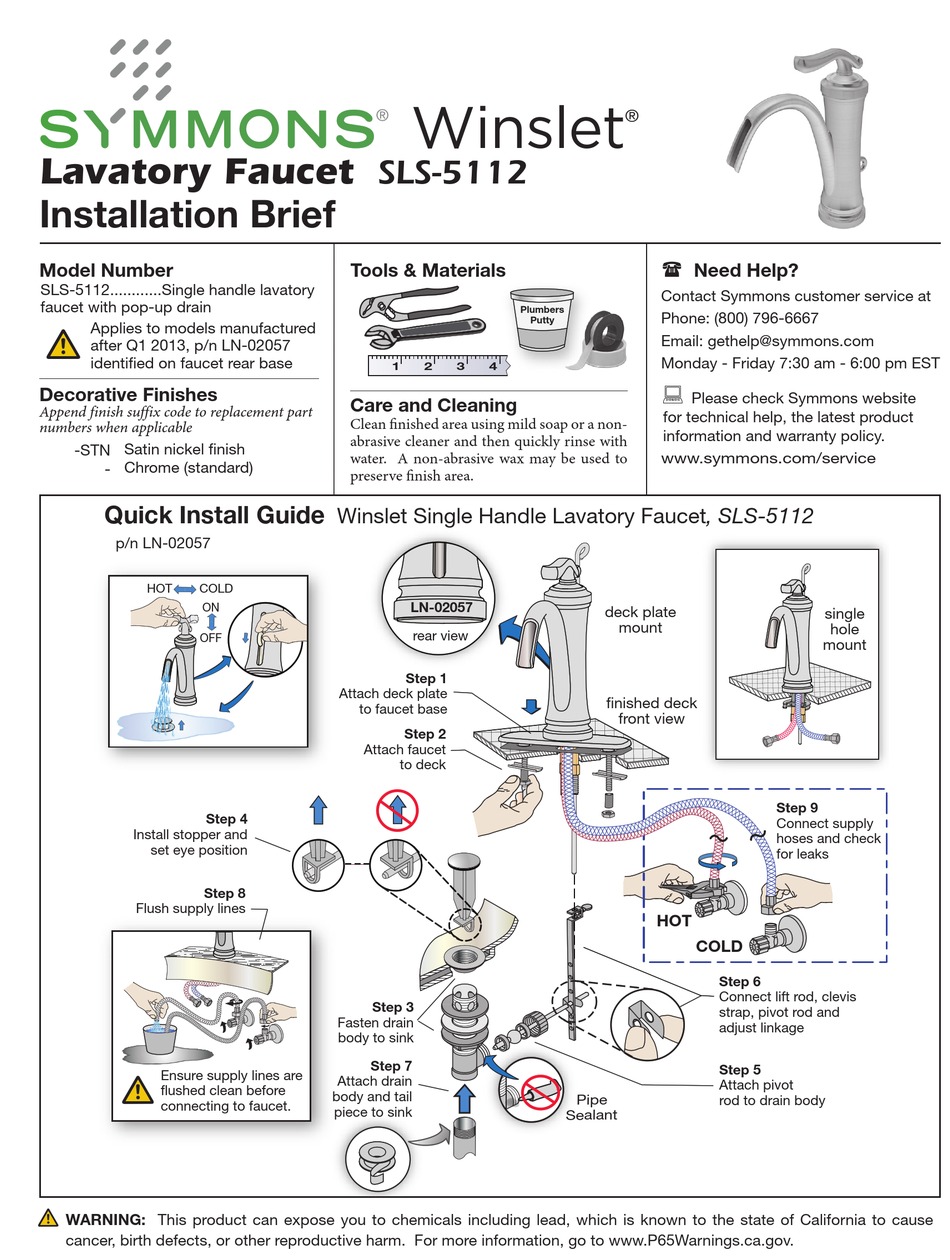

Quick Install Guide

p/n LN-02057
HOT COLD
ON
OFF
Step 4
Install stopper and
set eye position
Step 8
Flush supply lines
Ensure supply lines are
ushed clean before
connecting to faucet.
