- Page 1 User Manual PCE-RVI 6 viscometer User manuals in various languages (Deutsch, français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be downloaded here: www.pce-instruments.com Last change: 19 July 2018 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Contents Safety Notes ..................3 Specifications ..................4 Technical specifications ....................4 Delivery ..........................4 System Description................5 Device ..........................5 Preparation .................... 5 Operation ....................6 Measurement ........................6 Settings ..........................7 Print ..........................7 Warranty ....................8 Disposal ....................8 ©... -
Page 3: Safety Notes
Safety Notes Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Specifications
Dimensions 360 x 280 x 730 mm Weight 10 kg Delivery 1 x Krebs viscometer PCE-RVI 6 1 x spindle 1 x measuring cup (stainless steel) 1 x IR measuring cell below device head 1 x power plug 2 x stand for measuring cup... -
Page 5: System Description

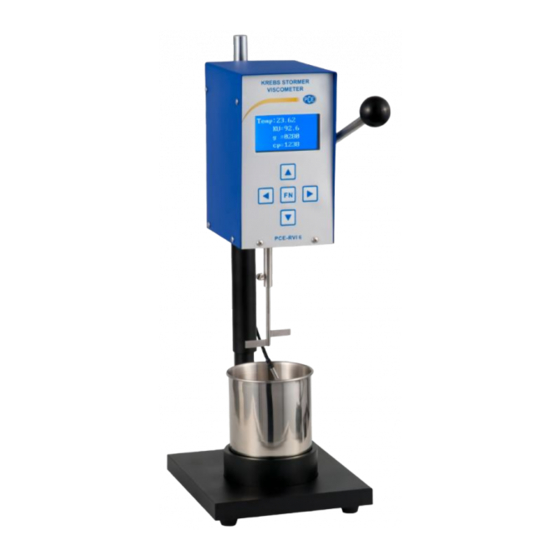

System Description Device Lever LCD display Control panel Spindle Measuring cup Stand ON / OFF switch Connection mains adaptor RS-232 interface 10. IR measuring cell Preparation • Take the instrument out of the box and place it on an even surface. •... -
Page 6: Operation
Operation Press the on / off switch on the back panel of the viscometer to turn it on. After switching on, the device performs a self-calibration, which lasts for about 10 seconds (spindle rotates). Meanwhile, the serial number is shown on the display. ATTENTION: Make sure that the motor unit is in the highest position when switching on the device and that the impeller can rotate freely and is not in the sample. -
Page 7: Settings
Settings 5.2.1 Language settings Press the ▼ button to go to the language settings. Here you have a choice between English and Chinese menu language. Select the desired option with the ► button and hold the "FN" button to save the selection. In order to exit from the screen and return to the main screen, press the ◄... -
Page 8: Warranty
Warranty You can read our warranty terms in our General Business Terms which you can find here: https://www.pce-instruments.com/english/terms. Disposal For the disposal of batteries in the EU, the 2006/66/EC directive of the European Parliament applies. Due to the contained pollutants, batteries must not be disposed of as household waste. They must be given to collection points designed for that purpose. - Page 9 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 4 76, Rue de la Plaine des Bouchers Calle Mayor, 53 D-59872 Meschede 67100 Strasbourg 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17 Tel.
