SPEEDLAN 4100 & 4200 Installation and Operation User Guide

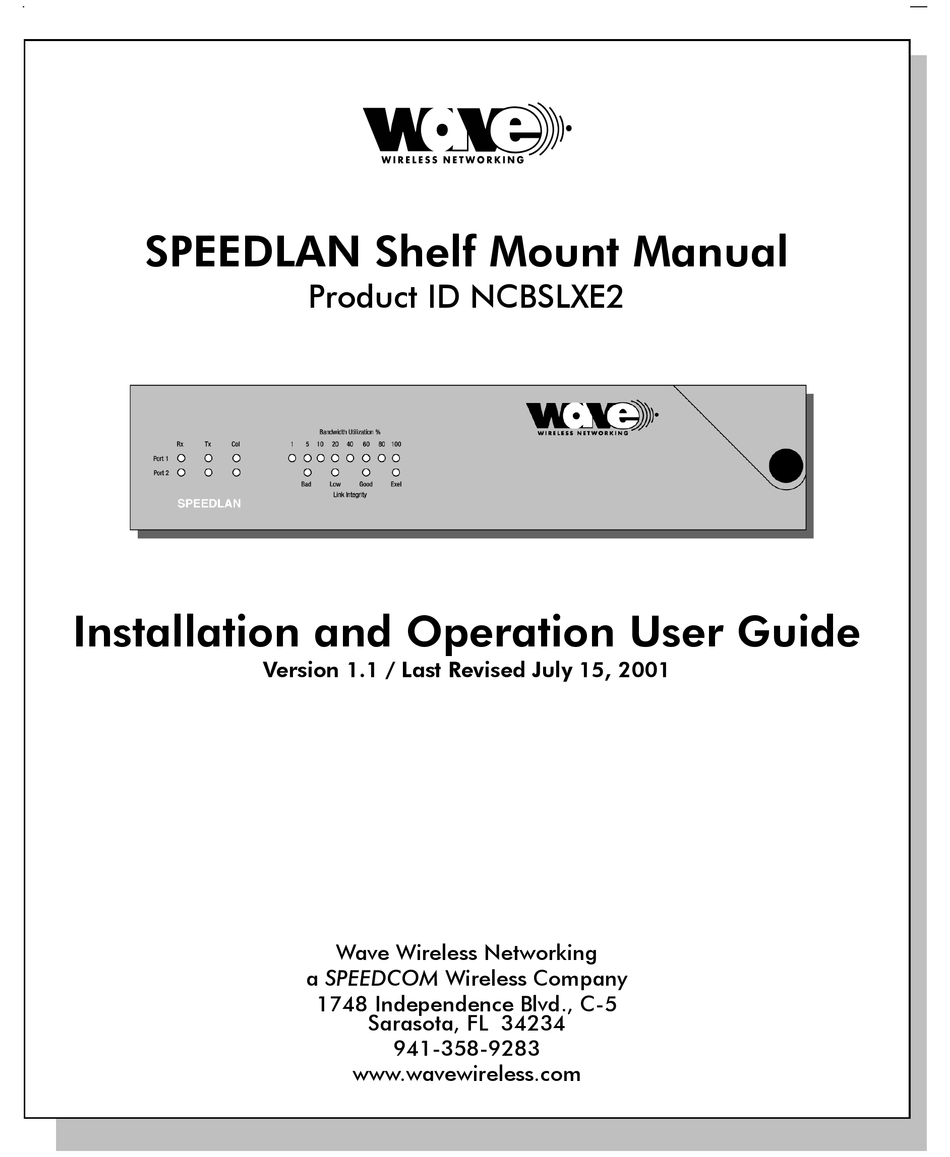

SPEEDLAN Shelf Mount Manual
Product ID NCBSLXE2
Installation and Operation User Guide
Version 1.0 / Last Revised August, 2000
Version 1.1 / Last Revised July 15, 2001
Wave Wireless Networking
a SPEEDCOM Wireless Company
1748 Independence Blvd. C-5
Sarasota, FL 34234
Wave Wireless Networking
941-358-9283
a SPEEDCOM Wireless Company
www.speedlan.com
1748 Independence Blvd., C-5
Sarasota, FL 34234
941-358-9283
www.wavewireless.com
-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NCBSLXE2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wave NCBSLXE2

  • Page 1 SPEEDLAN 4100 & 4200 Installation and Operation User Guide SPEEDLAN Shelf Mount Manual Product ID NCBSLXE2 Installation and Operation User Guide Version 1.0 / Last Revised August, 2000 Version 1.1 / Last Revised July 15, 2001 Wave Wireless Networking a SPEEDCOM Wireless Company 1748 Independence Blvd.
  • Page 2 SPEEDLAN Shelf Mount Manual. Copyright ©2000.Wave Wireless Networking, a SPEEDCOM Wireless Company. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission Wave Wireless, a SPEEDCOM Wire- less Company.

  • Page 3: Table Of Contents

    SPEEDLAN Installation and Operation User Guide Chapter 1 - Introduction .................. 1-1 Features and Benefits .........................1-2 Transparent Ethernet Bridging with Advanced Filtering for Security and Network Reliability ..1-2 IP Routing with Advanced Filtering for Security...............1-3 SNMP Management......................1-3 Wireless Multipoint Protocol ....................1-3 ISP Functionality .........................1-3 Features ...........................1-4 SNMP Features........................1-4...
  • Page 4 SPEEDLAN Installation and Operation User Guide Chapter 5 - Configuring SPEEDLAN ............. 5-1 General Setup ...........................5-2 Interface & Advanced Interface Setup..................5-5 Interface Setup ........................5-5 Advanced Interface Setup ....................5-6 The Setup Buttons ........................5-6 Setup 1 Button - Ethernet Setup....................5-6 Setup 2 Button - 11 Mb RF Interface Setup ................5-7 Transport Methods ......................5-8 Advanced Button - 11 Mb RF Interface Setup...............5-10 Frequency Button - 11 Mb Frequency Setup ..............5-11...
  • Page 5 SPEEDLAN Installation and Operation User Guide Chapter 8 - IP-Router Setup ................8-1 IP Routing Setup.........................8-2 Add/Direct Button.......................8-3 Add/Indirect Button......................8-4 More Button - RIP Routing ....................8-5 Chapter 9 - SNMP Setup .................. 9-1 SNMP Setup ..........................9-2 Chapter 10 - System Access Setup .............. 10-1 System Access Setup.........................10-2 Chapter 11 - SNMP Monitoring ..............
  • Page 6 SPEEDLAN Installation and Operation User Guide Appendixes..................Appendix-1 Appendix A ..................Appendix A-1 Common Ethernet Protocols.................... Appendix-2 Common Ethernet Vendor Addresses ................Appendix-6 Common Ethernet Multicast Addresses................Appendix-26 Common Ethernet Broadcast Addresses ................. Appendix-29 Appendix B ..................Appendix B-1 Startup LED Patterns ....................Appendix B-2 Index......................

  • Page 7: Chapter 1 Introduction

    Chapter 1 Introduction What’s New in This Manual? All references formely known as "CampusPRC" are now • refered to as "SectorPRC." SPEEDLAN products include the silver 64-bit encryption • card and the gold 128-bit encryption card. For more information, see Security Button - 11 Mb RF Security Setup, page 5-12.

  • Page 8: Features And Benefits

    SPEEDLAN Installation and Operation User Guide Features and Benefits The SPEEDLAN shelfmount products are high performance 11 MB wireless bridges that create interconnectivity between buildings and provide an alternative to Telco leased and fiber optic lines. The SPEEDLAN shelfmount bridges present unparalleled performance and features for any organization needing high-speed connectivity between enterprise LAN-to-LAN applications such as school or campus network connections, banking, manufacturing, hospitals and clinics.

  • Page 9: Ip Routing With Advanced Filtering For Security

    SPEEDLAN Installation and Operation User Guide IP Routing with Advanced Filtering for Security The SPEEDLAN brouters support IP Routing in addition to bridging. It can be used to add routing capability when an IP router may be a more appropriate choice. SNMP Management SNMP wireless and wired link management may be administered from any Ethernet network or remotely from the Internet.

  • Page 10: Features

    SPEEDLAN Installation and Operation User Guide Features 10/100BASE-T Ethernet Interface • SPEEDLAN 11 Mb Wireless Radio Interface • Bridging Features • Protocol Transparent Bridging • IP Routing • Filtering by Ethernet Multicast, Broadcast and Bad Packets • Filtering by Protocol •...

  • Page 11: Ip-Router Features

    SPEEDLAN Installation and Operation User Guide bridges, so you can use SNMP to monitor a number of SPEEDLAN brouter parameters, including RF- signal quality and noise level. IP-Router Features IP Static Routing with Direct and Static Routes • ICMP Messages, Default Router, and Subnet Support •...
  • Page 12 SPEEDLAN Installation and Operation User Guide Notes:___________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ Introduction...

  • Page 13: Chapter 2 Quick Start

    Chapter 2 Quick Start...

  • Page 14: System Description

    SPEEDLAN Installation and Operation User Guide System Description The SPEEDLAN brouters are high speed, long range wireless LAN brouters that provide connectivity to remote Ethernet networks. For single point-to-point links, a SPEEDLAN CPE can be used in each building to create a wireless communication line. For multipoint links, a SPEEDLAN acts as the central base station, which controls the communication between multiple SPEEDLAN brouters acting as CPE.

  • Page 15: Installation Steps

    (and amplifier) kit. If you do not have an item included in the instructions below, contact Wave Wireless. If you are having trouble and need a full site installation, contact Wave Wireless Networking for services and fees. To install the SPEEDLAN, do the following: Step 1.
  • Page 16 SPEEDLAN Installation and Operation User Guide b) Allow for as much space between the wall brackets as possible while still maintaining the antenna height necessary. For extended poles, additional wall brackets may be necessary. c) Assemble the antenna and mount it to the pole using the included U-bolt hardware. On larger dish-type antennas, align the grid on the dish to run parallel with the grid on the tip of the antenna horn.
  • Page 17 SPEEDLAN Installation and Operation User Guide Step 4. Ground the Antenna a) Mount the lightning arrestor to a solid surface. b) Run the grounding wire from the lightning arrestor to a proper ground source such as a grounding rod or roof ground wire. c) Seal the entire lightning arrestor with the black waterproof sealant insulation putty that comes in the installation kit.
  • Page 18 SPEEDLAN Installation and Operation User Guide Step 8. Check Functionality Using the LED Indicators. When the installation is complete, activate the SPEEDLAN brouter. The radio will automatically transmit a “hello” packet to the other brouter(s) to initiate communication. When a remote brouter is located, the brouters will synchronize themselves with each other once communication is established.

  • Page 19: Installation Diagram

    SPEEDLAN Installation and Operation User Guide Installation Diagram The diagram below displays where the main components are located. All outdoor cable connections and lightning arrestors must be insulated with waterproof electrical putty. Quick Start...

  • Page 20: Polarizations On A Grid Antenna

    SPEEDLAN Installation and Operation User Guide Polarizations on a Grid Antenna The antenna must be aimed so that when you look out from the center of the antenna it is pointing toward the receiving antenna on the other building. The radio signal radiates from the end of the antenna like a wide-beamed flashlight.

  • Page 21: Chapter 3 Hardware

    Chapter 3 Hardware...

  • Page 22: Drawings Of Components

    SPEEDLAN Installation and Operation User Guide Drawings of Components SPEEDLAN Front Panel Transmitting Blinking Receiving Light Blinking Light Ports: Collision Forwarding Rate/Bandwidth Utilization Port 1: Wireless Blinking Interface Light Power Button Port 2: 10/100 Base-T LAN Interface Transmission Quality • This light will blink whenever a packet is received on the related interface •...

  • Page 23: Speedlan Back Panel

    SPEEDLAN Installation and Operation User Guide SPEEDLAN Back Panel Screws Warning Do not connect units back-to-back SPEEDLAN without RF signal attenuation. 1) This device may not cause harmful interference. 2) This device must accept any interference that may cause undesired operation. RF Cable Factory Ethernet...

  • Page 24: Restoring Factory Default Settings On The Speedlan

    SPEEDLAN Installation and Operation User Guide Restoring Factory Default Settings on the SPEEDLAN To restore the factory default settings on the brouter, do the following: Turn off the SPEEDLAN unit. Connect the PC to the brouter using a crossover Ethernet cable or using 2 Straight-through cables and a hub.
  • Page 25 Next a menu will appear requesting a MAC Address, as well as a Passkey. You can only receive these from Wave Wireless. You will enter these two variables and click the OK but- ton. There will be a sequence of dialog boxes, which will warn you that you are about to reload the Flash ROM with a new .Bin file.
  • Page 26 SPEEDLAN Installation and Operation User Guide Notes:___________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ Hardware...

  • Page 27: Chapter 4 - Overview Of Configurator

    Chapter 4 Overview of Configurator...

  • Page 28: Installation And Setup

    SPEEDLAN Installation and Operation User Guide Installation and Setup Windows 95/98/NT 4.0 SPEEDLAN Configurator To install the SPEEDLAN Configurator, do the following: Shut down all programs and applications. Note: The SPEEDLAN Configurator uses library files, which reside on your Windows 95/98/ NT 4.0 PC.

  • Page 29: Configuring A Saved Configuration File

    SPEEDLAN Installation and Operation User Guide Turning off the brouter, or otherwise interrupting the reprogramming of the Flash ROM, can damage the programming of the brouter, and render it inoperable. Note: Anytime you make changes in Frequency, IP Routing, or Network ID, start with the brouter furthest away from your current location.

  • Page 30: The Toolbar

    SPEEDLAN Installation and Operation User Guide The Toolbar Open Help Open Save Remote Select Save Device Upload Remote System Software Information Note: The functions on the toolbar can also be accessed from the menus on the Configurator (i.e., Save can be accessed from the File menu). The Menu Bar The File Menu - This is the most common menu and is used to perform the following •...

  • Page 31: Quick Overview Of Other Menus

    SPEEDLAN Installation and Operation User Guide Quick Overview of Other Menus View Menu - This menu is used to change the display of the Configurator's various items. • Setup Menu - This menu is used to modify all aspects of the brouter. •...
  • Page 32 SPEEDLAN Installation and Operation User Guide Notes:___________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ Overview of Configurator...

  • Page 33: Chapter 5 Configuring Speedlan

    Chapter 5 Configuring SPEEDLAN...

  • Page 34: General Setup

    SPEEDLAN Installation and Operation User Guide General Setup This dialog box activates the features to configure your brouters. To select this dialog box, choose General Setup from the Setup menu of the SPEEDLAN Configurator. Select the appropriate check boxes as described below: Enable Bridging •...
  • Page 35 IP packets and sent to other brouters (purchased from Wave Wireless) for de-encapsulation. This method can be used to setup virtual Ethernet LANs between several points using an IP network as the transport layer.
  • Page 36 SPEEDLAN Installation and Operation User Guide *Enable Incoming Network Address Translation • This option enables a company to unmap public network IP addresses into network IP addresses. For more information, see Part III - Setting Up NAT, page 7-20. *Enable DHCP Server •...

  • Page 37: Interface & Advanced Interface Setup

    SPEEDLAN Installation and Operation User Guide Interface & Advanced Interface Setup Interface Setup To set up the basic interface, choose Interface Setup from the Setup menu on the SPEEDLAN Configurator. The interfaces that are installed in your brouter will be represented on this dialog box. The Remote check box is used to designate which interfaces will be considered local and remote.

  • Page 38: Advanced Interface Setup

    Setup and Advanced Interface Setup. Max Tx Rate is useful to ISPs that want to regulate the maximum bandwidth provided to each customer. These settings should not be changed without the assistance of a Wave Wireless Networking Technical Support Engineer. The Setup Buttons...

  • Page 39: Setup 2 Button - 11 Mb Rf Interface Setup

    SPEEDLAN Installation and Operation User Guide Clicking the Setup buttons (1 and 2) on the Interface & Advanced Interface Setup dialog box will open the Setup dialog box (for the interface selected). Setup 2 Button - 11 Mb RF Interface Setup To modify the 11 Mb RF Interface Setup, click the Setup 2 button on the Interface Setup or Advanced Interface Setup dialog box.

  • Page 40: Transport Methods

    This actually controls the "Link Integrity" lights on the front panel of the brouter, and it is turned ON by default. Wave Wireless highly recommends that you leave it enabled. Transport Methods The industry compatible method of transmitting and receiving data over wireless networks will cause data packets to frequently be lost.
  • Page 41 SPEEDLAN Installation and Operation User Guide Campus Cell PRC Mode (No Base Station/Brouter) • This method of transportation is used only for point-to-point links. If any of the brouters are unable to see each other, a base station must be used to repeat traffic from one brouter to next brouter in line.

  • Page 42: Advanced Button - 11 Mb Rf Interface Setup

    SPEEDLAN Installation and Operation User Guide Advanced Button - 11 Mb RF Interface Setup The Advanced button is located to the left of the Frequency button. Clicking this button will open a new dialog box that allows you to change the Network ID and rate of the interface. Network ID •...

  • Page 43: Frequency Button - 11 Mb Frequency Setup

    SPEEDLAN Installation and Operation User Guide Standard • This setting limits the card by providing 2 Mbps of bandwidth. The receiver sensitivity of the radio with this setting is -89 dBm. • This setting limits the card by providing 1 Mbps of bandwidth. The receiver sensitivity of the radio with this setting is -92 dBm.

  • Page 44: Security Button - 11 Mb Rf Security Setup

    SPEEDLAN Installation and Operation User Guide Security Button - 11 Mb RF Security Setup The Security button is located to the right of the Frequency button. Clicking this button will open a new dialog box that allows you to change the security options of the interface. These settings are used to encrypt data that will be transmitted by the 11 Mb RF port and also to decrypt data that is received by 11 Mb RF port.
  • Page 45 SPEEDLAN Installation and Operation User Guide Warning: This setting must be set to the same value for the brouters that will be communicating together. Failure to set them to the same value will prevent any communications from taking place. For example, in order to use a multipoint link, you must use the same Encryption setting on the base station and on the CPE brouter.
  • Page 46 SPEEDLAN Installation and Operation User Guide Notes:___________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ 5-14 Configuring SPEEDLAN...

  • Page 47: Chapter 6 Bridging Setup

    Chapter 6 Bridging Setup...

  • Page 48: Bridge Setup

    SPEEDLAN Installation and Operation User Guide Bridge Setup Each SPEEDLAN brouter contains an IEEE 802.3 MAC-layer bridging engine. The bridge can be configured to filter or pass any 802.3 frame type protocols, including Novell IPX, TCP/IP , AppleTalk, etc. The brouter can also be configured to filter packets by their destination and origin. This is done using the unique MAC (Media Access Control) addresses that all network interface devices have assigned to them at the factory.

  • Page 49: Protocol Filtering

    SPEEDLAN Installation and Operation User Guide Protocol Filtering By default, the brouter is configured to pass all network protocols. When you click Edit, you will be presented with a list of protocols which you can select for filtering. After selecting the protocols, highlight them on this dialog box.

  • Page 50: Mac Filtering

    SPEEDLAN Installation and Operation User Guide If the protocol you want to filter is not presented here, click Custom, Add and enter the hex ID for that protocol. MAC Filtering By default, the brouter is configured to pass all traffic between all MAC-Address pairs. To add an address pair into the filter, click Add on the MAC Filtering box.

  • Page 51: Advanced Features Button

    SPEEDLAN Installation and Operation User Guide Advanced Features Button Clicking Advanced displays this dialog box. Select the appropriate check box for your network. The check boxes are described below: Pass Bad Ethernet Source • The standard Ethernet bridges we have tested will pass Ethernet packets with a broadcast or multicast address as their source (i.e., packets with their first bit set to 1).
  • Page 52 SPEEDLAN Installation and Operation User Guide Enable Learned-Table Lockdown • A standard bridge watches the source address of each packet it receives on any of its interfaces. As new addresses are seen, entries are added to the learned table that con- tains each source address and the interface number that address was received on.

  • Page 53: Storm Thresholds Button

    SPEEDLAN Installation and Operation User Guide Storm Thresholds Button Click Storm Thresholds to keep broadcast and multicast storms from spreading throughout the network. Network storms are common and can cause bridges, routers (brouters), workstations, servers, and PCs to slow down or crash. Storms occur if network equipment is configured incorrectly, if network software is not functioning properly, or if poorly designed programs such as network games are used.

  • Page 54: Tunnel Partners Button

    Encrypt Bridge Tunnel Packets • If purchased, a brouter (from Wave Wireless) may contain a special software-encryption algorithm that is distinct from the optional SPEEDLAN encryption chip on the brouter. If Data Encryption is enabled on the General Setup dialog box and if an Encryption Key is set up in the Data Encryption menu, enabling encryption here will cause all Ethernet packets transmitted to tunnel partners to be encrypted and encapsulated inside IP packets.
  • Page 55 SPEEDLAN Installation and Operation User Guide G en eric E th e rn e t T u n n e lin g (T h ro u g h an IP N e tw o rk) The three brouters are set up to tunnel one S ta nd ard E th erne t P a c ke t or more protocols and each is a tunnel L A N A...
  • Page 56 SPEEDLAN Installation and Operation User Guide Notes:___________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ 6-10 Bridging Setup...

  • Page 57: Chapter 7 - Setting Up The Ip Addresses (Ip Host Setup)

    Chapter 7 Setting Up the IP Addresses (IP Host Setup)

  • Page 58: Part I - Quick Overview Of Ip Addressing

    SPEEDLAN Installation and Operation User Guide If you do not understand the basics of IP addressing, DHCP , or NAT, please read the next section, Part I - Quick Overview of IP Addressing, below. Otherwise, skip to Part II - Setting Up the IP Address, page 7-13.

  • Page 59: Internet Address Classes

    SPEEDLAN Installation and Operation User Guide Internet Address Classes The first octet defines the "class" of the address, which is the only method to tell the size of the network (how big) and where the internet address belongs. There are three main classes: Class A: 35.0.0.0 •...

  • Page 60: In Fact, Ip Defines Five Classes

    SPEEDLAN Installation and Operation User Guide In fact, IP defines five classes: Class A addresses use 8 bits (1 octet) for the network portion and 24 bits (3 octets) for the • node (or host) section of the address. This provides up to 128 networks with 16.7 million nodes for each network.

  • Page 61: Subnetting A Network

    SPEEDLAN Installation and Operation User Guide Class D • Range is 224.0.0.0 to 239.255.255.255 • Used for multicast packets (i.e., host sends out router discovery packets to learn all of • the routers on the network) Class E • Range is 240.0.0.0 to 255.255.255.255 •...

  • Page 62: What Is A Subnet

    SPEEDLAN Installation and Operation User Guide Default Subnet masks Class A: 255.0.0.0 • Class B: 255.255.0.0 • Class C: 255.255.255.0 • Note: Subnet mask is bolded. What is a Subnet? Subnetting allows you to create multiple networks within one Class A, B, or C network. Each data link (octet) contains its own unique identifier also known as the subnet.

  • Page 63: Diagram Of Subnetting A Network

    SPEEDLAN Installation and Operation User Guide Diagram of Subnetting a Network Internet Subnet B Subnet A IP Address: 195.172.3.64 IP Address: 195.172.3.1 Subnet Mask: 255.255.255.192 Subnet Mask: 255.255.255.192 Router D Com puter Com puter Com puter Computer Com puter Long Street Router A Router B Subnet D...

  • Page 64: How Does A Network Administrator Assign An Ip Address

    SPEEDLAN Installation and Operation User Guide Note: If the network is managed by a Simple Network Management Protocol for local or Internet access, each brouter must contain a unique IP Address. This is a benefit of static or dynamic addressing. How does a network administrator assign an IP address? IP addresses are supplied by the network administrator, the ISP , or hosting company.

  • Page 65: Figure Of Dhcp Addressing

    SPEEDLAN Installation and Operation User Guide Servers that utilize DHCP resolve security issues, costly IP addressing services, and compatibility problems. DHCP is an alternative to BOOTP , which reduces the agony of assigning static IP addresses and also provides advanced configuration options. Note: The figure on the next page may help you understand how DHCP assigns an IP address.

  • Page 66: What Is Nat

    SPEEDLAN Installation and Operation User Guide What is NAT? Network Address Translation (NAT) is the conversion of an Internet Protocol address (IP address) used within one network to a different IP address within another network. One network is designated the inside network and the other is the outside network. Network Address Translation (NAT) occurs when there is a translation among an Internet Protocol (IP address) used within one network (designated as inside network) to a different IP addresses within another network (designated as outside network).

  • Page 67: Diagram Of Outgoing Nat

    SPEEDLAN Installation and Operation User Guide Diagram of Outgoing NAT Inbound Port 80 request is re-addressed to Private address 10.0.0.3. Then, it is Public Address on Remote Interface forwarded across the private network 204.101.20.3 SPEEDLAN SPEEDLAN Brouter A Brouter B 204.101.20.2 Private Address on Local Interface 10.0.0.1...

  • Page 68: Diagram Of Incoming Nat

    SPEEDLAN Installation and Operation User Guide Diagram of Incoming NAT Inbound Port 80 request is re-addressed to Private address 10.0.0.3. Then, it is Public Address on Remote Interface forwarded across the private network 204.101.20.3 SPEEDLAN SPEEDLAN Brouter B Brouter A Private Address on Local Interface 10.0.0.1 10.0.0.4...

  • Page 69: Part Ii - Setting Up The Ip Address

    SPEEDLAN Installation and Operation User Guide Part II - Setting Up the IP Address The following section discusses DHCP client (and interface), DHCP Server, Static IP addresses, and Outgoing and Incoming NAT. Note: Before you begin, confirm that you have properly read the configuration from the SPEEDLAN brouter you want to configure.

  • Page 70: Enabling The Dhcp Client And Choosing The Appropriate Interface

    SPEEDLAN Installation and Operation User Guide Enabling the DHCP Client and Choosing the Appropriate Interface Note: Before you begin, confirm that you have properly read the configuration from the SPEEDLAN brouter you want to configure. Then, perform the following tasks: Open the SPEEDLAN Configurator.

  • Page 71: Enabling The Dhcp Server On The Speedlan

    SPEEDLAN Installation and Operation User Guide Enabling the DHCP Server on the SPEEDLAN Note: Before you begin, confirm that you have properly read the configuration from the SPEEDLAN brouter you want to configure. Then, perform the following tasks: Open the SPEEDLAN Configurator.
  • Page 72 SPEEDLAN Installation and Operation User Guide Enable Outgoing Network Address Translation • This feature enables a company to map the private networks IP addresses into one or more global public network IP addresses. This means that outsiders will only view the single (or more if designated) IP network address assigned for global viewing on the Internet.
  • Page 73 SPEEDLAN Installation and Operation User Guide Offered IP Ending Address • This is the end of the block of allowed IP addresses. Default Router Address • This is the subnet mask of the default router. Default Router Mask • This is the router that initially accepts or transfers packet to the directly connected net- works or static networks.

  • Page 74: Assigning A Static Ip Address

    SPEEDLAN Installation and Operation User Guide Assigning a Static IP Address Note: Before you begin, confirm that you have properly read the configuration from the SPEEDLAN brouter you want to configure. Then, perform the following tasks: Open the SPEEDLAN Configurator. From the File menu, choose Open Remote Config..Then, click Scan.
  • Page 75 SPEEDLAN Installation and Operation User Guide Note: For more information, see Subnetting a Network, page 7-5. Once the packet has traveled to the appropriate network, it goes through a masking process. A subnet mask is composed of zeros (0s) and ones (1s). This tells the router which addresses to look under and which ones not to look under.

  • Page 76: Part Iii - Setting Up Nat

    SPEEDLAN Installation and Operation User Guide Part III - Setting Up NAT This section explains how to setup outgoing and incoming Network Address Translation (NAT). For more information on outgoing and incoming NAT, see Diagram of Outgoing NAT, page 7-11 and Diagram of Incoming NAT, page 7-12.
  • Page 77 SPEEDLAN Installation and Operation User Guide from the public. This means that the public will view only one public and valid IP address. Enter the appropriate outgoing information: Public IP Address • This is the IP address for the outside network. If you have more than one public address, you can assign it to node on a private network (One-to-One NAT).

  • Page 78: Incoming Nat

    SPEEDLAN Installation and Operation User Guide Incoming NAT To set up incoming IP network address for NAT, do the following: From the Setup menu, choose General Setup. The General Setup dialog box appears. Select the Enable Incoming Network Address Translation check box. Click OK. From the Setup menu, choose Incoming Network Address Translation Setup.
  • Page 79 SPEEDLAN Installation and Operation User Guide The Incoming Address Translation Setup dialog box appears. Enter the appropriate incoming information: Public IP Address • This is the IP address for the outside network. If you have more than one public address, you can assign it to a node on the private network (One-to-One NAT). Therefore, all requests for a particular IP address from the outside or public network will be translated to the appropriate private IP address.
  • Page 80 SPEEDLAN Installation and Operation User Guide Click Add to enter another IP address/port pair. The Input IP Address/Port Pair dialog box appears. Then enter the following information as appropriate. Then, click OK to close this dialog box. Public IP Address •...
  • Page 81 SPEEDLAN Installation and Operation User Guide After you have finished entering the appropriate information, click OK. 10 Now save the changes to the bridge or router. From the File menu, choose Save Config. 11 A message box appears informing you that the information will be saved to the bridge or router.
  • Page 82 SPEEDLAN Installation and Operation User Guide Notes:___________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ 7-26 Setting Up the IP Addresses (IP Host Setup)
  • Page 83 Chapter 8 IP-Router Setup...
  • Page 84 SPEEDLAN Installation and Operation User Guide IP Routing Setup IP Routing in the General Setup dialog box must be enabled for this dialog box to appear. Then, choose IP Routing Setup from the Setup menu on the SPEEDLAN Configurator. This dialog box must be completed before saving any configuration in which IP Routing has been enabled.
  • Page 85 SPEEDLAN Installation and Operation User Guide Default TTL • IP hosts on the Internet send out packets with a default "Time To Live" parameter. If you want to override the factory default of 64 attempts, specify your new default value here. Disable ARP-Cache Aging •...
  • Page 86 SPEEDLAN Installation and Operation User Guide Add/Indirect Button Click this button to specify the indirect routes for this brouter. These routes are sometimes referred to as static routes. You can use indirect routes to define the way to get to subnets that are attached to other routers in your network.
  • Page 87 SPEEDLAN Installation and Operation User Guide More Button - RIP Routing Click this button on the IP Router Setup dialog box to enable RIP . Wave Wireless brouters support what is known as RIP (Routing Information Protocol). RIP allows users to permit network equipment to communicate with each other to handle the routing plan of your network.
  • Page 88 SPEEDLAN Installation and Operation User Guide Listen to RIP • This function enables the brouter to listen for and update its RIP information. The routes gathered in this manner come from other RIP-enabled routers on your network. This feature is normally used in conjunction with Send RIP Routes, which instructs the brouter to pass along all RIP information it has gathered to other RIP devices on your network.
  • Page 89 Chapter 9 SNMP Setup...
  • Page 90 SPEEDLAN Installation and Operation User Guide SNMP Setup Choose SNMP Setup from the Setup menu of the SPEEDLAN Configurator to set up SNMP . Read Password • This is the read-only password used for SNMP support. It is the SNMP password needed to read the Flash ROM Configuration and SNMP MIB variables.
  • Page 91 SPEEDLAN Installation and Operation User Guide convention, this is the node's fully qualified Internet Domain name (e.g., "bridge20.speedlan.com"). System Location • This field should contain the physical location of this node. (e.g., "telephone closet, 3rd floor"). Trap Host IP Address •...
  • Page 92 SPEEDLAN Installation and Operation User Guide Note:____________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ SNMP Setup...
  • Page 93 Chapter 10 System Access Setup...
  • Page 94 SPEEDLAN Installation and Operation User Guide System Access Setup Choose System Access Setup from the Setup menu of the SPEEDLAN Configurator to enter a password for the System Access Pass Phrase. This will enable you to create a connection between the equipment or wireless brouters.
  • Page 95 Chapter 11 SNMP Monitoring...

Table of Contents
