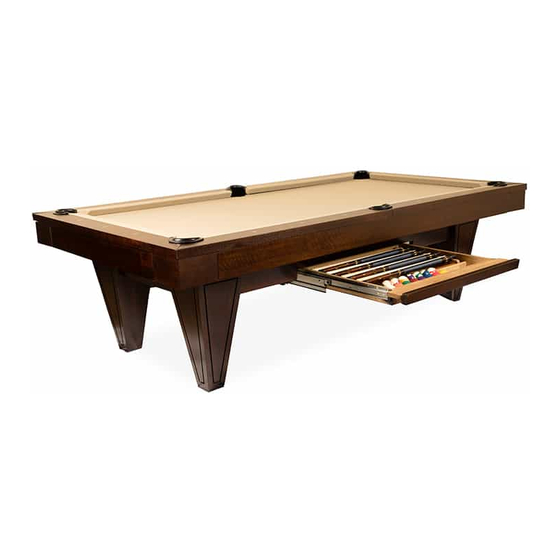

HAVEN BILLIARD TABLE CABINET ASSEMBLY INSTRUCTIONS

Tools required by the installer:

3/8" Drive ratchet and Extension
1/2" Sockets for above
1/2" Combo end wrench
# 2 and # 3 Phillips screwdriver
Electric drill/ driver
1/8" & 3/16" Drill bits
Speed Square
Prior to installation of the table please check for damaged or missing parts. Call Presidential Billiards at
866-728-2253 if there is a problem. The assembly hardware is packed according to the steps below to
facilitate the cabinet assembly.
STEP 1 ASSEMBLE THE CABINET
1.1 Lay the cabinet panels upside down on a clean, flat, level surface.
Loosely assemble the leg block to cabinet using the 16 – 5/16" x 2" bolts and flat washers.
1.2
Loosely attach the leg to the leg block using the 24 – 3/8" x 2" bolts and flat washers.
1.3
STEP 2 ATTACH CABINET BEAMS
Loosely attach beam bracket to cabinet using 6 – L brackets and 24 – 5/16" x 3/4" bolts.
2.1
Loosely attach drawer beams to cabinet using 8 – 5/16 x 2" bolts and washers. Do not attach
2.2
drawer at this time!!
Using 6 – 5/16 x 3 ½" bolts, flat washer dome tooth washer and nuts loosely attach beams to
2.2
cabinet.
2.3 Using a square, pull the beams flush with the top of the cabinet while making sure the bottom of
the beam in resting fully on the brackets. Tighten beams to the brackets, then tighten bracket to
cabinet.
DO NOT TIGHTEN DRAWER BEAMS AT THIS TIME!!!
(Note: Long beam must be flush or slightly below short cross beams or slate will not set level
on table.)
2.6 Starting in one corner tighten bolts in leg blocks. Make sure the cabinet is flush with the top of
the leg.
Attach wings to cabinet using 12 – 5/16" x 2" bolts and washers.
2.7
