Renishaw QUANTiC RTLC40-S Installation Manual
Linear encoder system
Hide thumbs
Also See for QUANTiC RTLC40-S:
- Installation manual (24 pages) ,
- Installation manual (35 pages)
Related Manuals for Renishaw QUANTiC RTLC40-S
Summary of Contents for Renishaw QUANTiC RTLC40-S

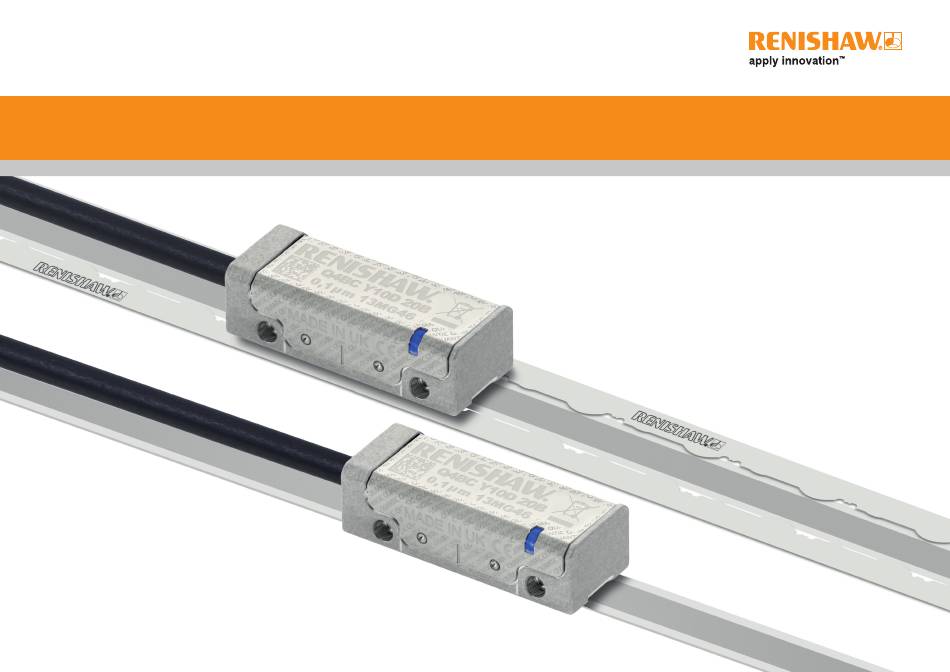

- Page 1 Installation guide M-9417-9089-03-A QUANTiC RSLM high accuracy linear encoder linear encoder system ™...
-
Page 2: Table Of Contents
Contents Product compliance Storage and handling RTLC40-S: Installation drawing (adhesive datum clamp) Scale application End covers Reference mark selector and limit magnet installation Datum clamp RTLC40/FASTRACK: Installation drawing (adhesive datum clamp) FASTRACK and scale application Scale datum Reference mark selector and limit magnet installation QUANTiC quick-start guide Readhead mounting and alignment System calibration... -
Page 3: Product Compliance
INACCURACIES IN THIS DOCUMENT. received, including interference that may cause undesired operation. The user is cautioned that any changes or modifications not expressly approved by Renishaw plc or authorised representative could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class A digital device, The packaging of our products contains the following materials and can be recycled. -
Page 4: Storage And Handling
Storage and handling Scale and readhead Readhead only N-heptane Propan-2-ol Acetone Methylated Chlorinated COCH CHOHCH Spirits Solvents Storage Operating Humidity Minimum bend radius +70 °C +70 °C RTLC40-S – 150 mm −20 °C 0 °C RTLC40 – 50 mm FASTRACK – 200 mm 95% relative humidity NOTE: Ensure self-adhesive tape (non-condensing) -
Page 5: Rtlc40-S
RTLC40-S: Installation drawing (adhesive datum clamp) Dimensions and tolerances in mm Overall length (L+37 ) START Scale length ( L) FINISH (see page 4) (see page 4) Measuring length ML = ( L−17) (ML = (L−32) with dual limits) (Roll tol. ±0.8°) QUANTiC 0.12 (Yaw tol. -
Page 6: Scale Application
Thoroughly clean and degrease the substrate using recommended solvents (see 'Storage and handling'). Allow substrate to dry before applying scale. Clean scale using Renishaw scale RTLC40-S cleaning wipes (A-9523-4040) or Mount the scale applicator to the readhead mounting bracket using a clean, dry, lint-free cloth. -
Page 7: Reference Mark Selector And Limit Magnet Installation
RTLC40-S: Reference mark selector and limit magnet installation IMPORTANT: Allow 24 hours after scale application before fitting magnets. For accuracy and ease of positioning of reference mark selector and limit magnets, Applicator tool the applicator tool (A-9653-0201) should be used. The magnet should be attached (A-9653-0201) to the applicator tool as shown. -
Page 8: Rtlc40/Fastrack
RTLC40/FASTRACK: Installation drawing ‡ (adhesive datum clamp Dimensions and tolerances in mm Overall length ( L+12 ) Scale length ( L) 1 min (gap) Measuring length ML = (L−10) (ML=( L−25 ) with dual limits) FASTRACK length = (L −24) (Yaw tol. -
Page 9: Fastrack And Scale Application
RTLC40/FASTRACK: FASTRACK and scale application During handling or installation of FASTRACK suitable gloves should be worn to protect against injury from sharp edges. If required cut FASTRACK and scale to length Guillotine Thoroughly clean and degrease press block (separately) using guillotine (A-9589-0071) the substrate and allow to dry. -
Page 10: Scale Datum
5 min – RTL* scale installation tool ’ (A-9589-0420) thread depth from the website at www.renishaw.com/encoderinstallationguides. Do not place clamp tip Projections NOTE: When reference mark and over shaded area IMPORTANT: If manually installing datum clamp aligned as shown, the scale using fingers, suitable... -
Page 11: Reference Mark Selector And Limit Magnet Installation
RTLC40/FASTRACK : Reference mark selector and limit magnet installation For accuracy and ease of positioning of reference mark selector and limit magnets, the applicator tool (A-9653-0201) should be used. The magnet should be attached to the applicator tool as shown below and aligned with the outer edge of the FASTRACK. Limit magnets can be positioned at any user defined location along the FASTRACK, but the reference mark selector magnet should be positioned adjacent to the chosen IN-TRAC reference mark as shown below. -
Page 12: Quantic Quick-Start Guide
For more details refer to the ‘Advanced Diagnostic Tool ADTi-100 and ADT View software quick start guide’ (M-6195-9321) and ‘Advanced Diagnostic Tool ADTi-100 and ADT View software user guide’ (M-6195-9413). † The software can be downloaded for free from www.renishaw.com/adt. QUANTiC linear installation guide... -
Page 13: Readhead Mounting And Alignment
ADT View software can be used to optimise signal strength in challenging installations. Alarm 4 red flashes Low signal, over signal, or overspeed; system in error See www.renishaw.com/adt for more information. NOTE: When re-installing the readhead factory defaults should be restored, see page QUANTiC readhead and RTLC40-S QUANTiC readhead and RTLC40 /FASTRACK 0°... -
Page 14: System Calibration
NOTE: System calibration, restoring factory defaults, and enabling/disabling AGC functions can also be carried out using the optional ADT and ADT View software. See www.renishaw.com/adt for more information. When re-installing the system, or in the case of continued calibration failure, factory defaults should Ensure signal strength has been optimised along the full axis of travel, the LED will be flashing Green. -
Page 15: Troubleshooting
Troubleshooting Fault Cause Possible solutions LED on the readhead is Blank There is no power to the readhead Ensure 5 V supplied at the readhead For cable variants check correct wiring of connector LED on the readhead is Red and The signal strength is <50% Check the readhead optical window and scale are clean and free from contamination I can’t get a Green LED... - Page 16 Troubleshooting (continued) Fault Cause Possible solutions No reference mark output Ensure you are not over-speeding the readhead during calibration mode (maximum speed <100 mm/sec) Calibrate the system (see page 12) – If the system completes calibration mode then it has successfully seen and calibrated the reference mark If you still don’t see a reference mark then check the system wiring –...
-
Page 17: Readhead Dimensions
QUANTiC: Readhead dimensions Dimensions and tolerances in mm Optical centreline (Incremental and reference mark) 8.75 Mounting faces 13.5 4.25 Reference mark selector sensor position Set-up LED 4.15 P and Q limit switch sensor position 6 min R>30 Dynamic bend radius R>10 Static bend radius 11.5 2 off mounting holes M2.5 through,... -
Page 18: Output Signals
Output signals 15 way D-type 12 way circular 9 way D-type connector (termination code A) 9 way D-type 15 way D-type 14 way JST Function Signal Colour alternative pin-out connector Brown 7, 8 4, 12 Power White 2, 9 2, 10 −... -
Page 19: Electrical Connections
Electrical connections Output specifications Grounding and shielding Digital output signals Form – Square wave differential line driver to EIA RS422A (except limits P and Q) Customer electronics QUANTiC readhead Readhead † Incremental 2 channels A and B in quadrature (90° phase shifted) termination/connector Signal period P Output... -
Page 20: General Specifications
10 m Installation temperature 15 °C to 35 °C *Extension cables available. Contact your local Renishaw representative for further details † For lengths >2 m FASTRACK with RTLC40 is recommended. Renishaw encoder systems have been designed to the relevant EMC standards, but must be correctly integrated to achieve EMC compliance. - Page 21 RENISHAW ® and the probe symbol used in the RENISHAW logo are registered trade marks of Renishaw plc in the United Kingdom and other countries. apply innovation and names and designations of other Renishaw products and technologies *M-9417-9089-03* are trade marks of Renishaw plc or its subsidiaries.
