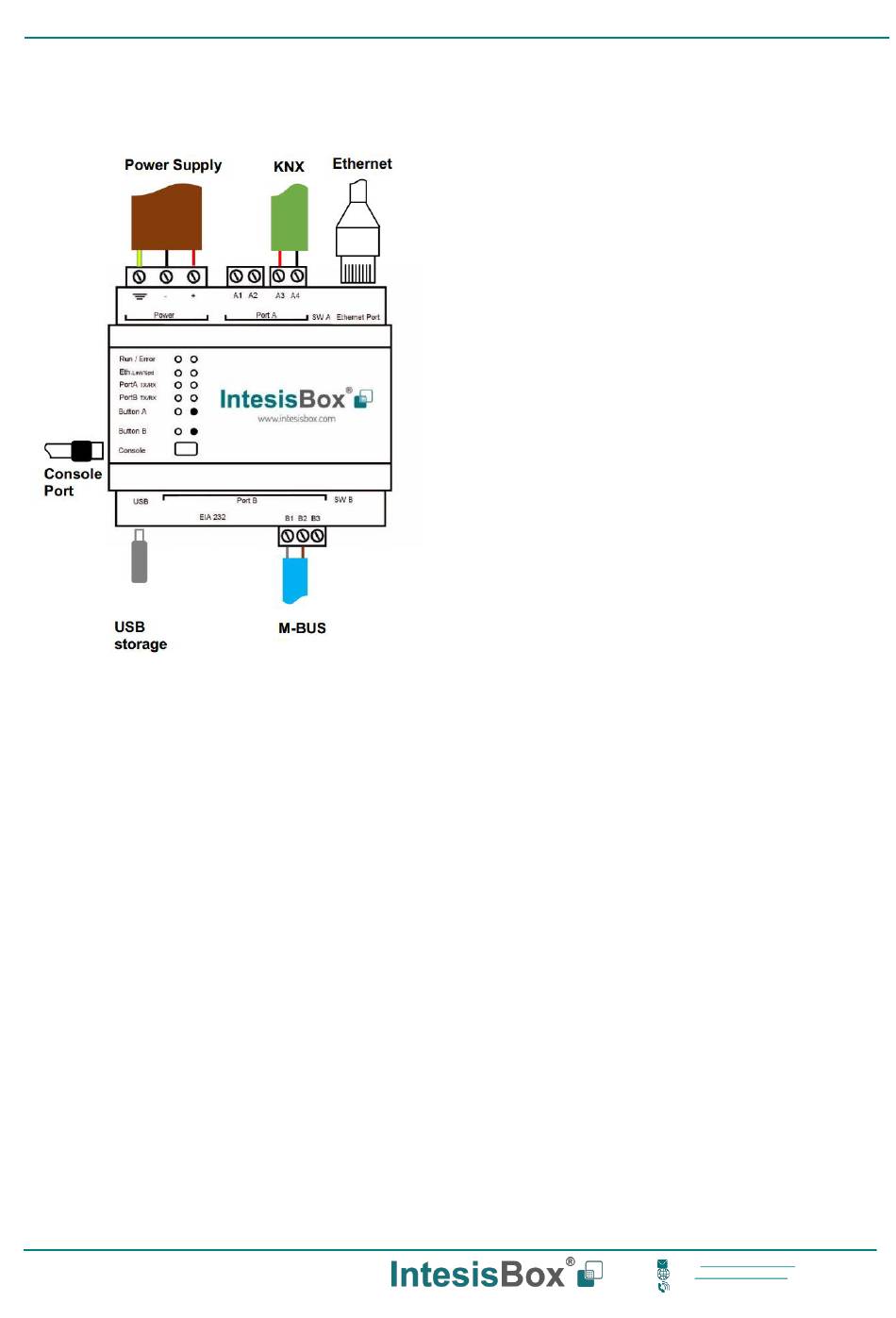

3 Connections

Find below information regarding the IntesisBox connections available.
Console Port
Connect a mini-type B USB cable from your computer to the gateway to allow communication between the
Configuration Software and the gateway. Remember that Ethernet connection is also allowed. Check the user manual
for more information.
USB
Connect a USB storage device (not a HDD) if required. Check the user manual for more information.
Ensure proper space for all connectors when mounted (see section 6).
This information is subject to change without prior notice
IntesisBox is a registered trademark of Intesis Software S.L.U.
Power Supply
Must use NEC Class 2 or Limited Power Source (LPS) and
SELV rated power supply.
Respect polarity applied of terminals (+) and (-). Be sure the
voltage applied is within the range admitted (check table
below). The power supply can be connected to earth but only
through the negative terminal, never through the positive
terminal.
Ethernet / Console (UDP & TCP)
Connect the cable coming from the IP network to the
connector ETH of the gateway. Use an Ethernet CAT5 cable.
If communicating through the LAN of the building, contact the
network administrator and make sure traffic on the port used
is allowed through all the LAN path (check the gateway user
manual for more information). Default IP is 192.168.100.246.
DHCP is enabled by default.
PortA / KNX
Connect the KNX TP-1 bus to connectors A3 (+), A4 (-) of
gateway's PortA. Respect the polarity.
PortB / M-Bus
Connect the MBUS to connectors B1 (M-), B2 (M+) of
gateway's PortB. Respect the polarity.
