Electrical & Mechanical Features - IntesisBox IBKNXMEB0100000 User Manual

KNX – M-Bus
®
IntesisBox

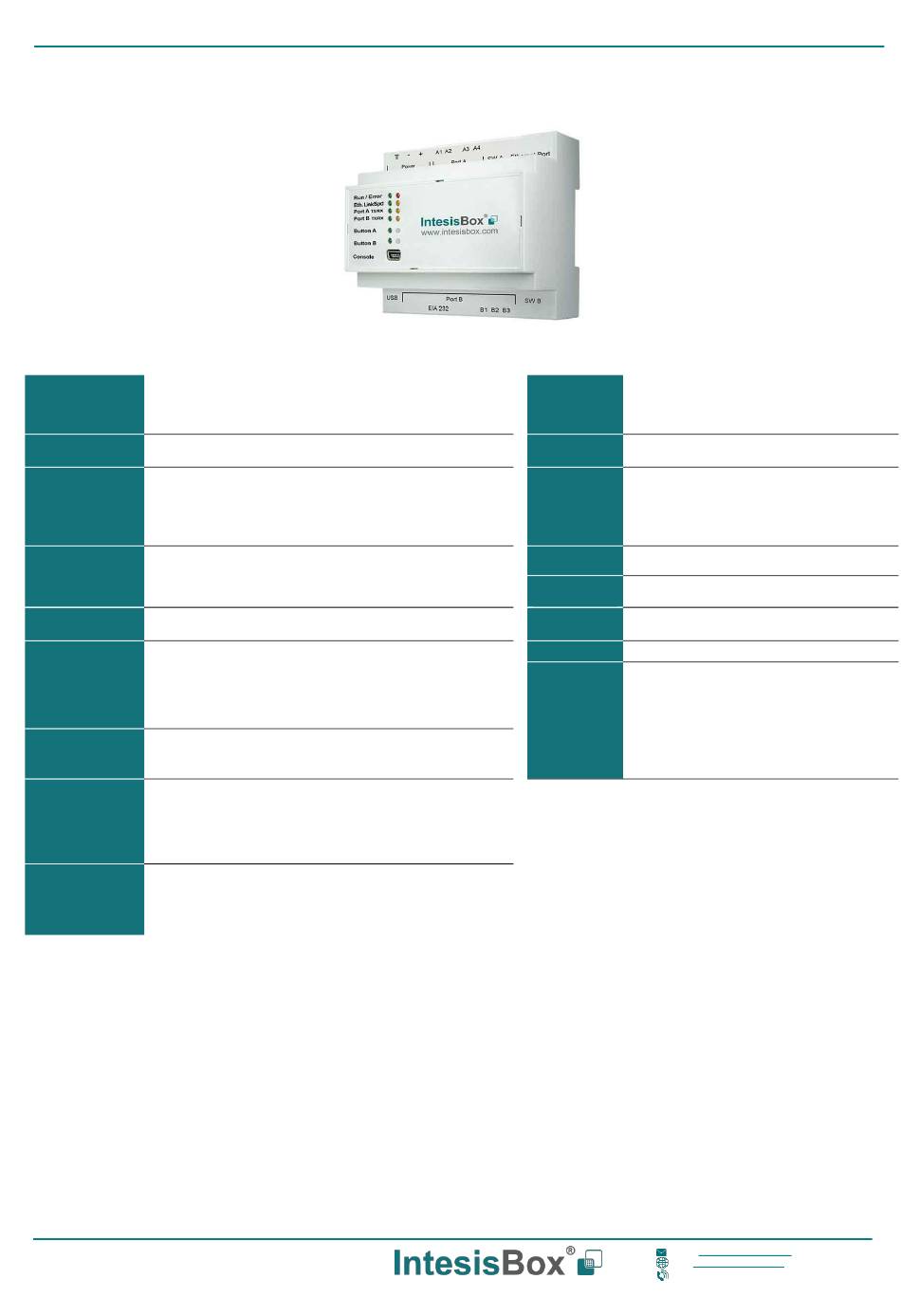

5 Electrical & Mechanical Features
Plastic, type PC (UL 94 V-0)
Net dimensions (d
Enclosure
Recommended space for installation (d
Color: Light Grey. RAL 7035
Wall.
Mounting
DIN rail EN60715 TH35.
Per terminal: solid wires or stranded wires (twisted or with ferrule)
1 core: 0.5mm
Terminal Wiring
2 cores: 0.5mm
(for power supply and
low-voltage signals) 3 cores: not permitted
If cables are more than 3.05 meters long, Class 2 cable is required.
1 x Plug-in screw terminal block (3 poles)
Power
Positive, Negative, Earth
24VDC
1 x Ethernet 10/100 Mbps RJ45
Ethernet
2 x Ethernet LED: port link and activity
1 x KNX TP-1 Plug-in screw terminal block orange (2 poles)
2500VDC isolation from other ports
KNX power consumption: 5mA
Port A
Voltage rating: 29VDC
1 x Plug-in screw terminal block green (2 poles)
Reserved for future use
1 x DIP-Switch for PORT A configuration:
Switch A
Reserved for future use
(SWA)
1 x Serial EIA232 (SUB-D9 male connector)
Reserved for future use
1 x M-BUS Plug-in screw terminal block (3 poles)
PORT B
MBUS power consumption: 210mA
Voltage rating: 36VDC
(except PORT B: EIA232)
1 x DIP-Switch for PORT B configuration:
Switch B
Reserved for future use
(SWB)
This information is subject to change without prior notice
IntesisBox is a registered trademark of Intesis Software S.L.U.
w h): 90x88x56 mm
x x
w h): 130x100x100mm
x x
... 2.5mm
2 2
... 1.5mm
2 2
Size: Coin 20mm x 3.2mm
Battery Capacity: 3V / 225mAh
Type: Manganese Dioxide Lithium
Mini Type-B USB 2.0 compliant
Console Port
1500VDC isolation
Type-A USB 2.0 compliant
Only for USB flash storage device
USB port
(USB pen drive)
Power consumption limited to 150mA
(HDD connection not allowed)
Button A: KNX programming button (not used)
Push Button
Button B: Not used
Operation
0°C to +60°C
Temperature
Operational
5 to 95%, no condensation
Humidity
Protection IP20 (IEC60529)
10 x On board LED indicators
1 x Error LED
1 x Power LED
LED
2 x Ethernet Link/Speed
Indicators 2 x Port A TX/RX
2 x Port B TX/RX
1 x Button A indicator
1 x Button B indicator
100 mm
