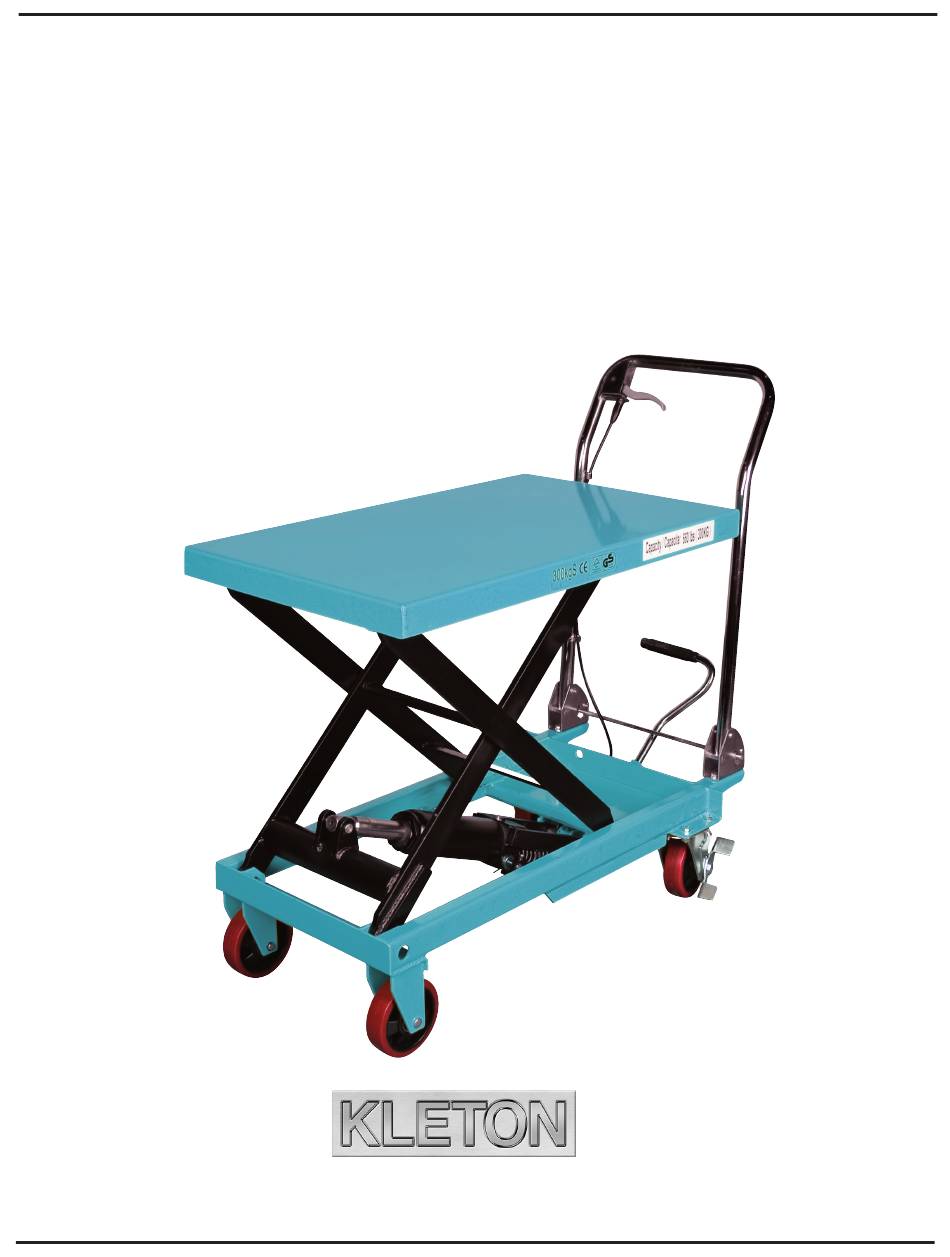

- Page 1 Instruction Manual MJ521 Mobile Hydraulic Scissor Lift Table 1100 lbs. (500 kg)
- Page 2 WARNING! Read this operation manual carefully and understand fully the operating instructions. Improper use of this unit could result in injury • DO NOT put foot or hand in scissor mechanism. • Keep neighbouring persons away from the unit when in use. • DO NOT stand in front or behind of lift table when it is in use. • DO NOT crawl under the table. • DO NOT put foot in front of rolling wheels.
- Page 3 Capacity Table Table Height Wheel Weight to Elevate 500 kg. 815 x 500 mm 285-880 mm 128 mm 81 kg. MJ521 1100 lbs. 32" x 19.7" 11.2" x 34.6" 5" 179 lbs. Service Instructions Change hydraulic oil every 12 months Lubricate the following areas every month: Fitting of Cylinder/oil, Roller Friction Surface/grease, Link Pin/oil, Pedal Fitting Point/oil, Grease Nipple/grease Troubleshooting If the table does not lift when pressing lifting pedal several times: • Adjust the control valve located on...
- Page 4 LIFT TABLE PARTS LIST Part Order Part Order Part Order Description Qty. Description Qty. Description Qty. MJ870 Handle Grip MJ891 Axle MJ912 Roller MJ871 Control Handle MJ892 Bearing MJ913 Washer MJ872 Elastic Pin MJ893 Wheel MJ914 Roller MJ894 Retaining Ring MJ915 MJ873 MJ895...
- Page 5 HYDRAULIC CYLINDER PARTS LIST Part Order Part Order Part Order Description Qty. Description Qty. Description Qty. MJ946 Lever Plate MJ737 Seal Washer MJ927 Seal Washer MJ947 MJ966 Cylinder MJ928 Pump Cylinder MJ948 Elastic Washer MJ967 Housing MJ701 Dust Ring MJ702 Y-Seal MJ949 Washer...
