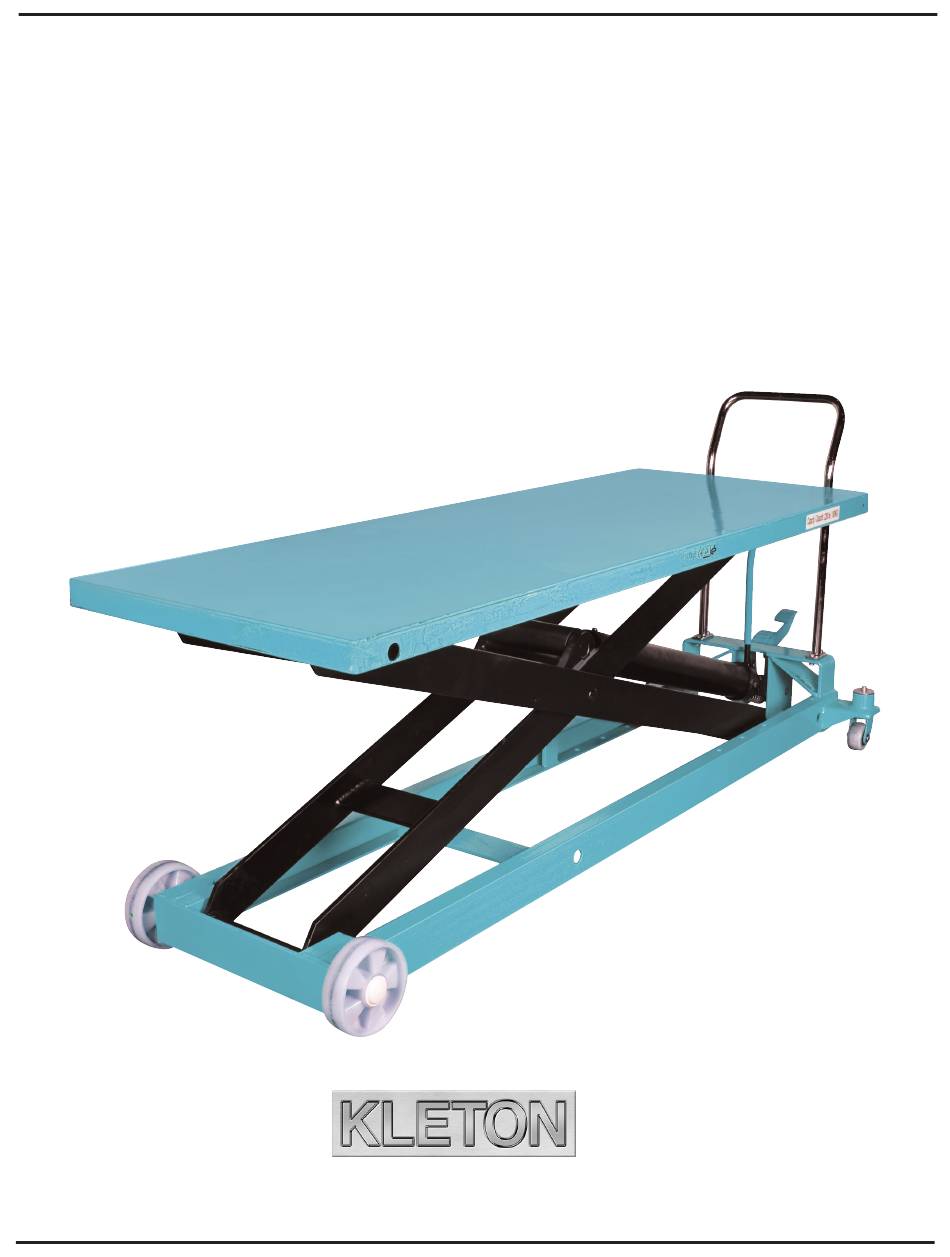

- Page 1 Instruction Manual MJ525 Mobile Hydraulic Scissor Lift Table 2200 lbs. (1000 kg)
-
Page 2: Daily Inspection
WARNING! Read this operation manual carefully and understand fully the operating instructions. Improper use of this unit could result in injury • DO NOT put foot or hand in scissor mechanism. • Keep neighbouring persons away from the unit when in use. • DO NOT stand in front or behind of lift table when it is in use. • DO NOT crawl under the table. • DO NOT put foot in front of rolling wheels. -
Page 3: Specifications
Capacity Table Table Height Wheel Weight to Elevate 1000 kg. 2035 x 750 mm 300-1360 mm 127 mm 198 kg. MJ525 2200 lbs. 80.1" x 29.5" 11.8" x 53.5" 5" 436 lbs. Service Instructions Change hydraulic oil every 12 months Lubricate the following areas every month: Fitting of Cylinder/oil, Roller Friction Surface/grease, Link Pin/oil, Pedal Fitting Point/oil, Grease Nipple/grease Troubleshooting If the table does not lift when pressing lifting pedal several times: • Adjust the control valve located on... - Page 4 LIFT TABLE PARTS LIST Part Order Part Order Part Order Description Description Description MK462 Table MK474 Frame of Univ. Wheel MK486 Elastic Pin MK475 Shaft of Wheel MK487 Handle MK463 Screw MK476 Washer MK488 Elastic Washer MK464 Fork Arm MK465 Roller of Table MK477 Bearing...
- Page 5 HYDRAULIC CYLINDER PARTS LIST Part Order Part Order Part Order Description Qty. Description Qty. Description Qty. B101 MK496 Dust Ring B119 MK514 Seal Washer B137 MK532 Steel Ball B102 MK497 Screw Cover B120 MK515 Body of Pump B138 MK533 Body of Valve B103 MK498 O-Ring...
