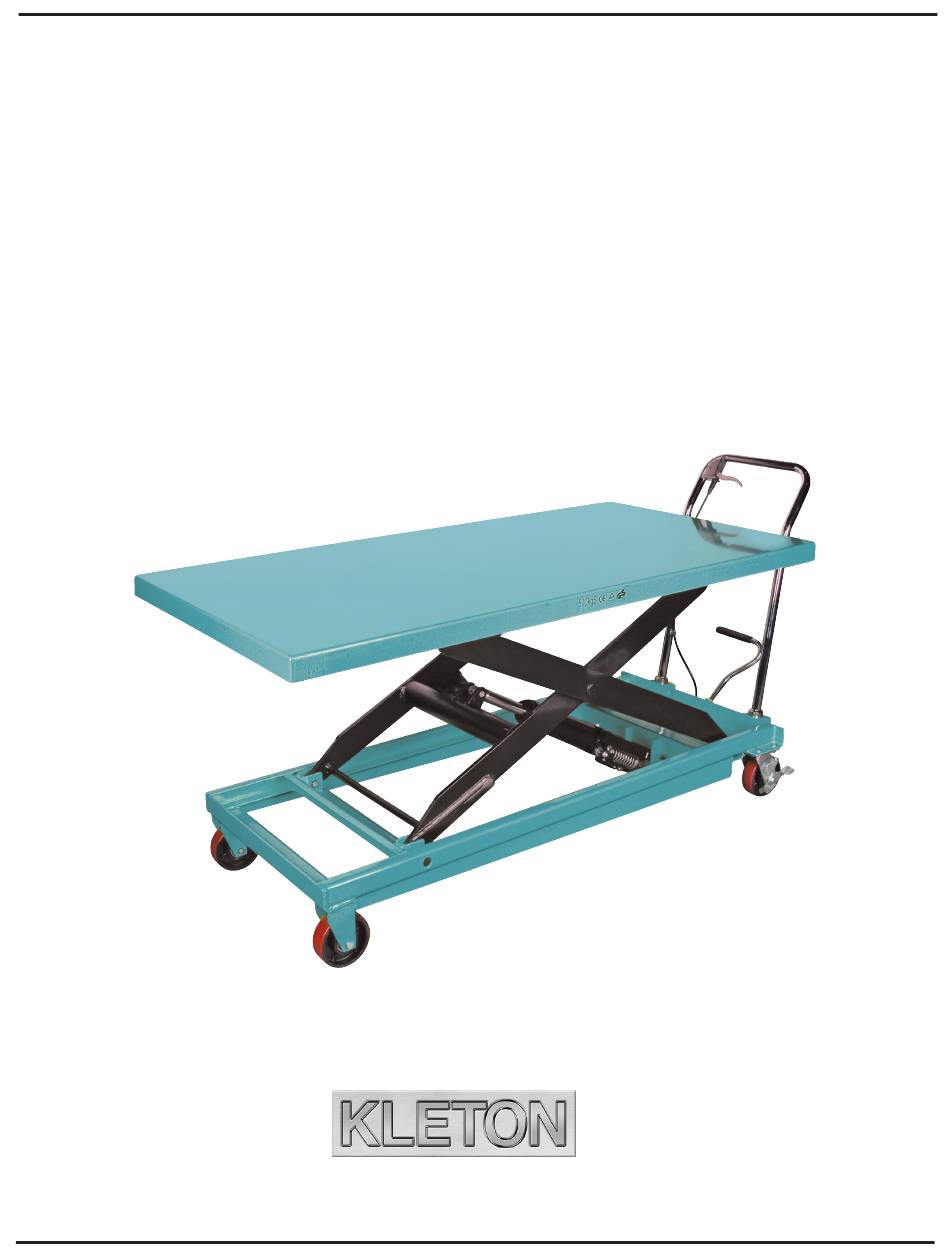

- Page 1 Instruction Manual MJ522 Mobile Hydraulic Scissor Lift Table 1100 lbs. (500 kg)
-
Page 2: Daily Inspection
WARNING! Read this operation manual carefully and understand fully the operating instructions. Improper use of this unit could result in injury • DO NOT put foot or hand in scissor mechanism. • Keep neighbouring persons away from the unit when in use. • DO NOT stand in front or behind of lift table when it is in use. • DO NOT crawl under the table. • DO NOT put foot in front of rolling wheels. -
Page 3: Specifications
Capacity Table Table Height Wheel Weight to Elevate 500 kg. 1600 x 810 mm 286-915 mm 127 mm 154 kg. MJ522 1100 lbs. 63" x 31.9" 11.25" x 36" 5" 340 lbs. Service Instructions Change hydraulic oil every 12 months Lubricate the following areas every month: Fitting of Cylinder/oil, Roller Friction Surface/grease, Link Pin/oil, Pedal Fitting Point/oil, Grease Nipple/grease Troubleshooting If the table does not lift when pressing lifting pedal several times: • Adjust the control valve located on... - Page 4 LIFT TABLE PARTS LIST Part Order Part Order Part Order Description Qty. Description Qty. Description Qty. MK140 Retaining Ring 101M MK100 Handle Grip MJ893 Wheel MK121 Retaining Ring MK141 Roller MK101 Control Handle MK142 Washer MK102 Elastic Pin 126W MK122 Pump Unit MK143 MK103...
- Page 5 HYDRAULIC CYLINDER PARTS LIST Part Order Part Order Part Order Description Description Description MK160 Seal Washer MK180 MK199 Cylinder MK161 Pump Cylinder MK181 Elastic Washer MK200 Housing MK201 Bolt MJ701 Dust Ring MK182 Washer MJ702 Y-Seal MK183 Bolt with Hole MK202 Seal Washer MK203...
