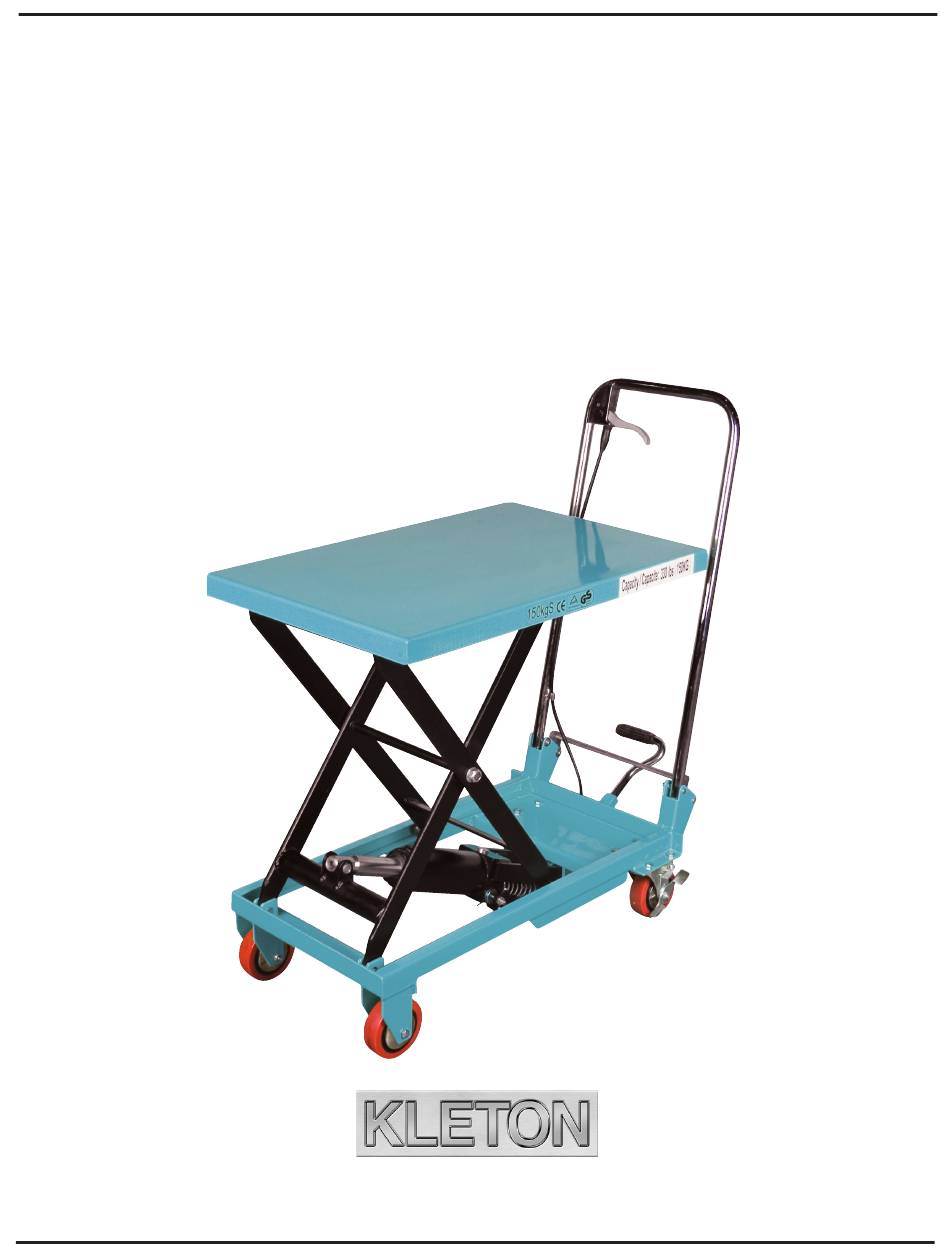

- Page 1 Instruction Manual MJ518 Mobile Hydraulic Scissor Lift Table 330 lbs. (150 kg)
-
Page 2: Daily Inspection
WARNING! Read this operation manual carefully and understand fully the operating instructions. Improper use of this unit could result in injury • DO NOT put foot or hand in scissor mechanism. • Keep neighbouring persons away from the unit when in use. • DO NOT stand in front or behind of lift table when it is in use. • DO NOT crawl under the table. • DO NOT put foot in front of rolling wheels. -
Page 3: Specifications
Capacity Table Wheel Weight Height Strokes to Elevate 150 kg. 450 x 700 mm 220-720 mm 100 mm 45 kg. MJ518 330 lbs. 17.7" x 27.5" 8.6" x 28.3" 4" 99 lbs. Service Instructions Change hydraulic oil every 12 months Lubricate the following areas every month: Fitting of Cylinder/oil, Roller Friction Surface/grease, Link Pin/oil, Pedal Fitting Point/oil, Grease Nipple/grease Troubleshooting If the table does not lift when pressing lifting pedal several times: • Adjust the control valve located on... - Page 4 LIFT TABLE PARTS LIST Part Order Part Order Part Order Description Qty. Description Qty. Description Qty. MJ645 Handle Grip MJ664 Washer MJ683 Table MJ646 Control Handle MJ665 Axle MJ684 Retaining Ring MJ647 Elastic Pin MJ666 Bearing MJ685 Roller MJ648 MJ667 Wheel MJ686 MJ649...
- Page 5 HYDRAULIC CYLINDER PARTS LIST Part Order Part Order Part Order Description Qty. Description Qty. Description Qty. MJ699 Seal Washer MJ718 Lever Plate MJ737 Seal Washer MJ700 Pump Cylinder MJ719 MJ738 Cylinder MJ701 Dust Ring MJ720 Elastic Washer MJ739 Housing MJ702 Y-Seal MJ721 Washer...
