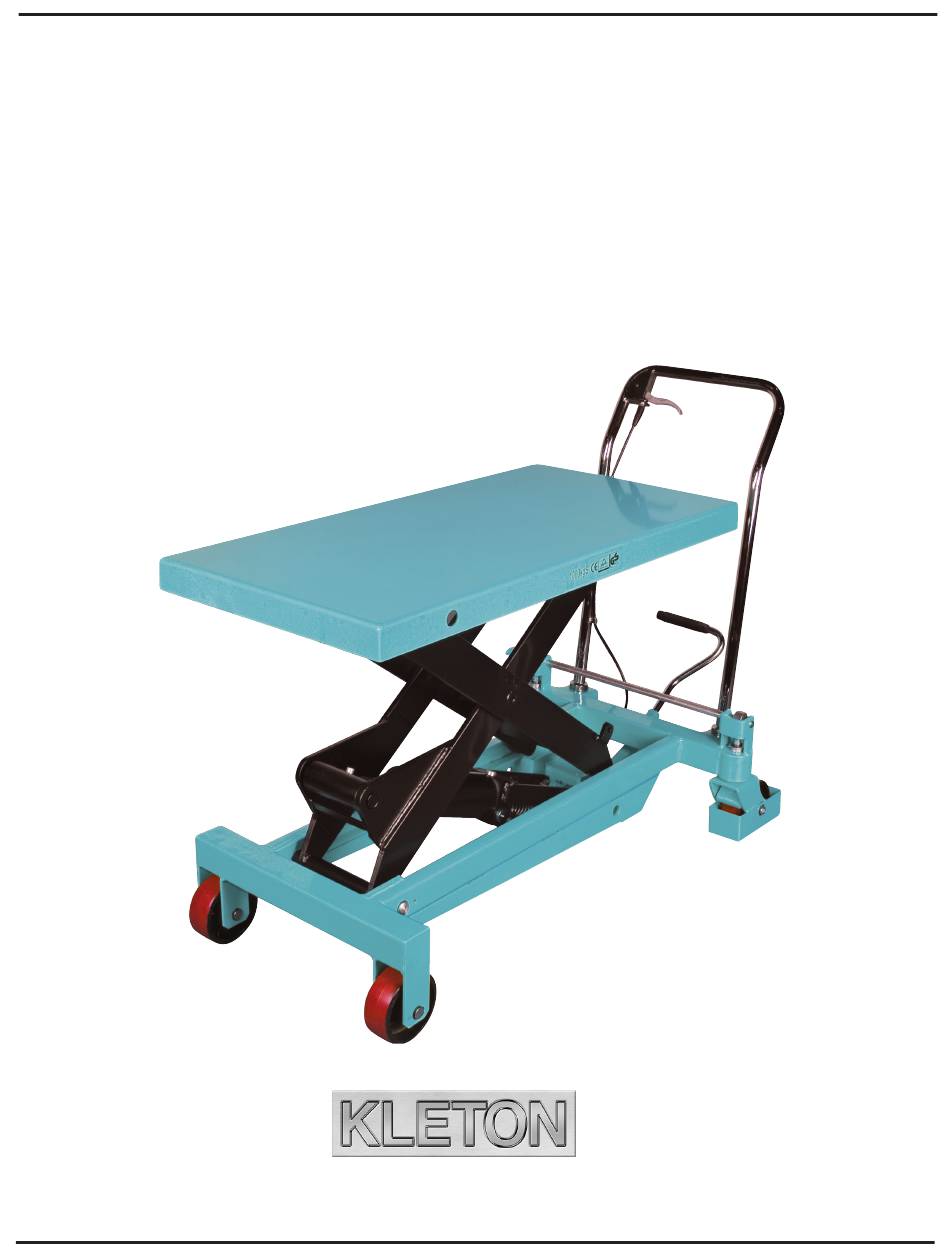

- Page 1 Instruction Manual MJ524 Mobile Hydraulic Scissor Lift Table 2200 lbs. (1000 kg)
-
Page 2: Daily Inspection
WARNING! Read this operation manual carefully and understand fully the operating instructions. Improper use of this unit could result in injury • DO NOT put foot or hand in scissor mechanism. • Keep neighbouring persons away from the unit when in use. • DO NOT stand in front or behind of lift table when it is in use. • DO NOT crawl under the table. • DO NOT put foot in front of rolling wheels. -
Page 3: Specifications
Capacity Table Table Height Wheel Weight Strokes to Elevate 1000 kg. 1016 x 510 mm 380-990 mm 128 mm 122 kg. MJ524 2200 lbs. 40" x 20.1" 15" x 39" 5" 269 lbs. Service Instructions Change hydraulic oil every 12 months Lubricate the following areas every month: Fitting of Cylinder/oil, Roller Friction Surface/grease, Link Pin/oil, Pedal Fitting Point/oil, Grease Nipple/grease Troubleshooting If the table does not lift when pressing lifting pedal several times: • Adjust the control valve located on... - Page 4 LIFT TABLE PARTS LIST Part Order Part Order Part Order Description Description Description 101M MK340 Handle Grip 123G MK362 Brake 145G MK384 Connecting Rod MK341 Control Handle MK363 Washer MK385 Cushion MK342 Elastic Pin MK364 Bearing MK386 Bolt 126G MK365 Wheel MK343 MK387...
- Page 5 HYDRAULIC CYLINDER PARTS LIST Part Order Part Order Part Order Description Qty. Description Qty. Description Qty. MK405 Seal Washer MK424 Lever Plate 239G MK443 Seal Washer MK406 Pump Cylinder MK425 Nut 240G MK444 Cylinder MJ701 Dust Ring MK426 Elastic Washer 241B MK445 Housing MJ702...
