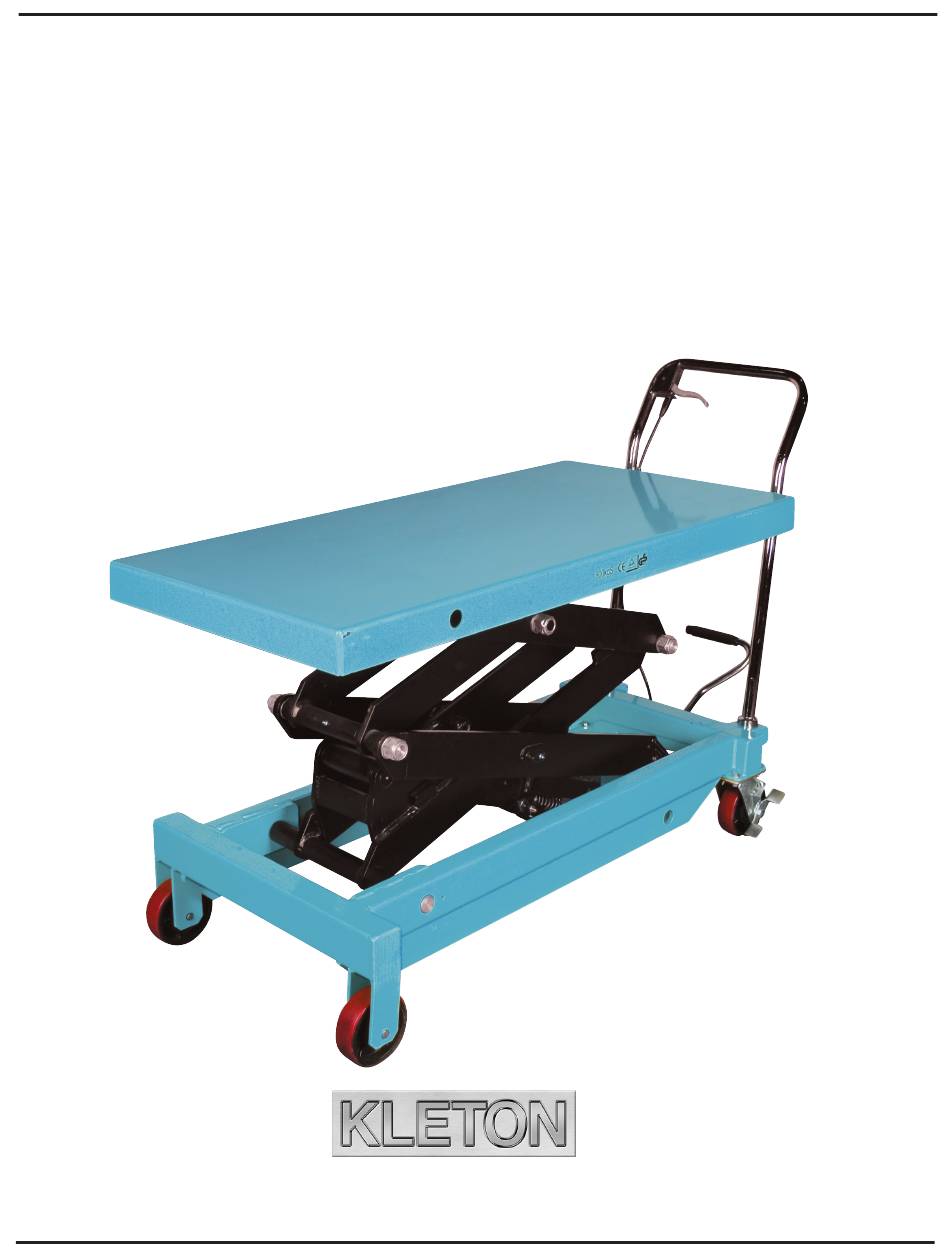

- Page 1 Instruction Manual MJ526 Mobile Hydraulic Scissor Lift Table 1540 lbs. (700 kg)
- Page 2 WARNING! Read this operation manual carefully and understand fully the operating instructions. Improper use of this unit could result in injury • DO NOT put foot or hand in scissor mechanism. • Keep neighbouring persons away from the unit when in use. • DO NOT stand in front or behind of lift table when it is in use. • DO NOT crawl under the table. • DO NOT put foot in front of rolling wheels.
- Page 3 Capacity Table Table Height Wheel Weight Strokes to Elevate 700 kg. 1220 x 610 mm 445-1500 mm 127 mm 195 kg. MJ526 1540 lbs. 48" x 24" 17.5" x 59.1" 5" 430 lbs. Service Instructions Change hydraulic oil every 12 months Lubricate the following areas every month: Fitting of Cylinder/oil, Roller Friction Surface/grease, Link Pin/oil, Pedal Fitting Point/oil, Grease Nipple/grease Troubleshooting If the table does not lift when pressing lifting pedal several times: • Adjust the control valve located on...
- Page 4 LIFT TABLE PARTS LIST Part Order Part Order Part Order Description Qty. Description Qty. Description Qty. 101M MK547 Handle Grip MK568 Bearing MK592 Bushing MK548 Control Handle MJ893 Wheel MK593 Bushing MK549 Elastic Pin MK570 MK594 MK571 Pump Unit MK595 Retaining Ring MK550 MK572...
- Page 5 HYDRAULIC CYLINDER PARTS LIST Part Order Part Order Part Order Description Qty. Description Qty. Description Qty. MK609 Seal Washer MK630 MK332 Seal Washer MK610 Pump Cylinder MK631 Adjusting Bolt MK652 Cylinder Cap MK611 Dust Ring MJ726 O-Ring MK456 O-Ring MK612 Y-Seal MK633 Spring...
