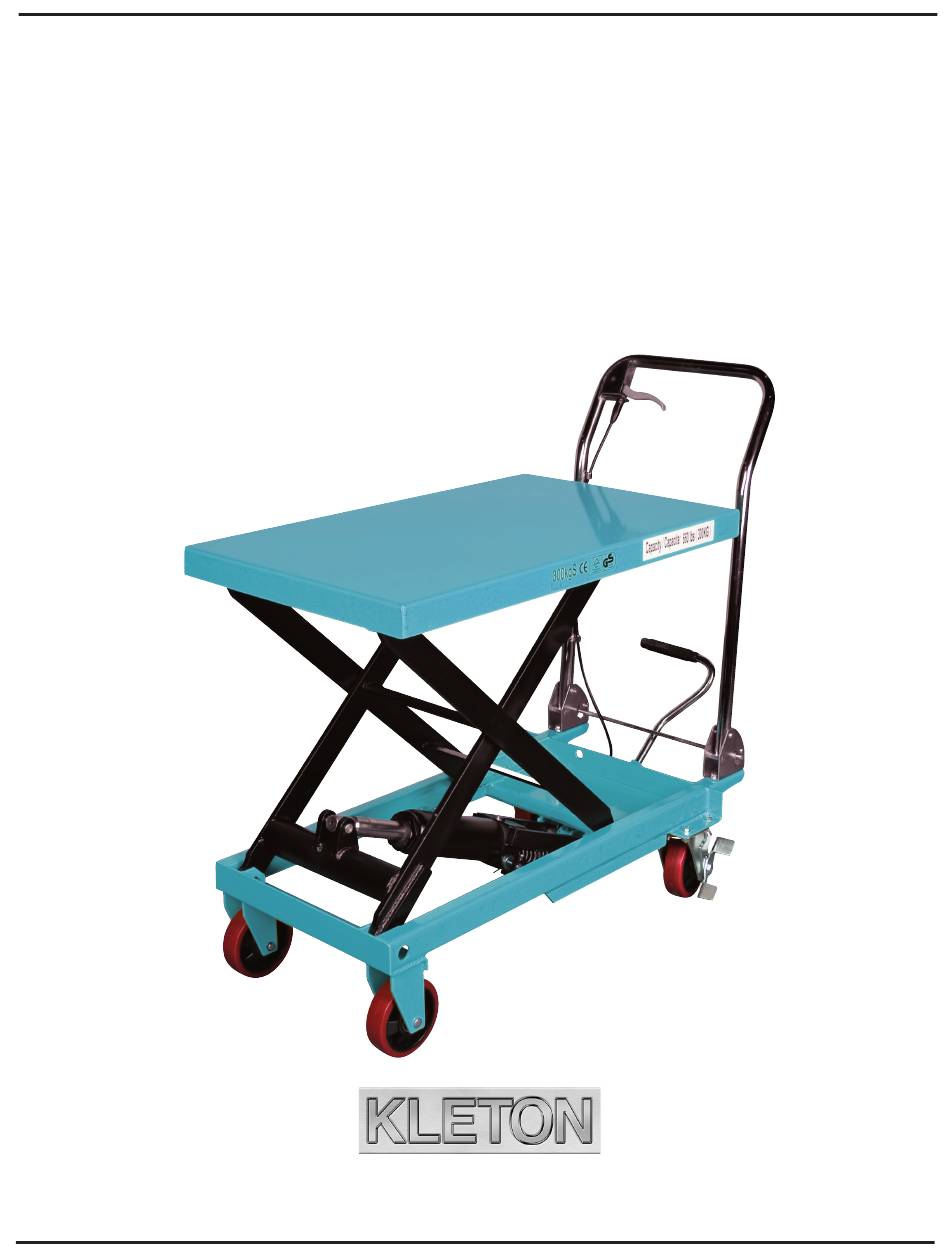

- Page 1 Instruction Manual MJ519 Mobile Hydraulic Scissor Lift Table 660 lbs. (300 kg)
- Page 2 WARNING! Read this operation manual carefully and understand fully the operating instructions. Improper use of this unit could result in injury • DO NOT put foot or hand in scissor mechanism. • Keep neighbouring persons away from the unit when in use. • DO NOT stand in front or behind of lift table when it is in use. • DO NOT crawl under the table. • DO NOT put foot in front of rolling wheels.
- Page 3 Model Table Table Height Wheel Weight Strokes to Elevate 300 kg. 815 x 500 mm 285-880 mm 128 mm 77 kg. MJ519 660 lbs. 32" x 19.7" 11.2" - 34.6" 5" 170 lbs. Service Instructions Change hydraulic oil every 12 months Lubricate the following areas every month: Fitting of Cylinder/oil, Roller Friction Surface/grease, Link Pin/oil, Pedal Fitting Point/oil, Grease Nipple/grease Troubleshooting If the table does not lift when pressing lifting pedal several times: • Adjust the control valve located on...
- Page 4 LIFT TABLE PARTS LIST Part Order Part Order Part Order Description Qty. Description Qty. Description Qty. MJ756 Handle Grip MJ777 Axle MJ798 Roller MJ757 Control Handle MJ778 Bearing MJ799 Washer MJ758 Elastic Pin MJ779 Wheel MJ800 Roller MJ759 MJ780 Retaining Ring MJ801 MJ760 Bolt with Hole...
- Page 5 HYDRAULIC CYLINDER PARTS LIST Part Order Part Order Part Order Description Qty. Description Qty. Description Qty. MJ813 Seal Washer MJ832 Lever Plate MJ737 Seal Washer MJ814 Pump Cylinder MJ833 MJ852 Cylinder MJ701 Dust Ring MJ834 Elastic Washer MJ853 Housing MJ702 Y-Seal MJ835 Washer...
