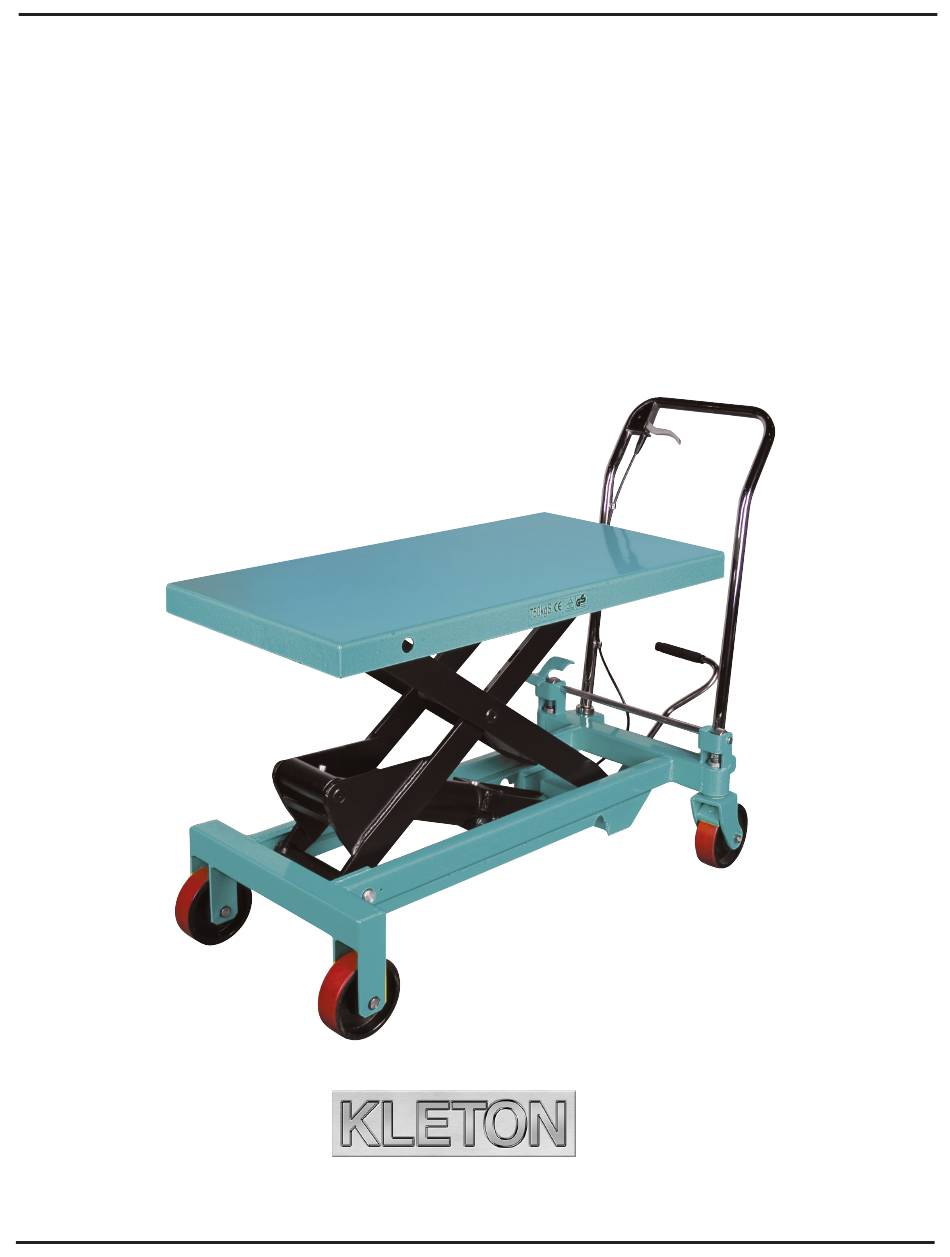

- Page 1 Instruction Manual MJ523 Mobile Hydraulic Scissor Lift Table 1650 lbs. (750 kg)
- Page 2 WARNING! Read this operation manual carefully and understand fully the operating instructions. Improper use of this unit could result in injury • DO NOT put foot or hand in scissor mechanism. • Keep neighbouring persons away from the unit when in use. • DO NOT stand in front or behind of lift table when it is in use. • DO NOT crawl under the table. • DO NOT put foot in front of rolling wheels.
- Page 3 Capacity Table Table Height Wheel Weight Strokes to Elevate 750 kg. 1000 x 510 mm 420-900 mm 147 mm 125 kg. MJ523 1650 lbs. 39.4" x 20.1" 16.5" x 35.4" 5.75" 275 lbs. Service Instructions Change hydraulic oil every 12 months Lubricate the following areas every month: Fitting of Cylinder/oil, Roller Friction Surface/grease, Link Pin/oil, Pedal Fitting Point/oil, Grease Nipple/grease Troubleshooting If the table does not lift when pressing lifting pedal several times: • Adjust the control valve located on...
- Page 4 LIFT TABLE PARTS LIST Part Order Part Order Part Order Description Qty. Description Qty. Description Qty. MK239 Brake MK261 Connecting Rod 101M MK217 Handle Grip MK240 Washer MK262 Cushion MK218 Control Handle MK241 Bearing MK263 Bolt MK219 Elastic Pin MK264 Washer MK242 Wheel...
- Page 5 HYDRAULIC CYLINDER PARTS LIST Part Order Part Order Part Order Description Qty. Description Qty. Description Qty. 239B MK320 Seal Washer MK282 Seal Washer MK301 Lever Plate MK283 Pump Cylinder MK302 240B MK321 Cylinder 241B MK322 Housing MJ701 Dust Ring MK303 Elastic Washer MK323 Bolt...
