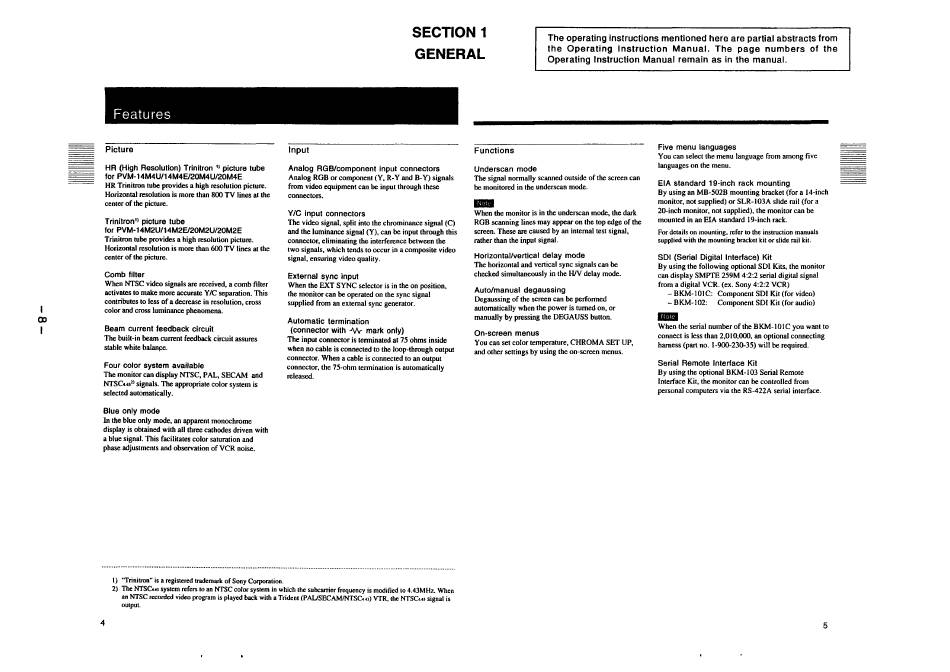

SECTION 1
GENERAL
The operating instructions mentioned here are partial abstracts from
the Operating
Instruction
Manual.
The page numbers
of the
Operating Instruction Manual remain as in the manual.
Features
HR (High Resolution)
Trinitron
11
picture tube
for PVM-14M4U/14M4E/20M4U/20M4E
HR Trinitron tube provides a high resolution picture.
Horizontal resolution is more than 800 TV lines at the
center of the picture.
Trinitron''
picture tube
for PVM-14M2U/14M2E/20M2U/20M2E
Trinitron tube provides a high resolution picture.
Horizontal resolution is more than 600 TV lines at the
center of the picture.
Comb filter
When NTSC video signals
are
received, a comb filter
activates to make more accurate Y/C separation. This
contributes to less of a decrease in resolution, cross
color and cross luminance phenomena.
Beam
current
feedback
circuit
The built-in beam current
feedback
circuit assures
stable white balan~e.
Four color
system
available
The monitor can display NTSC, PAL, SECAM and
NTSCw
21
signals. The appropriate color system is
selected automatically.
Blue only mode
In the blue only mode, an apparent monochrome
display is obtained with all three cathodes driven with
a blue signal. This facilitates color saturation and
phase adjustments and observation of VCR noise.
1) 'Trinilron" is a registered trademark of Sony Corporation.
Input
Analog RGB/component
input connectors
Analog RGB or component (Y, R-Y and B-Y) signals
from video equipment can be input through these
connectors.
Y/C input connectors
The video signal, split into the chrominance signal
(C)
and the luminance signal (Y), can be input through this
connector, eliminating the interference between the
two signals, which tends to occur in a composite video
signal, ensuring video quality.
External
sync input
When the EXT SYNC selector is in the on position,
the monitor can be operated on the sync signal
supplied from an external sync generator.
Automatic
termination
(connector
with J\/1,- mark only)
The input connector is terminated al 75 ohms inside
when no cable is connected to the loop-through output
connector. When a cable is connected to an output
connector, the 75-ohm termination is automatically
released.
2) The NTSCu, system refers to an NTSC color system in which the subcarrier frequency is modified to 4.43MHz. When
an NTSC recorded video program is played back with a Trident (PAUSECAMJNTSC. o) VTR, the NTSC..o signal is
oulput.
4
Functions
Underscan
mode
The signal normally scanned outside of the screen can
be
monitored in the underscan mode.
11111111
When the monitor is in the underscan mode, the dark
RGB scanning lines may appear on the top edge of the
screen. These
are
caused by an internal test signal,
rather than the input signal.
Horizontal/vertical
delay mode
The horizontal and vertical sync signals can be
checked simultaneously in the HIV delay mode.
Auto/manual
degaussing
Degaussing of the screen can be performed
automatically when the power is turned on, or
manually by pressing the DEGAUSS bulton.
On-screen
menus
You can set color temperature, CHROMA SET UP,
and other settings by using the on-screen menus.
Five menu languages
You can select the menu language from among five
languages on the menu.
EIA standard
19-inch rack mounting
By using an MB-502B mounting bracket (for a 14-inch
monitor, not supplied) or SLR-I 03A slide rail (for a
20-inch monitor, not supplied), the monitor can be
mounted in an EIA standard 19-inch rack.
For details on mounting, refer to the instruction manuals
supplied with the mounting bracket kit or slide rail kit.
SDI (Serial Digital Interface)
Kit
By using the following optional SDI Kits, the monitor
can display SMPTE 259M 4:2:2 serial digital signal
from a digital VCR. (ex. Sony 4:2:2 VCR)
-BKM-IOIC:
Component SDI Kit (for video)
- BKM-102:
Component SDI Kit (for audio)
IE!I
When the serial number of the BKM-IOIC you want to
connect is less than 2,010,000, an optional connecting
harness (part no. 1-900-230-35) will be required.
Serial Remote
Interface
Kit
By using the optional BKM-103 Serial Remote
Interface Kit, the monitor can be controlled from
personal computers via the RS-422A serial interface.
