C,,.)
I

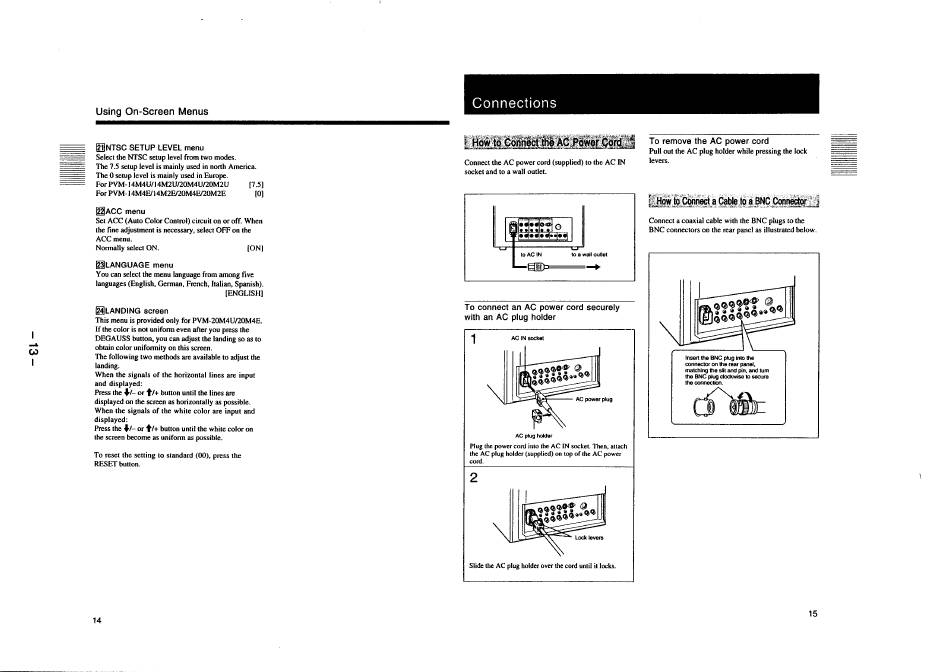

Using On-Screen Menus
~NTSC SETUP LEVEL
menu
Select the NTSC setup level from two modes.
The 7.5 setup level is mainly used in north America.
The
O
setup level is mainly used in Europe.
For PVM-l4M4U/l 4M2U/20M4U/20M2U
[7 .5)
For PVM-l 4M4E/l 4M2E/20M4E/20M2E
[OJ
~ACC
menu
Set ACC (Auto Color Control) circuit on or off. When
the fine adjustment is necessary, select OFF on the
ACCmenu.
Normally select ON.
[ON]
~LANGUAGE
menu
You can select the menu language from among five
languages (English, German, French, Italian, Spanish).
[ENGLISH)
~LANDING screen
This menu is provided only for PVM-20M4U/20M4E.
If the color is not uniform even after you press the
DEGAUSS button, you can adjust the landing so as to
obtain color uniformity on this screen.
The following two methods
are
available to adjust the
landing.
When the signals of the horizontal lines are input
and displayed:
Press the
♦I-
or
ti+
button until the lines are
displayed on the screen as horizontally as possible.
When the signals of the white color are input and
displayed:
Press the
♦1-
or ti+ button until the white color on
the screen become as uniform as possible.
To reset the setting to standard
(00),
press the
RESET button.
14
Connections
i:~'qJ1fi~9.00llf46Jl1~B~BI
Connect the AC power cord (supplied) to the AC IN
socket and to a wall outlet.
toACtN
to a wall ouUet
~
...
To connect an AC power cord securely
with an AC plug holder
1
AC
IN
socket
AC plug holder
Plug the power cord into the AC IN socket. Then, attach
the AC plug holder (supplied) on top of the AC power
cord.
2
Slide the AC plug holder over the cord until it locks.
To remove the AC power cord
Pull out the AC plug holder while pressing the lock
levers.
illiiit~M~L~
~~J2!~9:&C>JJnei<ii_lj
Connect
a
coaxial cable with the BNC plugs to the
BNC connectors on the rear panel as illustrated below.
L
0<0>
Q)
m ~~':':
~~
....
~~
®QQ~~
Insert
the
BNC plug Into
the
connector on lhe rear panel.
matching the slit and pin,
and
tum
the
BNC
P,ug clockwise
to
secure
the connection.
a&
15
