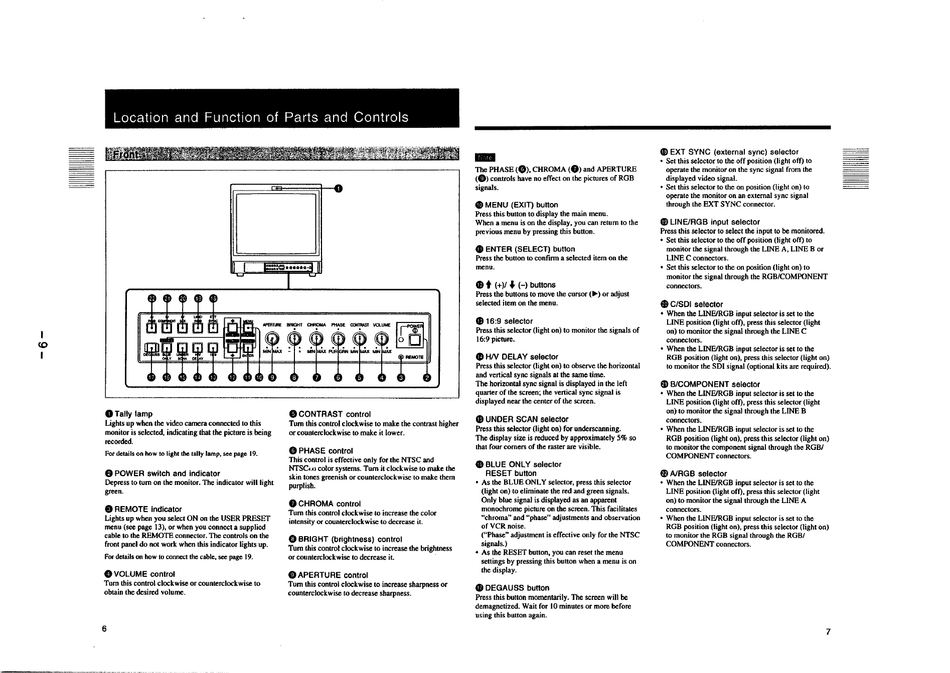

Location and Function of Parts and Controls
0Tally
lamp
Lights up when the video camera connected to this
monitor is selected, indicating that the picture is being
recorded.
For details on how to light the tally lamp, see page 19.
8
POWER switch and indicator
Depress to tum on the monitor. The indicator will light
green.
8
REMOTE indicator
Lights up when you select ON on the USER PRESET
menu (see page 13), or when you connect a supplied
cable to the REMOTE connector. The controls on the
front panel do not work when this indicator lights up.
For details on how to connect the cable, see page 19.
0
VOLUME control
Tum this control clockwise or counterclockwise to
obtain the desired volume.
6
8
CONTRAST control
Tum this control clockwise to make the contrast higher
or counterclockwise to make it lower.
C,
PHASE control
This control is effective only for the NTSC and
NTSCw color systems. Tum it clockwise to make the
skin tones greenish or counterclockwise to make them
purplish.
8
CHROMA control
Tum this control clockwise to increase the color
intensity or counterclockwise to decrease
it.
0
BRIGHT (brightness) control
Tum this control clockwise to increase the brightness
or counterclockwise to decrease it.
Ci)
APERTURE control
Tum this control clockwise to increase sharpness or
counterclockwise to decrease sharpness.
-
T he PHASE (0). CHROMA (8) and APERTURE
(Ci))
controls have no effect on the pictures of ROB
signals.
GI
MENU (EXIT) button
Press this button to display the main menu.
When a menu is on the display, you can return to the
previous menu by pressing this button.
CD
ENTER (SELECT) button
Press the button to confirm a selected item on the
menu.
8
t
(+)/ ♦
(-)
buttons
Press the buttons to move the cursor (
►)
or adjust
selected item on the menu.
G)
16:9 selector
Press this selector (light on) to monitor the signals of
16:9 picture.
CD
HN DELAY selector
Press this selector (light on) to observe the horizontal
and vertical sync signals at the same time.
The horizontal sync signal is displayed in the left
quarter of the screen; the vertical sync signal is
displayed near the center of the screen.
$
UNDER SCAN selector
Press this selector (light on) for underscanning.
The display size is reduced by approximately 5% so
that four comers of the raster are visible.
GI
BLUE ONLY selector
RESET button
• As the BLUE ONLY selector, press this selector
(light on) to eliminate the red and green signals.
Only blue signal is displayed as an apparent
monochrome picture on the screen. This facilitates
"chroma" and "phase" adjustments and observation
of VCR noise.
("Phase" adjustment is effective only for the NTSC
signals.)
• As the RESET bunon, you can reset the menu
sellings by pressing this bunon when a menu is on
the display.
f8
DEGAUSS button
Press this bunon momentarily. The screen will
be
demagnetized. Wait for IO minutes or more before
using this button again.
GI
EXT SYNC (external sync) selector
• Set this selector to the off position (light off) to
operate the monitor on the sync signal from the
displayed video signal.
• Set this selector to the on position (light on) to
operate the monitor on an external sync signal
through the EXT SYNC connector.
GI
LINE/RGB input selector
Press this selector to select the input to be monitored.
• Set this selector to the off position (light off) to
monitor the signal through the LINE A, LINE B or
LINE C connectors.
• Set this selector to the on position (light on) to
monitor the signal through the ROB/COMPONENT
connectors.
9
C/SDI selector
• When the LINE/ROB input selector is set to the
LINE position (light off), press this selector (light
on) to monitor the signal through the LINE C
connectors.
• When the LINE/ROB input selector is set to the
ROB position (light on), press this selector (light on)
to monitor the SDI signal (optional kits are required).
&,
B/COMPONENT selector
• When the LINE/ROB input selector is set to the
LINE position (light off), press this selector (light
on) to monitor the signal through the LINE B
connectors.
• When the LINE/ROB input selector is set to the
ROB position (light on), press this selector (light on)
to monitor the component signal through the ROB/
COMPONENT connectors.
fi
A/RGB selector
• When the LINE/ROB input selector is set to the
LINE position (light off), press this selector (light
on) to monitor the signal through the LINE A
connectors.
• When the LINE/ROB input selector is set to the
ROB position (light on), press this selector (light on)
to monitor the ROB signal through the ROB/
COMPONENT connectors.
7
