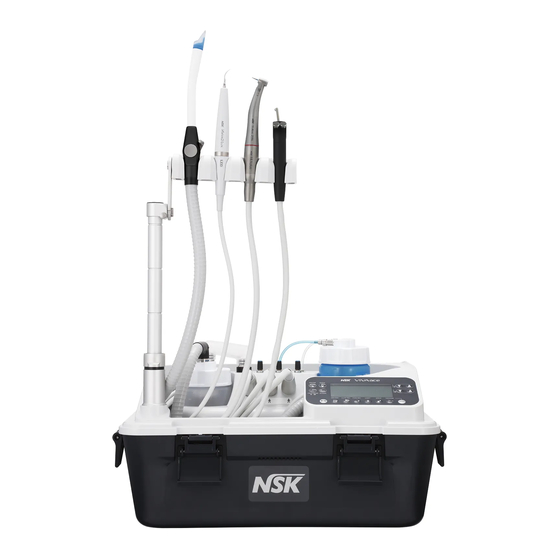

NSK VIVA ace Quick Operation Manual

Hide thumbs Also See for VIVA ace:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIVA ace and is the answer not in the manual?

Questions and answers

Related Manuals for NSK VIVA ace

Summary of Contents for NSK VIVA ace

  • Page 2: Table Of Contents

    VIVA ace Quick Operation Guide Contents 1. Installing the Holder Bar and Arm ......2 12. Ultrasonic Scaler ..........14 2. Connecting the Motor, the Scaler, and the Syringe ...3 13. Light Probe ............15 3. Installing the Vacuum ..........4 14. Vacuum ..............16 4.

  • Page 3: Installing The Holder Bar And Arm

    1. Installing the Holder Bar and Arm Pull down the Holder Bar Lock and stretch the Holder Bar Press the Holder Arm Lock and turn the holder forward. upward. The position can be set at four points. The position can be set at four points. Holder Bar Lock Holder Arm Lock...

  • Page 4: Connecting The Motor, The Scaler, And The Syringe

    2. Connecting the Motor, the Scaler, and the Syringe Insert the syringe nozzle into the syringe. Scaler Motor Syringe Connect each connector with Place the Motor, the Scaler and ▲ mark upside. the Syringe on the Holder.

  • Page 5: Installing The Vacuum

    3. Installing the Vacuum After checking that the Vacuum Bottle lid is tightly closed, Insert the Vacuum Valve to the Vacuum Hose, then insert place the Vacuum Bottle in the Control Unit. Insert the the Suction Tube to the Vacuum Valve. Vacuum Junction Hose and the Vacuum Hose to the Vacuum Bottle Lid until they meet the end.

  • Page 6: Installing The Water Bottle

    4. Installing the Water Bottle Fill with drinking water until it reaches Insert the Water Plug to the lid until hearing a clicking sound. below the maximum line (350 ml). Then tightly close the Water Bottle lid. Water Plug ( OUT ) Water Plug ( IN ) Tighten [ Blue Tube ]...

  • Page 7: Connecting The Foot Control

    5. Connecting the Foot Control 6. Connecting the AC Power Cord After turning the Power Switch OFF ( to O side ) , Insert the FC-76S Foot Control Plug (Black) into the Connector on the right. Insert the FC-70S Foot Control Plug (White) into the Connector on the left. insert the AC Power Cord into the inlet until it Insert each plug until it meets the end.

  • Page 8: Check Before Treatment

    Perform the following checks before using the product on a patient to confirm that there are no abnormalities. If abnormal vibration, noise, or overheating is detected when using or checking, stop using the product and contact your Authorized NSK Dealer.

  • Page 9: Control Panel

    8. Control Panel...
  • Page 10 Selecting the suitable mode and the gear ratio ( 1:1,1:5 ) for Selecting the Vacuum suction power in three levels. general cutting and tooth surface cleaning. Selecting Linking/Unlinking of the Vacuum with Motor and Selecting the suitable mode for root canal treatment. Scaler.

  • Page 11: Liquid Crystal Display Of The Control Panel

    9. Liquid Crystal Display of the Control Panel Ⓐ Ⓑ Ⓞ Ⓒ Ⓓ Ⓝ Ⓔ Ⓕ Ⓖ Ⓗ Ⓘ Ⓙ Ⓚ Ⓛ Ⓜ...
  • Page 12 Displays the ENDO Mode. Displays the Vacuum suction power in three levels. Displays the gear ratio. Displays Linking/Unlinking of the Vacuum with Motor and Displays the MOTOR Mode. Scaler. Displays the LIGHT PROBE Mode. Displays the set upper limit torque value during the ENDO Displays during the SCALER operation.

  • Page 13: Motor

    10. Motor Set the speed Select the gear ratio Speed ( min Gear Ratio 1 : 5 5,000 - 200,000 1 : 1 1,000 - 40,000 Activate/Stop the Motor Water ON/OFF Two ways to activate/stop the Motor are shown below : ①FC-76S Foot Control ②Manual Operation ON/OFF Press more than 2 seconds...

  • Page 14: Motor

    11. Motor <Endodontic treatment> Change to ENDO Mode Speed Setting 100 - 5,000 min Select the program Torque Setting 0.3 - 3.0 N・cm Activate/Stop the Motor Water ON/OFF Two ways to activate/stop the Motor are shown below : ①FC-76S Foot Control Light ON/OFF ②Manual Operation ON/OFF Press more than 2 seconds...

  • Page 15: Ultrasonic Scaler

    12. Ultrasonic Scaler Select the treatment mode Power Setting 1 to 10 P : PERIO Mode Set it below the maximum E : ENDO Mode power of the tip. G : GENERAL Mode Activate/Stop the Scaler Two ways to activate/stop the Scaler are shown below : ①...

  • Page 16: Light Probe

    13. Light Probe Connect the Light Probe Light Quantity Setting Adjustments can be made in increments and is directly reflected in the light quantity of the MOTOR Mode. Select the Light Probe Mode Light ON/OFF...

  • Page 17: Vacuum

    14. Vacuum 15. Sync Mode (Synchro Mode) The Vacuum can be synchronized with the Motor and the Select the suction force Scaler ( except during Light Probe Mode ) . It can be set individually at each Mode ( MOTOR, ENDO, and SCALER ) , however the suction force value will remain the same.

  • Page 18: Way Syringe

    17. When the Water Bottle is empty or the Vacuum 16. 3way Syringe Bottle is filled with liquid during use Syringe Water Adjustment Turn off the Power Switch (○side). ( The water amount can be adjusted by turning the Water Adjuster. ) Dispose of the sucked liquid ( saliva, blood, etc.) Syringe ON/OFF in the Vacuum Bottle.

  • Page 19: Storage Procedure

    18. Storage Procedure After closing the Vacuum Valve Lever, Store the Vacuum Bottle after disposing of the sucked liquid (saliva, blood, remove the Handpiece, the Syringe etc.). When storing without disposing of the sucked liquid, put caps on the Nozzle, and the Suction Tube and Vacuum Bottle and the Vacuum Hose.
  • Page 20 Check the URL or the QR code Drop the bundled cords Wind the rest of the cords Point 1 Point 2 and hoses along the right wall. and hoses clockwise. below. http://www.nsk-dental.com/ support/videos/...
  • Page 21 18. Storage Procedure (continued) Release the Holder Arm Lock, support Pull down the holder bar slowly while Set the Top Case on the Control Unit the holder to prevent the cords and supporting the holder to prevent the and lock the Buckles (4 places). hoses from dropping, and then turn cords and hoses from dropping.
  • Page 22 Store the Foot Control and the Power Put the Top Cover Case on. Set the Shoulder Belt securely to the Cords as in the illustration below. Belt Hook. Then, carry the device hung the Shoulder Belt on the shoulder.

  • Page 23: Troubleshooting

    19-1. Problem and Solutions When a problem is detected, check the following again. If none of these is applicable or if the trouble is not remedied even after an action has been taken, contact your Authorized NSK Dealer. Problem Cause Remedy Insufficient connection of the power cord.
  • Page 24 Problem Cause Remedy Water Supply Plug/Air supply Plug Water is not enough. Check the connection of the Water Plug. is not connected properly. Water Supply Plug/Air supply Plug Check the connection of the Water Plug. is not connected properly. No water/air is supplied from the Syringe.
  • Page 25 If the error code is displayed again, refer to the following table and take appropriate actions. If none of these is applicable, a failure of this product is suspected. Contact your Authorized NSK Dealer.
  • Page 26 2018.08.10 002...
