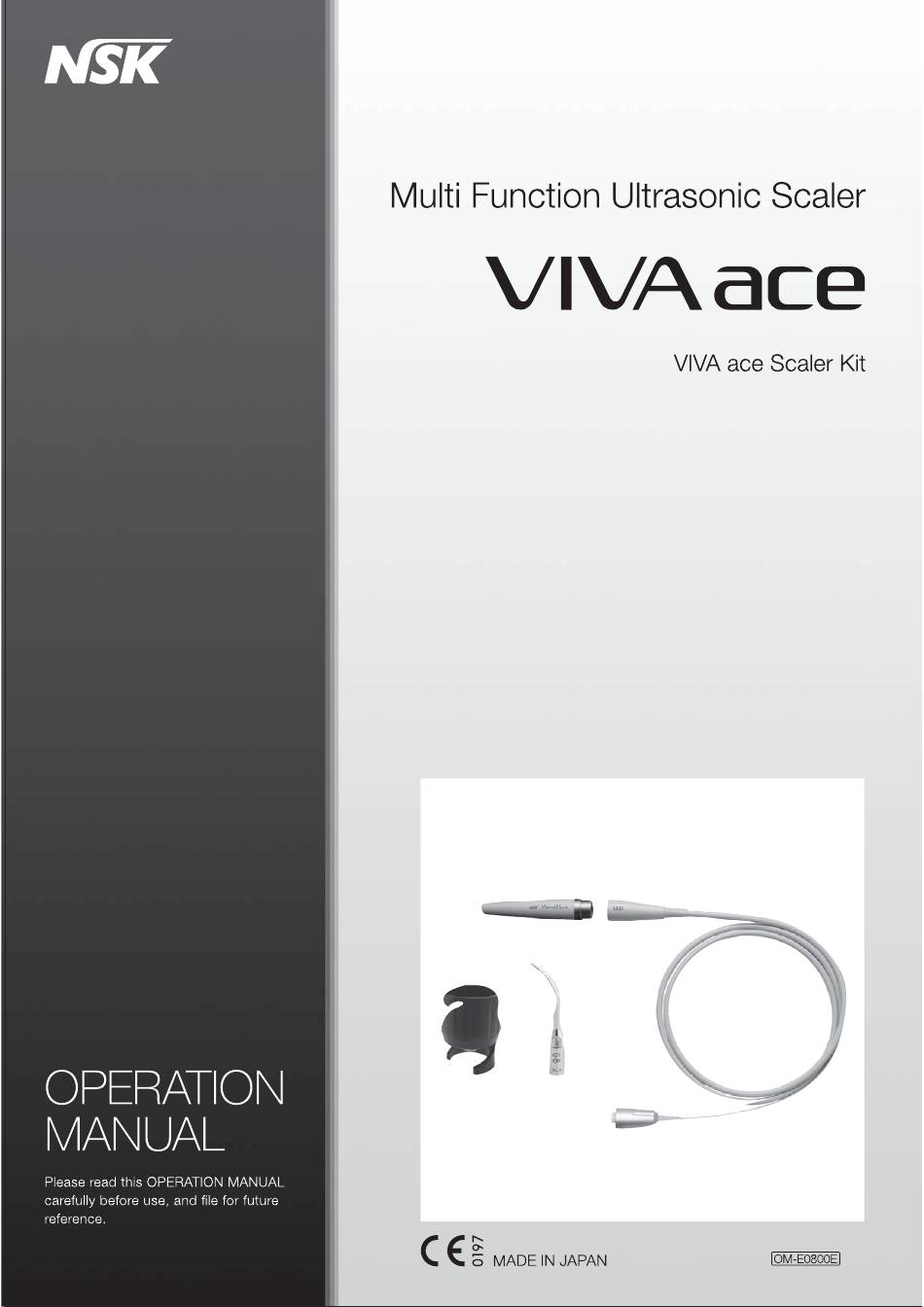

NSK VIVA ace Operation Manual

Multi function ultrasonic scaler. scaler kit
Hide thumbs Also See for VIVA ace:
Table of Contents

Advertisement

Quick Links

Download this manual
000

Advertisement

Table of Contents
loading

Related Manuals for NSK VIVA ace

Summary of Contents for NSK VIVA ace

  • Page 2: Table Of Contents

    Thank you for purchasing VIVA ace Scaler Kit. Please read this Operation Manual and the VIVA ace Basic Set Operation Manual carefully before use for operating instructions and care and maintenance guidelines so that you can use it for many years to come through a correct use.

  • Page 3: User And Indications For Use

    User and Indications for Use User : Dentist, Dental hygienist Indications for Use : The ultrasonic scaler is intended for use in dental applications such as scaling, root canal treatment, periodontal and cavity preparation by generating ultrasonic waves. Precautions for handling and operation Please read these precautions carefully and use only as intended or instructed.
  • Page 4 Precautions for handling and operation WARNING • Do not attempt to disassemble the product nor tamper with the mechanism except as recommended by NSK in this Operation Manual. This may result in an injury, electric shock or fire. • Do not touch the connection of the Handpiece and the Scaler Cord. This could cause an electric shock.
  • Page 5 Contact the Authorized NSK Dealer for repairing. The service staff of the company will take care of the product in accordance with the service manual. • No special training is required for this device. • EMC ( Electromagnetic compatibility ) has been evaluated with the VIVA ace Control Unit and conforms to the requirements.

  • Page 6: Package Contents

    Package Contents Part Name Order Code Quantity Remarks Handpiece E351050 Optic Scaler Cord Z1140055 Optic G6,G8 Refer to the Tip Guide Tip Wrench Z221076 CR-10 Tip Holder Z221A080 O-ring D0310020080 For Scaler Cord Cleaning Wire Z144095 *Not in the illustration Tip Card *Not in the illustration Tip Guide...

  • Page 7: Preparation For Use

    Preparation for Use Connecting the Scaler Cord and VIVA ace Control Unit Action Fig. Aligning the mark of the Scaler mark Loosen Cord plug and the shape of the Tighten terminal as shown below, insert the plug deep into the Scaler connector.

  • Page 8: Mounting The Tip

    Be careful not to touch the gum, mucous membrane, or the skin directly with the Tip to prevent injuries and burns. • Be sure to use genuine Tips manufactured by NSK. Use of other products may cause problems listed below and unexpected accidents. · Vibration problem caused by use of improper screws.
  • Page 9 Preparation for Use CAUTION • Pay attention to the Scaler Cord not to be twisted when tightening the Tip. • Be careful of the pointed end of the Tip when replacing a Tip that is longer than the Tip Wrench. •...

  • Page 10: Using The Tip Card

    Preparation for Use Using the Tip Card Measure the length of the Tip end by comparing with the corresponding Tip illustration and check the replacement time. It is recommended to replace the Tip when the length of the Tip becomes “Yellow Line: 1mm worn”...

  • Page 11: Check Before Treatment

    Follow the instruction on operation manual for VIVA ace Basic Set. ( Reference : 5-10 Check before treatment ) Operation Procedure Follow the instruction on the operation manual for VIVA ace Basic Set. ( Reference : 6 Operation Procedure ) Post-use Maintenance Preparation for Maintenance Action Fig.
  • Page 12 Post-use Maintenance WARNING • Failure to properly maintain as below, the Scaler Handpiece and the Tip may cause infection, product failure, overheating leading to burn injuries: - Be sure to clean the Scaler Handpiece, and Tip immediately (within 30 minitues) after use to remove residue.

  • Page 13: Maintenance For Between Each Patient

    Post-use Maintenance Maintenance for between each patient Cleaning and Disinfection of outside of the Scaler Handpiece 6-2-1 and the Scaler Cord, and Replacing the Scaler Handpiece Action Fig. < Cleaning > Remove the all debris on the surface of the Scaler Handpiece and the Scaler Cord with a wipes (Minuten Wipes: ALPRO).

  • Page 14: Maintenance After Close

    Post-use Maintenance * Be sure to clean, disinfect and sterilize a used Scaler Handpiece and the Tip, refer to section "6-3-2 Cleaning and Disinfection of the inside of the Scaler Handpiece (Including the Water Line)" and "6-4 Sterilization". * Be sure to clean, disinfect and sterilize a used Tip, refer to section "6-3-5 Cleaning of the outside of the Tip and the Tip Wrench", "6-3-6 Cleaning and Disinfection of the inside of the Tip (Including the Water Line)"...
  • Page 15 Post-use Maintenance Cleaning and Disinfection of outside of the Scaler Handpiece and 6-3-1 the Scaler Cord, and Replacing the Scaler Handpiece (Continued) Action Fig. < Cleaning (Continued) > Wipe the residual moisture on the surface of the Scaler Handpiece with a dry cloth. After cleaning, under appropriate lighting (500 lx or higher), inspect the Scaler Handpiece for contamination.
  • Page 16 Post-use Maintenance Manual Cleaning and Disinfection (Including the 6-3-2-1 Water Line) (In case of connecting to the adapter) WL-Adapter 01 (ALPRO) is to be prepared by customers. Cleaning and Disinfection should be done in the cleaning tank. Action Fig. Attach the WL-Adapter 01 (ALPRO) to the Water WL-clean (ALPRO) and contact the Water Connector...
  • Page 17 Post-use Maintenance Manual Cleaning and Disinfection (Including the Water 6-3-2-1 Line) (In case of connecting to the adapter)( Continued) Action Fig. Attach the WL-Adapter 01 (ALPRO) to the Water WL-cid (ALPRO) and contact the Water Connector Connector on the Scaler Handpiece to the end of the WL-Adapter 01 (ALPRO).
  • Page 18 Post-use Maintenance Action Fig. Discharge the disinfect solution from the Water · When using the WL-dry (ALPRO): Line on the Scaler Handpiece. For details, confirm the operation manuals issued by manufacturer. · When using the WL-dry (ALPRO): Spray time: 3 seconds WL-dry (ALPRO) Number of spray: 1 time...
  • Page 19 Post-use Maintenance Automated Cleaning and Disinfection 6-3-2-2 (Including the Water Line) CAUTION • Scaler Cord cannot be cleaned with washer-disinfector. • Use a cleaning and disinfection device (washer-disinfector) complying with DIN EN ISO 15883 (e.g. Miele washer-disinfector G7781 / G7881; Melag Melatherm), that operates with a maximum pH value of 10.5 (e.g.
  • Page 20 Post-use Maintenance Action Fig. Remove the Scaler Handpiece from the Adapter ISO 15883-1 (ADS 2: Miele/73900: Melag) of the washer- disinfector. Wipe the residual moisture of the Scaler Handpiece with a dry cloth. Or the blow it off with filtered clean compressed air (≤0.35MPa) until there is no moisture in the interior and exterior.
  • Page 21 CAUTION • Do not use a sharp tool to clean the Glass Rod. It could damage the glass and reduce the light transmission. When this happens, please contact your Authorized NSK Dealer. 6-3-4 Cleaning and Disinfection of the Scaler Cord Action Fig.
  • Page 22 Post-use Maintenance Action Fig. <Disinfection> Wipe the surface of the Scaler Cord and the Holder with the disinfectant wipes (Minuten Wipes: ALPRO). Minuten Wipes: ALPRO Place the Scaler Cord on the Holder. 6-3-5 Cleaning of the outside of the Tip and the Tip Wrench CAUTION •...
  • Page 23 Post-use Maintenance 6-3-5 Cleaning of the outside of the Tip and the Tip Wrench (Continued) Action Fig. < Cleaning (Continued) > Clean the screw hole of the Tip and the Tip holding hole inside the Tip Wrench under running water with the Cleaning Wire (Z144095) for 20 seconds or more.
  • Page 24 Post-use Maintenance Cleaning and Disinfection of the inside of the Tip 6-3-6 (Including the Water Line) 6-3-6-1 Manual Cleaning and Disinfection CAUTION • Before using an alcoholic product for internal disinfection, the Tip must first be cleaned with a non- protein-fixing product (e.g.
  • Page 25 Post-use Maintenance 6-3-6-1 Manual Cleaning and Disinfection (Continued) Action Fig. < Cleaning and Disinfection of the inside of the Tip (Including the Water Line) (Continued) > Remove the from the WL-clean (ALPRO). Place the onto the tray for at least 1 minute WL-clean (ALPRO) to take effect.
  • Page 26 Post-use Maintenance Action Fig. Remove the from the WL-cid (ALPRO). Place the onto the tray, then spray the WL- cid to all over the Tip. WL-cid (ALPRO) Wait 2 minutes to take effect. Push in the to the WL-dry (ALPRO) or the ·...
  • Page 27 Post-use Maintenance 6-3-6-1 Manual Cleaning and Disinfection (Continued) Action Fig. < Cleaning and Disinfection of the inside of the Tip (Including the Water Line) (Continued) > Remove the from the WL-dry (ALPRO) or the · When using the WL-dry (ALPRO): WL-Blow (ALPRO).
  • Page 28 Post-use Maintenance Action Fig. Attach the Tip to the adapter (Miele: A814). Attach the adapter (Miele: A814) with the Tip ISO 15883-1 and Tip Wrench to the washer-disinfector. Clean and disinfect the Tip and the Tip Wrench. ISO 15883-1 After removing the adapter (Miele: A814) with ISO 15883-1 the Tip and the Tip Wrench from the washer- disinfector, then remove the Tip from the adapter...
  • Page 29 Post-use Maintenance 6-3-6-2 Automated Cleaning and Disinfection (Continued) Action Fig. Under appropriate lighting (500 l x or higher), inspect the Tip and the Tip Wrench for contamination. ≥ 500 lx If any visible contamination remains, repeat the process until it is visually clean. Be sure to repeat from the procedure No.

  • Page 30: Sterilization

    ISO 11607-1. NOTICE • NSK recommends Class B sterilizer as stated in EN 13060. • For detailes, confirm the operation manual issued by manufacturer of the sterilizer. Apply autoclave sterilization for the following parts. After each patient treatment, sterilize the parts as follows.
  • Page 31 Post-use Maintenance Action < Preparation before sterilization > Insert the Scaler Handpiece and/or the Tip Wrench individually into a sterilization case or sterilization pouch that confirms to ISO 11607-1, and seal the pouch or use the sterilization cassette. Insert the Scaler Handpiece, Tip and the Tip Wrench individually into a pouch that confirms to ISO 11607-1, and seal the pouch.
  • Page 32 Post-use Maintenance Maintenance of the Water Line for Scaler Handpiece and the Scaler Cord (In case of Connecting to the Control Unit) Cleaning and Disinfection should be done in the cleaning tank. CAUTION • Be sure to Clean and Disinfect the Scaler Handipiece and the Scaler Cord before maintenance of the Water Line.

  • Page 33: Scaler Handpiece And The Scaler Cord

    Post-use Maintenance Disinfection of the Water Line of the 6-5-2 Scaler Handpiece and the Scaler Cord Action Fig. Push the SCALER Key. Turn on the SPRAY Key to irrigation. Hold the Scaler Handpiece and the Scaler Cord in the cleaning tank. Press the ON/OFF Key for 2 seconds and activate 10 seconds or more to confirm that the disinfectant solution...
  • Page 34 Post-use Maintenance Rinsing of the Water Line of the Scaler 6-5-3 Handpiece and the Scaler Cord after Disinfection Action Fig. Put 250 mL of drinking water in the Water Bottle. Tightly close the Water Bottle Lid and place the Water Bottle Drinking water in the Control Unit.

  • Page 35: Maintenance

    Post-use Maintenance Rinsing of the Water Line of the Scaler Handpiece and the 6-5-3 Scaler Cord after Disinfection (Continued) Action Fig. Wipe the surface of the Scaler Handpiece and the Scaler Cord with the disinfectant wipes (Minuten Wipes: ALPRO). Disconnect the Scaler Handpiece from the Minuten Wipes (ALPRO) Scaler Cord then attach the sterilized Scaler Handpiece to the Scaler Cord and place it on the...

  • Page 36: Periodical Maintenance Checks

    Maintenance Periodical Maintenance Checks Every 3 months perform periodical maintenance checks, referring to the check sheet below. If any abnormalities are found, contact your Authorized NSK Dealer. Points to check Details Mount the Tip and check if there is any vibration, noise or generation of heat.
  • Page 37 Troubleshooting Problem Cause Remedy A failure of the vibrator in the Weak/No vibration Contact your NSK Dealer. Handpiece. Set the power below the maximum power The power setting is not The Tip is broken or bent appropriate for the mounted indicated on the Tip Power Guide or the Tip Tip.
  • Page 38 Dirt adheres to the threads of Cleaning is needed. the Handpiece or the Tip. The threads of the Handpiece Contact your NSK Dealer. are worn due to long-time use. The O-ring at the connection of Replace the O-ring with a new one.

  • Page 39: Specifications

    Specifications Specifications VA 170 Model 28 - 32 kHz Drive Frequency Maximum Output White LED Light Temperature Humidity Pressure 0 - 40ºC 30 - 75%* Use environment Transportation and storage -10 - 50ºC 10 - 85%* 500 - 1060hPa environment *No condensation.

  • Page 40: Symbol

    10-1 Warranty NSK products are warranted against manufacturing errors and defects in materials. NSK reserves the right to analyze and determine the cause of any problem. Warranty is voided should the product be not used correctly or for the intended purpose or has been tampered with by unqualified personnel or has had non NSK parts installed.
  • Page 41 2018.08.10 002...
