• Now lift the SmartMaster carefully backwards down off the pallet.
• Now lift the SmartMaster carefully backwards down off the pallet.
• Loosen the clamp fasteners on the top panel, open the maintenance door and
• Loosen the clamp fasteners on the top panel, open the maintenance door and
check that the filter cartridges are undamaged and fitted properly. Please refer
check that the filter cartridges are undamaged and fitted properly. Please refer
to the notes under Section 7.3 Changing Filters.
to the notes under Section 7.3 Changing Filters.
Item Designation
3 Clamp fastener
4 Maintenance door
5 Filter set
5.1 Prefilter
5.2 Prefilter cassette
5.3 Main filter
11 Handle bar
13 Swivel castor with brake (front wheel)
14 Rear wheel
Art. No.: 150 2220
Art. No.: 150 2220
Technical changes and errors excepted.
Technical changes and errors excepted.
KEMPER SmartMaster Operating Instructions - EN

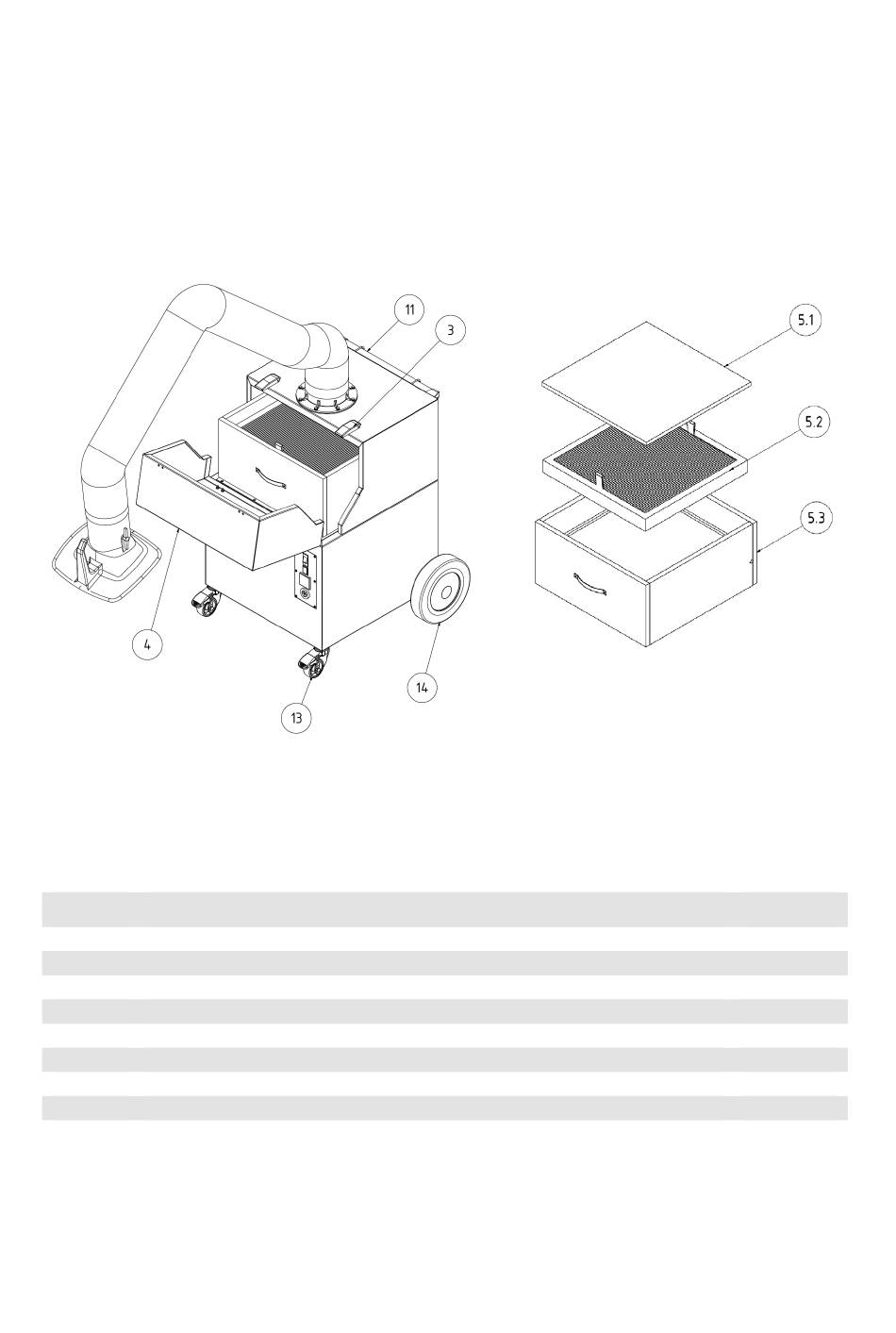

Figure 3, Unpacking and Assembly
