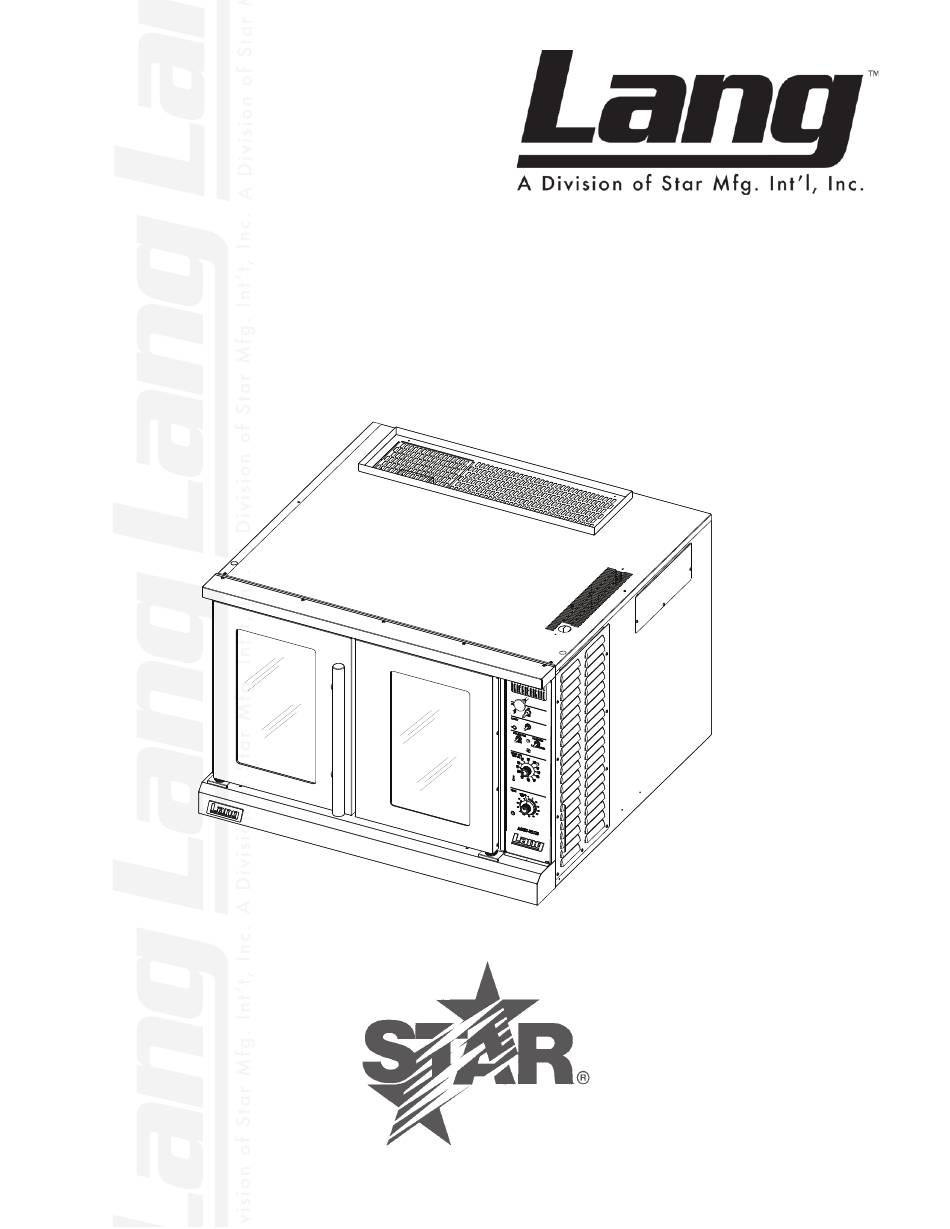

ELECTRIC FULL SIZE
COMPUTERIZED
CONVECTION OVEN
ECOD-AP
ECOF-AP
Installation and
Operation
Instructions
2M-W488 Rev. D 2/5/09
IL1519
ECOF-AP


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECOD-AP and is the answer not in the manual?

Questions and answers

Related Manuals for Lang ECOD-AP

Summary of Contents for Lang ECOD-AP

  • Page 1 ELECTRIC FULL SIZE COMPUTERIZED CONVECTION OVEN ECOD-AP ECOF-AP Installation and Operation Instructions 2M-W488 Rev. D 2/5/09 IL1519 ECOF-AP...
  • Page 2 REPAIRS SHOULD BE DONE BY AUTHORIZED SERVICE PERSONNEL ONLY. NOTICE Using any part other than genuine Lang factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change speci cations and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.

  • Page 3: Table Of Contents

    PROBLEMS, QUESTIONS or CONCERNS Before you proceed consult you authorized Lang service agent directory Call the Lang Technical Service & Parts Department at 1-800-807-9054. TABLE OF CONTENTS Specifications ......4 Equipment Description ..

  • Page 4: Specifications

    AMPS PHASE NEUTRAL KW TOT. WIRE 1 PH WIRE 3 PH Previous Model 11.5 6 GA. 8 GA. 208V 1 GA. 4 GA. ECOD-AP 50/60 ECCO-APXD-C 11.5 6 GA. 10 GA. 240V 2 GA. 4 GA. ECOD-AP-480V 480V 11.5 15.6 15.6...

  • Page 5: Equipment Description

    The ECOD oven cavity dimensions are 29” (72.5 cm) Wide, 20” (50.84 cm) High, 27” (53.38 cm) Deep. The interior of the oven is constructed of porcelainized stainless steel. Operation The ECOD-AP and ECOF-AP ovens are forced air convection ovens with a vented oven cavity. The air is driven by a 1/3 HP fan motor. Controls Easy to use manual control knobs.

  • Page 6: Unpacking

    UNPACKING Receiving the Oven Upon receipt, check for freight damage, both visible and concealed. . Visible damage should be noted on the freight bill at the time of delivery and signed by the carrier’s agent. Concealed loss or damage means it does not become apparent until the merchandise has been unpacked.

  • Page 7: Installation

    INSTALLATION Leg Installation Legs are available separately for both the single and double deck installations. Single deck installations require a 27-inch leg or equipment cart. Double deck installations . require 6-inch legs or casters. All these are available separately. Place some cardboard on the ground and with assistance carefully lay the unit on its back.

  • Page 8: Leg Pad Adapter Installation

    INSTALLATION cont. Leg Pad Adapter Identify the front and rear leg adapters (the OVEN FRONT front adapters have two threaded inserts, the rear has four). The leg adapters are included with each specific accessory kit. Leg to Adapter Installation: Install the leg’s threaded stud through the hole in the adapter labeled “C”...

  • Page 9: Stacking The Oven

    INSTALLATION cont. Stacking the Ovens Remove all the plug buttons from the top of the lower oven. Remove the stacking kit from the oven compartment of one oven and install the 1 1/4-inch plastic bushing into the top of the lower oven. Tip the top oven backwards and install two 3/8-inch socket head bolts, found in the stacking kit, into the two front leg holes that match the holes in the top of the lower oven.
  • Page 10 INSTALLATION continued Ventilation and Clearances Standard minimum clearance from combustible construction is as follows. 4” from side 4” from back 6” from floor • These ovens may be set directly, without legs, on a curbed base or non-combustible floor. • If the oven is set without legs on a non-combustible floor or a curbed base, maintain a 4-inch back clearance.

  • Page 11: Electrical Connection

    Oven Voltage The Lang Model ECOF & ECOD ovens can be operated on 208, 240-volt (single or three phase), or 380/440/480V (three phase only) source. The Amp draw, KW rating, and phasing can be found in specification section of this manual.

  • Page 12: Initial Start-Up

    INITIAL START UP Pre-Power On After the oven is installed and connected to power, prior to turning on, verify the following: • The doors open and close freely. • All racks are in the oven correctly. • All packing materials have been removed from the inside of the oven. Power On Once oven has been turned on verify that the blower wheel is spinning freely in a clockwise position and that the elements are heating properly.

  • Page 13: General Operation & Programming

    The same control settings will always give the same results. If the results vary, problems may be because of changes in the product preparation. ECOF-AP / ECOD-AP Control Panel Vent Knob The Control panel consists of the following items. .

  • Page 14: Hints & Suggestions

    General Operation & Programming cont. Hints & Suggestions Convection ovens constantly circulate air over and around the product. This strips away the thin layer of moisture and cool air from around the product allowing heat to penetrate more quickly. Cooking times can be shortened and cooking temperatures can be reduced. To convert standard deck oven recipes, reduce the temperature 50 degrees and the time by 25%.

  • Page 15: Maintenance

    MAINTENANCE • Oven interiors should be wiped down daily and thoroughly cleaned weekly using warm water and mild detergent. DO NOT use caustic cleaners. • The appliance should be thoroughly checked at six-monthly intervals by a qualified technician . (heating unit, mechanical stability, corrosion...) with particular emphasis on all control and safety . devices.

  • Page 16: Troubleshooting

    WARRANTIES. NOTICE Service on this or any other Lang appliance must be performed by qualified personnel only. Consult your Lang Authorized Service Agent Directory. You can call our toll free number 1-800-807-9054 or visit our website WWW.STAR-MFG.COM for the service agent nearest you. BOTH HIGH AND LOW VOLTAGES ARE PRESENT INSIDE THIS APPLIANCE WHEN THE UNIT IS PLUGGED/WIRED INTO A LIVE RECEPTACLE.
  • Page 20 Detail Can Assembly Detail Control Panel Assy ECOF Main Assembly SK2366 4/21/2008...
  • Page 21 PARTS LIST February 9, 2009, Rev. C Model No: ECOF & ECOD Main Assembly Commercial & Marine Full Size Electric Convection Oven Part Qty Number Description Number 2C-20102-04 SCRW PHD ST 8-32X.5 PLTD ECOF-AP-380V, ECOF-AP-480V, ECOF-AP2/4FA, ECOF-AP380FA, ECOF-AP440VM, ECOF-AP480VM 2C-20102-04 SCRW PHD ST 8-32X.5 PLTD ECOF, ECOD Q9-ECCO-230-1 TOP PANEL ASSEMBLY ECOF, ECOD Q9-ECCO-176-2 BODY SPOTWELD STD. ECOF Q9-ECCO-177-3 BODY SPOTWELD DEEP ECOD 2P-70901-06 PLGBTNBLKPLSTC 5/8DP625 ECOF, ECOD...
  • Page 22 PARTS LIST June 30, 2008, Rev. C Model No: ECOF & ECOD Main Assembly Commercial & Marine Full Size Electric Convection Oven Part Qty Number Description Number Q9-ECCO-176-6 L/H BODY SIDE ECOF Q9-ECCO-177-1 L/H BODY SIDE - DEEP ECOD 2B-50200-93 RACK SLIDE 11 POS ECOF 2B-50200-94 RACK SLDE 11 POS E&GCCO-T ECOD 2B-50200-20 RACK ECCO/GCCO OVEN ECOF 2B-50200-31 RACK ECO DEEP OVEN ONLY ECOD IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE...
  • Page 23 Suggested Marine Parts Stocking 16 19 20 24 26 28 Detail Model: ECOF/D “ACCU-PLUS” Control Panel Assy Electric Full Size Convection Oven SK2353 Rev. A 4/25/08...
  • Page 24 PARTS LIST June 30, 2008, Rev. C Model No: ECOF-AP, & ECOD-AP CONTROLS PANEL Commercial & Marine Full Size Electric Convection Oven Part Qty Number Description Number Q9-ECCOPAP-C PANEL ECCO 208/240V ECOD-AP, ECOF-AP, ECOF-AP-M Q9-ECCOPAP-JFA PANEL ECCO 380V ACCU-PLUS ECOF-AP2/4FA Q9-ECCOPAP-K PANEL ECCO 380V ACCU-PLUS ECOF-AP-380V Q9-ECCOPAP-KFA PANEL ECCO 380V ACCU-PLUS ECOF-AP380FA Q9-ECCOPAP-U PANEL ECCO 480V ACCU-PLUS ECOD-AP-480V, ECOF-AP-380/480V, ECOF- AP440VM/480VM 2R-70701-28...
  • Page 25 PARTS LIST June 30, 2008, Rev. C Model No: ECOF-AP, & ECOD-AP CONTROLS PANEL Commercial & Marine Full Size Electric Convection Oven Part Qty Number Description Number 2C-20102-04 SCRW PHD ST 8-32X.5 PLTD ECCOPAP-JFA, ECCOPAP-K, ECCOPAP-KFA, ECCOPAP-U 2C-20102-04 SCRW PHD ST 8-32X.5 PLTD ECCOPAP-C Q9-ECCO-289 FUSE MOUNT - SII 208-240V ECCOPAP-C Q9-ECCO-289-1 FUSE MOUNT - SII 480V ECCOPAP-JFA, ECCOPAP-K, ECCOPAP-KFA, ECCOPAP-U 2C-20101-26 SCRW MS PLT 6-32 X .25 ECCOPAP-JFA, ECCOPAP-K, ECCOPAP-KFA,...
  • Page 26 Suggested Marine Parts Stocking 28 33 34 15 22 13 Detail ECOF: CAN & MOTOR ASSEMLBY SK2367 Rev. A 6/03/08...
  • Page 27 MOTOR SHIELD ECOF, ECOD 2C-20301-09 NUT HEX 10-24 PLTD ECOF, ECOD 2C-31900-03 CABLE STRAPS 3/16X7 ECOF, ECOD 2C-20103-02 SCRW SM PLT 10 X .5 PHLSL ECOF, ECOD 2K-70801-01 SNAP BUSH 7/16 SB437-5 ECOF, ECOD 2K-70801-04 SNAP BUSH 3/4 SB750-10 ECOF, ECOD 2U-30200-16 MTR 1/3HP 460V/1/60HZ 2SP ECOF-AP-480V, ECOF-AP440VM, ECOF-AP480VM, ECOD-AP-480V 2U-30200-17 MTR 1/3HP208/240V1PH2SPD ECOF-AP, ECOD-AP 2U-30200-53 MTR 1/3HP240/254V50HZ2SP ECOF-AP2/4FA 2U-30200-60 MTR 1/3HP380V1PH50HZ2SP ECOF-AP-380V, ECOF-AP380FA 2C-20118-01 SCRW CARRAGE PLT 5/16X.75 ECOF, ECOD 2C-20201-09 WSHR PLT 5/16 FLAT SAE ECOF, ECOD 2C-20202-08 WSHR PLT 5/16 LOCK SPLIT ECOF, ECOD 2C-20301-06...
  • Page 28 STAR MANUFACTURING 10 Sunnen Drive, St. Louis, MO 63143 U.S.A. (800) 807-9054 (314) 781-2777 Parts & Service (800) 807-9054 www.star-mfg.com...
