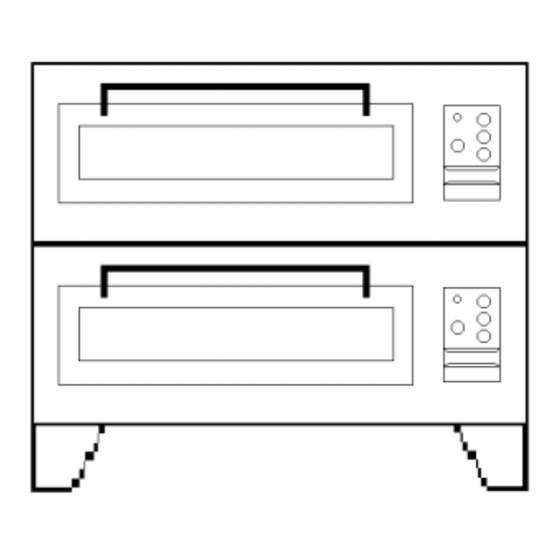

- Page 1 Service Manual for the Lang Models: S13827B, S23827B, S33827B S13827R, S23827R, S33827R Lang Manufacturing Company 6500 Merrill Creek Parkway Everett, WA 98203 Phone: 1-800-224-5264 Fax: 1-425-349-2733 www.langworld.com ©Copyright 2000...
-
Page 2: Table Of Contents
TABLE OF CONTENTS CHAPTER PAGE TABLE OF CONTENTS............... 1 READ FIRST ..................2 EQUIPMENT DESCRIPTION .............. 4 INSTALLATION ................... 5 START-UP................... 7 GENERAL OPERATION ..............8 SEQUENCE OF OPERATION............. 10 TROUBLESHOOTING................. 11 TECHNICAL DATA................12 10. WIRING DIAGRAMS ................13 11. -
Page 3: Read First
IMPORTANT READ FIRST IMPORTANT CAUTION: EACH UNIT IS EXTREMLY HEAVY. FOR SAFE HANDLING, INSTALLER SHOULD OBTAIN HELP AS NEEDED, OR EMPLOY APPROPRIATE MATERIALS HANDLING EQUIPMENT (SUCH AS A FORKLIFT, DOLLY, OR PALLET JACK) TO REMOVE THE UNIT FROM THE SKID AND MOVE IT TO THE PLACE OF INSTALLATION. - Page 4 WARNING AND FOLLOW THE DIRECTIONS ON THE LABEL OF THE CLEANER TO BE USED. NOTICE: Service on this, or any other, LANG appliance must be performed by qualified personnel only. Consult your authorized service station directory or call the factory at 1-800-224-LANG (5264), or WWW.LANGWORLD.COM for...
-
Page 5: Equipment Description
EQUIPMENT DESCRIPTION EXTERIOR Bake oven ! The oven dimensions are 20” (50.8cm) High, 36” (91.5cm) Deep, and 54” (137cm) Wide. ! The Sides, Bottom, and Rear wall are constructed stainless steel. ! The Bake oven has an 8” opening. Roast oven ! The oven dimensions are 20”... -
Page 6: Installation
15 days of delivery. All packing material should be kept for inspection. Do not return damaged merchandise to Lang Manufacturing Company. File your claim with the carrier. Prior to un-crating, move the oven as near its intended location as practical. The crating will help protect the unit from the physical damage normally associated with moving it through hallways and doorways. - Page 7 INSTALLATION CONT’D PHASING POWER TERMINAL SINGLE DOUBLE TRIPLE SUPPLY BLOCK DECK DECK DECK SINGLE PHASE THREE PHASE...
-
Page 8: Start-Up
START-UPS 3827 Baking / Roasting Oven 1) Verify connections at plug and terminal block 2) Incoming Volt - Single Phase L1-L2______ Three Phase L1-L2______ L2-L3______ L3-L1______ 3) Amp draw L1______ L2______ L3______ 4) Verify actual oven temperature at 350 °F ________ °F. -
Page 9: General Operation
GENERAL GENERAL The oven is designed to give, well regulated, uniform heat throughout the oven. The oven should be thoroughly preheated before being used. It is advantageous from an operating cost stand point to operate with the switches and/or thermostats set at the lowest position that will satisfactorily perform the cooking being done. -
Page 10: Care And Cleaning
GENERAL CONT’D CARE AND CLEANING The oven should be thoroughly cleaned at least once a week in addition to the normal daily cleaning to insure against the accumulation of foreign material. Keep inside of oven and metal deck clean, particularly around door opening, door edges and at bottom of door opening so that the door may close tightly. -
Page 11: Sequence Of Operation
SEQUENCE OF OPERATION OVEN 208/ 240 VAC to Thermostat. Thermostat turned on. 208/ 240 VAC 3-Heat Switch. 3-Heat switch turned on. 208/ 240 VAC to elements. -
Page 12: Troubleshooting
TROUBLESHOOTING OVEN OVEN WILL NOT HEAT PROBABLE CAUSE CORRECTIVE ACTION ! Confirm that oven is getting proper voltage. Incorrect wiring ! Confirm that range is phased correctly. ! Confirm that thermostat is getting correct voltage. Defective Thermostat ! Confirm that thermostat was operating properly. ! Confirm that 3-heat switch is getting correct voltage. -
Page 13: Technical Data
TECHNICAL DATA OVEN ELEMENT RESISTANCE VOLTS PART # RESISTANCE AMPS 32 Ω ! 208 Volt I/S 11070-09 ! 208 Volt O/S 26 Ω 11070-10 42 Ω ! 240 Volt I/S 11070-15 35 Ω ! 240 Volt O/S 11070-16 170 Ω ! 480 Volt I/S 11070-19 140 Ω... -
Page 14: Wiring Diagrams
WIRING DIAGRAM 3827 208/240... - Page 15 3827 480 WIRING DIAGRAM...
-
Page 16: Parts List
3827S DECK OVEN DESCRIPTION PART NO. Element 3827 208 Volt I/S 1350 Watts 11070-09 Element 3827 208 Volt O/S 1650 Watts 11070-10 Element 3827 240 Volt I/S 1350 Watts 11070-15 Element 3827 240 Volt O/S 1650 Watts 11070-16 Element 3827 480 Volt I/S 1350 Watts 11070-19 Element 3827 480 Volt O/S 1650 Watts 11070-20...
