Quick Start Guide

This guide is to assist you in installing and running the inverter and verify that it is
functioning correctly for it's main and basic features.
For detailed information and if there are any doubts please refer to the instruction manual.

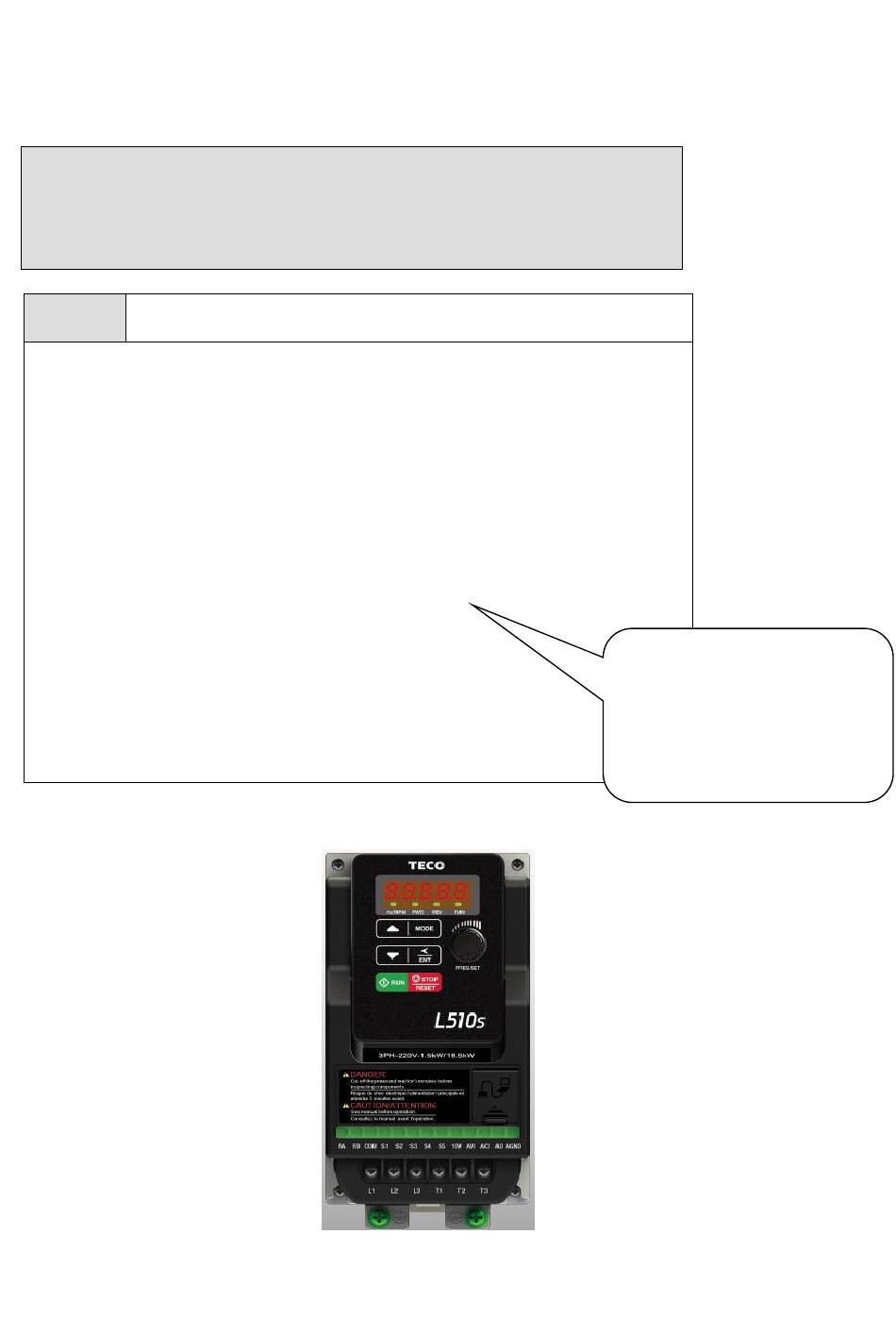

Step 1
Supply & Motor connection
1) Ensure that the Inverter & the motor have the correct
KW power and voltage ratings.
Motor full load amps must not exceed the Inverter rating.
2) Ensure that the supply & Motor cables are connected
correctly prior to power up.
3) For single phase supply, use L1(L) & L3(N) on units which
have 3 supply terminals.
4) Connect motor cable to terminals T1, T2 &T3.
(Swap two leads if motor runs in reverse direction).
5) Connect supply Earth and the motor Earth to the drive Earth
terminal.

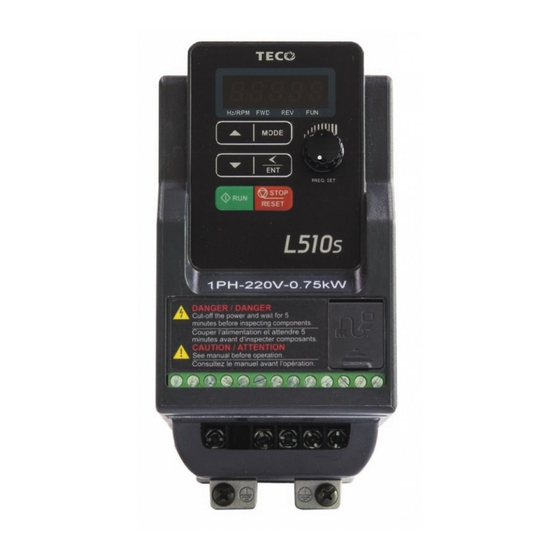

TECO L510s Inverter
Page 1 of 9
Note:-
I ) For detailed installation
and wiring refer to the
manual.
Instruction
06/10/17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L510s and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TECO L510s

Summary of Contents for TECO L510s

  • Page 1: Quick Start Guide

    TECO L510s Inverter Quick Start Guide This guide is to assist you in installing and running the inverter and verify that it is functioning correctly for it’s main and basic features. For detailed information and if there are any doubts please refer to the instruction manual.
  • Page 2 Step 2 Apply power to the drive Apply power to the drive, the display will briefly show the supply voltage 220V followed by flashing. 5.00 This is the default (factory set) frequency. If the unit has been used previously then it will show the last frequency programmed.
  • Page 3 Remote speed reference and Remote run Step 1 Remote mode wiring. Speed reference . 1) Ensure that you have carried out installation & wiring requirements as per previous page before you proceed. 2) For remote potentiometer OR remote 2-10V / 0-10V dc signal use the following terminals: Terminal 10V.
  • Page 4 Step 4 using remote speed reference. (Potentiometer 0-10vdc or 4 - 20ma ) 1) To run. Activate the remote run switch connected to terminals S1 ( FWD) or S2 ( REV) as required. Parameter 00-02 = 1 The frequency will ramp up to the frequency set by one of the following selections according to the set acceleration ramp time:- How to alter parameters ...
  • Page 5 Basic Quick Start Parameter List Parameter Default Range Note 00-14 10.0 0.1~3600.0 Acceleration time in Secs 00-15 10.0 0.1~3600.0 Deceleration time in Secs 00-04 0: Forward/Stop-Reverse/Stop 1: Run/Stop-Reverse/Forward 2: 3-Wire Control Mode-Run/Stop 00-12 50/60Hz 0.01~650.00 Max frequency limit. 00-13 0.00~649.00 Min frequency limit 00-02 Start mode:-...
  • Page 6 Control Modes & Auto Tune L510s provides two main control modes Select the relevant control mode for the application, using parameter 00-00 Control mode. Default control mode is V/f. V/f can be used for most applications specifically multi-motor or applications where auto tune is not successful or when a customized v/f pattern may be required.

  • Page 7: Standard Wiring

    Standard wiring Single phase (PNP input) Frames 1&2 ( 0.4~2.2KW) Main Fuse Switch L1(L) Power Inverter AC Power input output source L3(N) Ground 1:Data+ 2:Data- CON2 3:Data+ RS485 4:Reserved Multi-function input 5:Reserved Pin1 to Pin 8 6:Data- 7:5V 8:GND +24V * Relay output 250VAC/1A (30VDC/1A)
  • Page 8 400V Three phase (PNP input) Frame 2 (0.75 ~2.2KW) P, BR for 400 series Main Fuse Switch Inverter Power AC Power input output source Ground 1:Data+ 2:Data- CON2 3:Data+ 4:Reserved RS485 5:Reserved Multi-function input 6:Data- Pin1 to Pin 8 7:5V 8:GND Relay output +24V...
  • Page 9 Three phase (PNP input). Frames 3&4 ( 3.7 ~11KW) Braking resistor (Option) Main Fuse Switch Induction Power Inverter AC Power input Motor output source Ground 1:Data+ 2:Data- CON 2 3:Data+ 4:RXD0 RS485 5:TXD0 (Run/Stop) 6:Data- Pin 1 to Pin 8 7:5V REV (Run/Stop) 8:GND...
