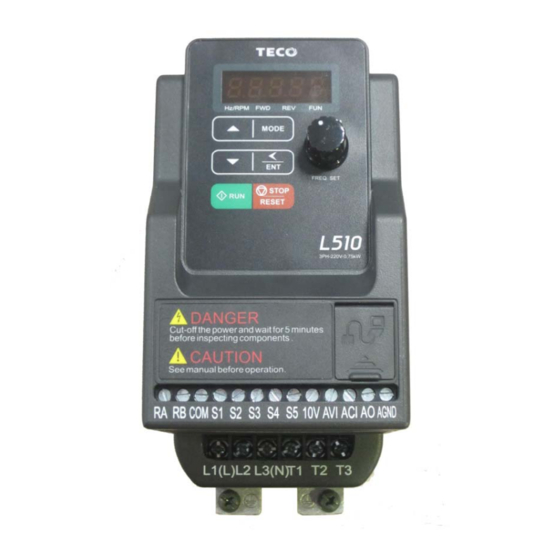

TECO L510-1P2-H1-N Operating Manual

L510 series. 100v, 0.2-0.75kw, (0.25~1hp). 200v, 0.2-2.2kw, (0.25~3hp). 400v, 0.75-2.2kw, (1~3hp).
Hide thumbs
Table of Contents

Advertisement

Quick Links

L510 Series
100V
200V
400V
Microprocessor Controlled
IGBT Drive
Inverter Motor Speed Regulator
Operating Manual
0.2~0.75KW
(0.25~1HP)
0.2~2.2KW
(0.25~3HP)
0.75~2.2KW
(1~3HP)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L510-1P2-H1-N and is the answer not in the manual?

Questions and answers

Related Manuals for TECO L510-1P2-H1-N

Summary of Contents for TECO L510-1P2-H1-N

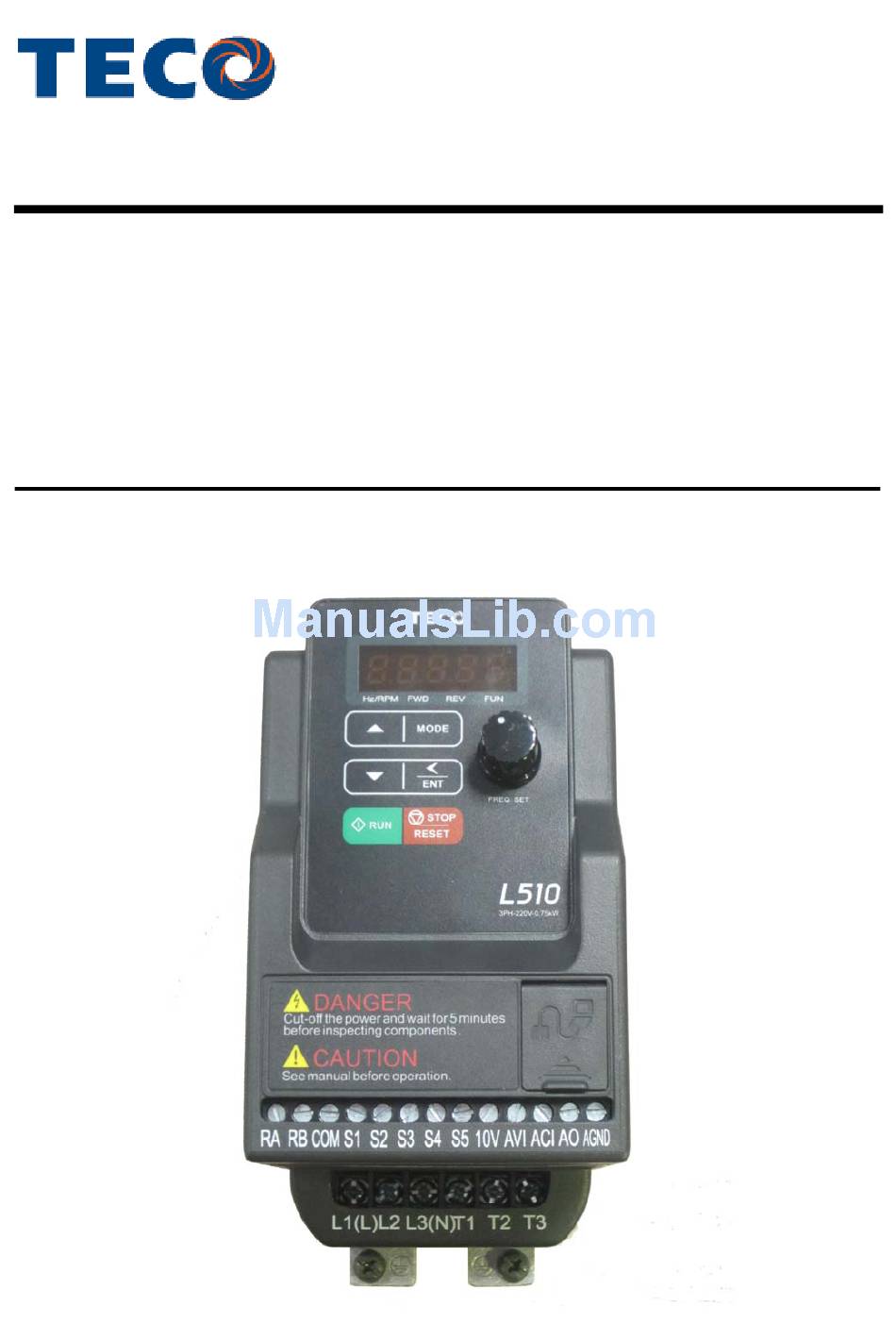

  • Page 1 Microprocessor Controlled IGBT Drive Inverter Motor Speed Regulator Operating Manual L510 Series 100V 0.2~0.75KW (0.25~1HP) 200V 0.2~2.2KW (0.25~3HP) 400V 0.75~2.2KW (1~3HP)
