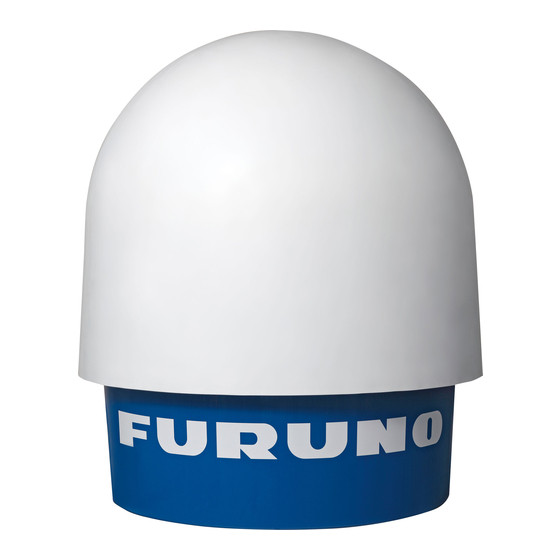

Furuno WR110 Operator's Manual

Weather radar
Hide thumbs Also See for WR110:
Table of Contents

Advertisement

Quick Links

Download this manual
S2E-17-0055_A
OPERATOR'S
MANUAL
WEATHER RADAR
MODEL:
WR110
TYPE:
www.furuno.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WR110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Furuno WR110

Summary of Contents for Furuno WR110

  • Page 1 S2E-17-0055_A OPERATOR'S MANUAL WEATHER RADAR MODEL: WR110 TYPE: www.furuno.com...

  • Page 2: Important Notices

    • The operator of this equipment must read and follow the descriptions in this manual. Wrong operation or maintenance can cancel the warranty or cause injury. • Do not copy any part of this manual without written permission from FURUNO. • If this manual is lost or worn, contact your dealer about replacement.

  • Page 3: Safety Instructions

    S2E-17-0055_A SAFETY INSTRUCTIONS The user and installer must read the appropriate safety instructions before attempting to install or operate the equipment. Indicates a hazardous situation which, if not avoided, will result DANGER in death or serious injury. Indicates a potentially hazardous situation which, if not WARNING avoided, could result in death or serious injury.
  • Page 4 Type : 03-142-3201-0 number : 100-266-890-10 WR110 restrictions There are restrictions frequency band as follows to use at Lithuania and Slovakia. WR110 is operated with a channel from the following four channels: CH1: 9422.5MHz, CH2: 9427.5MHz, CH3: 9432.5MHz, CH4: 9437.5MHz...

  • Page 5: Table Of Contents

    S2E-17-0055_A WEATHER RADAR Operation manual WR110 C ON TENTS IMPORTANT NOTICES ........i 8. Menu Tree ..........35 SAFETY INSTRUCTIONS ........ ii 9. Other Outline of System ..........v 9.1. Trademarks ........37 System Configuration ........vi 9.2. Security export control ..... 37 1.

  • Page 6: Outline Of System

    S2E-17-0055_A Outline of System This system observes the development of rain clouds, outputs the strength of precipitation, the speed of rain clouds (Doppler speed), and observes phenomena of rainfall. Features: 1. While installing antenna on a rooftop of building in urban area, it must be installed in the safety area covered by lightning rod based on JIS A4201 and IEC61024-1.

  • Page 7: System Configuration

    S2E-17-0055_A System Configuration The observation system consists of Antenna Unit (radome), Junction Unit (connection box), and Data Processing Unit (indoor unit) as shown below. 1) Antenna Unit (radome) The Antenna is stored in the radome turning and radiating the radio waves. The radiated waves are backscattered by precipitation particles on the propagation path, return to the antenna, and are processed by RF converter to transfer in the ATU.

  • Page 8: Operating Procedure Of System

    S2E-17-0055_A 1. Operating Procedure of System 1.1. Startup the Radar System (1) Turn on the circuit breaker of the Junction Unit (connection box) (2) Turn on the power of the Data Processing Unit to start the observation from the RainMap Output the data periodically with displaying images, and display the data image.

  • Page 9: Startup The Data Processing Unit

    S2E-17-0055_A 1.2. Startup the Data Processing Unit Sample image of DPU 1. Setup Data Processing Unit (1) Connect AC power supply cord from electrical outlet to DPU, and turn ON the power. (Turn ON the power of ATU before turn ON the power of DPU) (2) Connect LAN cable from DPU to ATU (SPU), and setup IP address of DPU.

  • Page 10: Data Processing Unit Configuration

    S2E-17-0055_A 2. Data Processing Unit Configuration 2.1. Configuration Antenna Unit MONI-CON Block 192.168.1.77(LAN) Signal Processing Unit Port 10001 192.168.31.101(LAN) Port 30100 (For control) Port 30101 (For transfer observed data) LAN Cable (Cat5e or better) LAN Cable (Cat5 or better) LAN Cable (Cat5 or better) LAN Cable (Cat5e or better) SPU 192.168.31.110 (LAN) MONI-CON 192.168.1.80 (LAN)

  • Page 11: Data Processing Unit

    S2E-17-0055_A 2.2. Data Processing Unit The Data Processing Unit receives output data from the Antenna Unit and displays the rainfall data in real time. Software name Display software RainMap.exe Specification Function OS: Windows® 10 IoT Enterprise 64bit • Language displayed: English and Japanese Change from English to Japanese corresponding to the (default: English) language setting of Windows®...

  • Page 12: Operating Procedure Of Dpu

    S2E-17-0055_A 3. Operating Procedure of DPU 3.1. Power up Turn on the power of DPU to start Windows®. User name: radar Password: radar 3.2. Startup screen The following screen will display during startup. Drawing area Display various images (rainfall strength, etc.). 3.3.

  • Page 13: Software Operation

    S2E-17-0055_A 4. Software operation 4.1. Name & Function of RainMap File Menu bar Click the menu name to display each selected menu item. ・ File ・ Disp ・ Setting Drawing area Display various images ・ Radar Operation (rainfall strength, etc.). ・...
  • Page 14 S2E-17-0055_A Disp SRHI screen: ・ 90 degrees screen (Indicate the echo of SRHI with 90 degrees on sub screen) ・ 180 degrees screen (Indicate the echo SRHI with 180 degrees on sub screen ) Information Indication: Indicate condition of specific hardware. (Image screen of SRHI 90 deg.) Setting Display...
  • Page 15 Display range [km]: Setup an indication range. Display data type: Setup an indication of the radar parameter. Notice: WR110 could only use the following types. ・ Rain [mm/h]: Intensity of rainfall ・ Zh [dBz]: Reflection factor of the horizontal polarimetric radar ・...
  • Page 16 S2E-17-0055_A Radar parameters in Binary file: Select a type of parameter. (Rain [mm/h], Zh [dBz], V [m/s], W [m/s], Quality) Radar Site Location Latitude [deg]: Setup the latitude of the installed point. Longitude [deg]: Setup the longitude of the installed point. Altitude [m]: Setup the altitude of the installed point.
  • Page 17 S2E-17-0055_A Scan set There are 5 scan patterns that could customize and save a setting. Scan mode: Select the scan mode of antenna. ・ PPI scan (2D data): [Plan Position Indicator scan] Table 1. It continues equiangular 360 degrees on Scan mode Extension horizontal rotation mode at a single selectable...
  • Page 18 S2E-17-0055_A Volume scan: Volume scan period [min]: Select a periodic volume scan movement from 1(60/[h]) / 2(30/[h]) / 3(20/[h]) / 4(15/[h]) / 5(12/[h]) / 6(10/[h]) / 10(6/[h]) / 12(5/[h]) / 15(4/[h]) / 20(3/[h]) / 30(2/[h]) / 60(1/[h]) e.g. Volume scan will activate every 2 minutes if select 2/30/(H).
  • Page 19 S2E-17-0055_A Sector PPI scan: AZ rotation speed [rpm] Setup an azimuth rotation speed at fixed azimuth angel. AZ start angle [deg] Setup the preset start azimuth range. AZ end angle [deg] Setup the preset end azimuth range. EL angle 0 – 31 [deg] Setup each elevation variation, up to 32 different values.
  • Page 20 S2E-17-0055_A Ending point to Ending point to observe elevation observe elevation Vertical Vertical direction direction Counter clockwise Ending point to Ending point to Starting point to Starting point to Horizontal observe azimuth observe azimuth observe elevation observe elevation direction Starting point to Starting point to Horizontal Clockwise...
  • Page 21 S2E-17-0055_A Units: Rotation speed Select a type of indication on rotation speed. Help: Version Indicate version of software and connect- ing devices. (RainMap, SPU FPGA1-4, MONI-CON FPGA, MONI-CON boot, MONI-CON App, MTRDRV sample Boot, MTRDRV App) Stop radar operation Stop Motor Stop motor of radar and TX at once.

  • Page 22: Rainfall Observation Operation

    S2E-17-0055_A 4.2. Rainfall observation operation 1) Start rainfall observation Conduct the setting of elevation angle of antenna, recording of data, and display data. Click [Connect] from pull-down menu of [Radar Control]. It will indicate [Connect] on the bottom-left of screen when the Antenna Unit (ATU) and communication has been connected.
  • Page 23 S2E-17-0055_A Click [TX] from pull-down menu of [Radar operation] . Warning If clicked [Yes], it will initialize the Do you really want to update the antenna operation setting? antenna and will indicate a message There is a difference between antenna setting value of ¥r¥nRainMap and current antenna setting.
  • Page 24 S2E-17-0055_A Start the operation of radar, and display the observed information on the screen. The recorded data is saving on a data storage device. 2) Stop rainfall observation Click [STBY] to stop the radar operation. Click [Disconnect] to close ATU.

  • Page 25: Observation Data Operation

    S2E-17-0055_A 4.3. Observation Data operation 1) Start playing the Observation Data Click [File] on File menu bar, and select [File play..] * [File play..] cannot control while accessing with the Antenna Unit (ATU). Go to [4.4. Name and Function of RainPlay] 2) Scale label It indicates the signal level of image by color.

  • Page 26: Name And Function Of Rainplay

    Close the software Setting Model: Select a type of radar model from below: ・ Large: Dual Doppler (WR2120) ・ Small: Single Doppler (WR110) Scale: Setup a distance of scale into a pop-up window of [Scale] Azimuth Offset： Setup a degree of offset into a pop-up...
  • Page 27 S2E-17-0055_A Disp Select： ○ Select an indication of data type： ・ Rain： Intensity of rainfall ・ Zhh： Reflection factor of the horizontal polarimetric radar ・ V： Doppler velocity ・ Zdr： Radar reflection factor difference ・ Kdp： Propagation phase difference rate of change ・...
  • Page 28 S2E-17-0055_A File play Start： To start playing a log data Stop： To stop playing Pause： To pause playing Fast Forward： To fast forward playing Rewind： To rewind playing Time display： Popup a setup windows to setup a time display [between 1000 - 10,000 ms] List view：...
  • Page 29 S2E-17-0055_A 2) RainPlay screen Maximize screen Menu bar Exit Software name Title bar Minimize screen Menu tilte Scale label Range mark (A) Acquired date/time (Local time) (B) Play file number / Read out number (C) Play file name (D) Acquired date/time (UTC) (E) Radar location (F) Start acquired Azimuth/Elevation (G) Maximum image distance...

  • Page 30: Log File Function

    S2E-17-0055_A 4.5. Log file function 1) Log record: Log record folder will be created automatically in to RainMap folder and to save log data. [log] ・RainMap.log (Log file) ・YYYYMMDDhhmmss.dat (The configuration file which compressed (ZIP) the transmission start date and time is up to 1, 000 files) 2) Limit of Log file (RainMap.log): When a file of transmission start date and time is over 1,000 files, it will overwrite from the oldest file.

  • Page 31: Precautions On Operation

    S2E-17-0055_A 5. Precautions on operation 5.1. Data backup Because of no guarantee to the data integrity such as observation data, output file, etc., make sure to backup data to an external hard disk drives. We shall have no responsibility for damages, data integrity, repair, and any other damages resulting from the data loss.

  • Page 32: Troubleshooting

    S2E-17-0055_A 6. Maintenance 6.1. Troubleshooting STATE CONTENT/PROCEDURE Cannot turn the power on Make sure that the power cable has not loosened. Make sure that the contact of the power cable plug has not stained. Make sure that the power cable has not damaged. Make sure that the circuit breaker in the Signal Processing Unit is “ON”.

  • Page 33: Specifications

    S2E-17-0055_A 7. Specifications 7.1. Antenna Unit Parameter Descriptions Remarks Operating Frequency 9.4 GHz band Carrier Frequency Maximum range 70km Displayable observation level : 50km Max. ±64m/sec Doppler measurement Power supply 100 to 240VAC, Single Phase, 50/60 Hz Power consumption Max. 250W Rated Ampere 1.5 to 3.5A Φ980mm×H1068mm...

  • Page 34: Data Processing Unit

    S2E-17-0055_A 7.2. Data Processing Unit Receive data from Antenna Unit (ATU) to indicate a picture of rainfall in real time. Hardware Parameter Descriptions Power supply 100 to 240VAC, 50/60Hz Power consumption Max. 150W Rated Ampere 0.8 to 2.0A Core-i7 (3GHz) or better 8GB or more Data storage device 500GB or more...

  • Page 35: Output Data Format

    S2E-17-0055_A 7.3. Output Data Format 7.3.1. Data file type 1(csv) 1) Record unit Write down a file to any folder in a computer in each setting cycle (e.g. 60 sec.) It is possible to set up a log folder. 2) Record file name Output file extension: csv Form: DATE_TIME_DATAKIND.csv (YYYYMMDD_HHMMSS_xx.csv).
  • Page 36 S2E-17-0055_A Sample of Output Data:...

  • Page 37: Data File Type 2

    S2E-17-0055_A 7.3.2. Data file type 2(scn, and others) 1) Record unit Each scn file includes one scan data (e.g. one round in azimuth) which is stored in a capture folder specified in RainMap acquisition setting. 2) Record file name Note 1: (*1) is applied only for scn version 3. Note 2: scn version 3 is recorded under RainMap version 4.0 and later version.
  • Page 38 S2E-17-0055_A Range Lower: 0 - 9999 Altitude[cm]＝ (Upper) x 10000＋ (Lower) Antenna Altitude (Lower) unsigned short e.g. 123456[cm]＝12 x 10000 ＋3456 e.g. 10.0 Antenna rotation speed (Azimuth) unsigned short (10 times level of [rpm]) e.g. 1600.0 PRF1 unsigned short (10 times level of [Hz]) e.g.
  • Page 39 S2E-17-0055_A Range: -3.00 - 180.00 Observation 100 times level of [deg] angularity Elevation signed short Horizontal: 0deg, Elevation: +, information Dip: - Observed data size e.g. 5402 [byte] unsigned short Range: 0 - 65535 Calculation formula N is a recording level. 2 x Range Rain［mm/h]= (N-32768)/100 Rain (Rainfall intensity)

  • Page 40: Data Size

    S2E-17-0055_A 7.3.3. Data size 1) Standard setting of every scan quantity (one round to azimuth direction) Observation Range Observation Total Quantity of every Header angularity direction data sweep scan information data ( (6 e.g. 1000)) e.g. 720 12,960,088 byte 2) Quantity in every hour 12,960,088 byte x 3600 sec.
  • Page 41 Figure 1. Basic volume scan The radar, WR110 will output the data files for each elevation angle. When use eight elevation angles, eight data files will be generated that will go up to 15.55784 MB, however it depends on settings.

  • Page 42: Menu Tree

    S2E-17-0055_A 8. Menu Tree RainMap Menu [File] [File Play] [Snapshot] [Exit] Menu [Disp] [SRHI screen] [90 deg screen] [180 deg screen] [Information Indication] [Pulse spec…] [Abnormal information] Menu [Setting] [Service menu] [Display] [Display Acquisition] [Radar Site Location] [Scan] [Units] Menu [Radar Operation] [Connect] [Disconnect] [TX]...
  • Page 43 S2E-17-0055_A RainPlay Menu [File] [File Play] [Print] [Main screen] [SRHI screen] [Exit] Menu [Setting] [Model] [Large] [Scale] [Small] [Azimuth Offset] [Rain] Menu [Disp] [Select] [View] [Zhh] [Ratio of transparency] [0%] [Zdr] [25%] [Kdp] [50%] [dp] [75%] [hv] [Map] [100%] [SRHI screen] [90 deg screen] [180 deg screen] [Invalid data area]...

  • Page 44: Other

    S2E-17-0055_A 9. Other 9.1. Trademarks Windows is a registered trademark of Microsoft Corporation in the United States and/or other countries. 9.2. Security export control 1) This device will be applicable to export controlled goods of Japan. 2) Principle, export, sale, and transfer of foreign user list subjects established by the Japanese government, is prohibited.

  • Page 45: Peripheral Equipment

    S2E-17-0055_A 10. Peripheral equipment 10.1. Optional equipment It is good to prepare wired router, SW HUB, Uninterruptive Power Supply (above 1KVA), and Remote Power Controller as a peripheral equipment (indoor facilities) for remote control. 1. Wired router Function Connect with an external network WAN port 10/100/1000BASE-T, 1 port, MDI/MDI-X auto switch LAN port...

  • Page 46: Ups Setting

    S2E-17-0055_A 10.2. UPS setting This procedure is only for Smart-UPS 1500RM model, it picked up only for some main points to setup on software of “Power Chute”. General Power High Transfer [V] Parameters Low Transfer [V] Sensitivity High Nominal Output [V] Audible Warning On Battery Server...

  • Page 47: Windows Language Setting

    S2E-17-0055_A 10.3. Windows Language setting DPU can change an indication to Japanese or English language. RainMap and Power Chute (UPS software) are also automatically switching a language. Instruction of changing a language of DPU: 1. Click [Control Panel] from [Startup] button (Left bottom of Windows screen). 2.
  • Page 48 S2E-17-0055_A 5. Setup [Region] - Click [Administrative] tab. - Click [Copy settings…] button in [Administrative] tab to popup [Welcome screen and new user accounts settings]. - Put a check on “Welcome screen and system accounts”, and “New user accounts” at “Copy your current settings to:”.

  • Page 49: Appendix 1. System Diagram

    S2E-17-0055_A APPENDIX 1. SYSTEM DIAGRAM (Data Processing Unit) (Junction Unit) (Antenna Unit) MONI-CON RJ45 RJ45 RJ45 Coupler RJ45 RJ45 RJ45 Coupler Black POWER White OUTLET F1 LINE Green Silver AC100～240V : Protective tube Notice: All cables and protective tube between DPU side and JCU should be prepared at local.

  • Page 50: Radio Regulatory Information

    S2E-17-0055_A 2. RADIO REGULATORY INFORMATION USA-Federal Communications Commission (FCC) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This devise may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 51: Declaration Of Confirmity

    S2E-17-0055_A 3. DECLARATION OF CONFORMITY...
  • Page 52 S2E-17-0055_A...
  • Page 53 S2E-17-0055_A ･FURUNO Authorized Distributor/Dealer FURUNO ELECTRIC CO.,LTD 9-52 Ashihara-cho, Nishinomiya, 662-8580, Japan Issued: January 2018 All rights reserved Printed in Japan...
