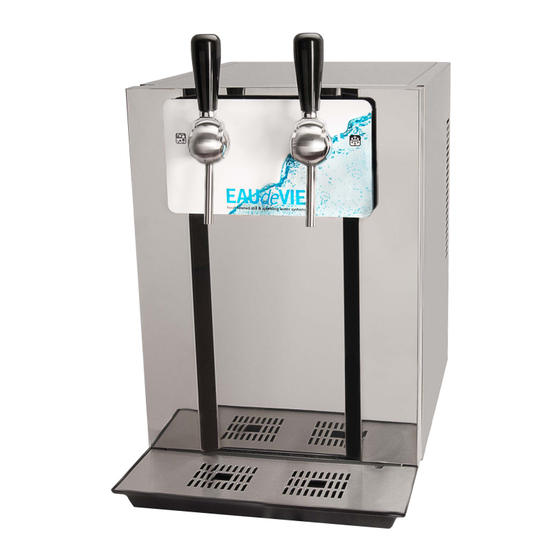

Eau de Vie EDV-TT-BP Installation And Operation Handbook

Hide thumbs
Table of Contents

Advertisement

Quick Links

Installation and Operation
Handbook
D.M. 174

Advertisement

Table of Contents
loading

Summary of Contents for Eau de Vie EDV-TT-BP

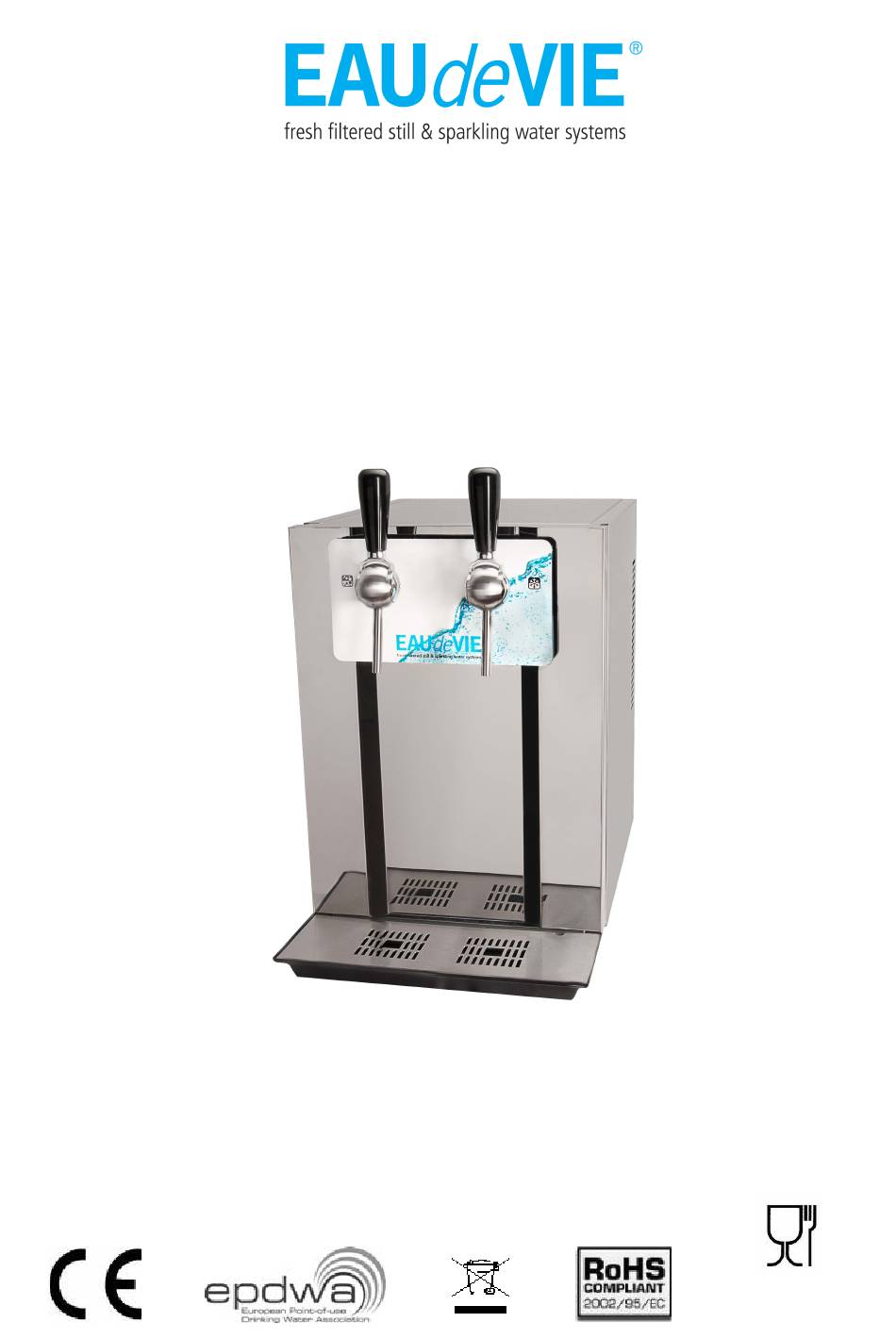

  • Page 1 Installation and Operation Handbook D.M. 174...
  • Page 2 Date: Address: EdV unit meter reading: I confirm receipt of the Eau de Vie Operating Manual relating to our Eau de Vie filtered water system, installed at the address above. Care of C02 Gas Health and Safety Procedures & Customer Careline...
  • Page 3 TRAINING LOG The following personnel have been trained on the Eau de Vie water filtration system: Trainee: Date: Signature: Position: Trainee: Date: Signature: Position: Trainee: Date: Signature: Position: Trainee: Date: Signature: Position: Trainee: Date: Signature: Position: Trainee: Date: Signature: Position:...

  • Page 4: Table Of Contents

    INSTALLATION INSTRUCTIONS................16-19 FILTRATION.........................20-21 SANIFICATION......................... 22 OPERATING INSTRUCTIONS..................23-25 BOTTLE WASHING INSTRUCTIONS................26 TAP SANITISING PROCEDURE..................27 CORRECT PRESENTATION OF EAU DE VIE..............28 CHANGING CO2 CYLINDER................... 29 SAFETY AT WORK......................30 GENERAL MAINTENANCE..................31-32 MAINTENANCE REGISTER..................... 33 CONDITIONS OF GUARANTEE…………………………………………………………..…. 34 EMERGENCY INSTRUCTIONS..................

  • Page 5: Before Installation

    BEFORE INSTALLATION This water cooler has been designed to supply the highest quality of water. In order to get the best performance from your product, we advise you to carefully read the instructions contained in this manual and keep it for future reference. UNPACKING Remove the two plastic straps.

  • Page 6: Protecting The Enviroments

    PROTECTING THE ENVIROMENT PACKING MATERIALS The packing materials are 100% Recyclable. Please follow the local regulations. As with all packing material it must be kept out of the reach and sight of children as it can be dangerous. SCRAPPING The product is made by recyclable material.

  • Page 7: Declaration Of Conformity

    DECLARATION OF CONFORMITY MATERIAL SUITABLE FOR CONTACT WITH WATER This water cooler is designed for the supply of drinking water, therefore the materials which come into direct contact with the water conform to the regulations currently in force. Furthermore, it is manufactured according to the ministerial decree D.M.

  • Page 8: Precautions And General Information

    PRECAUTIONS AND GENERAL INFORMATION  The water cooler must only be connected to a mains drinking water supply.  Before installation the machine must be sanitized by a qualified person.  After installation check that the machine is not standing on its ...

  • Page 9: Product Description

     Natural gas R290. An easy opening for maintenance. Inlet safety valve. Dispensing point for bottles of 32 cm. Optional extras: Eau De Vie Table Top  In line UV installed inside the cooler Model No: EDV-TT-BP ...
  • Page 10 FRONT VIEW 1: Removable Top Cover 4: Drip-tray 2: Mechanical Taps; 5: Anti shock feet 3: Plexiglass EAUdeVIE’...
  • Page 11 FRONT VIEW - (Under the top cover) 1— General switch and thermostat ; 5– Carbonator ; 2— Transformer 40 W 50/60 A ; 6– UV lamp ; 3– Level Control ; 7— Ice bank drainage pipe. 4– Motor pump ;...
  • Page 12 PANEL DESCRIPTION (Fig. 10.1 ) P.1 = COLD SPARKLING WATER (FIZZ MODEL). P.2 = COLD STILL WATER COMMAND.

  • Page 13: Technical Characteristics

    TECHNICAL CHARACTERISTICS Technical Information Label 13 = Year of construction 10= Month of construction 00210 = Serial Number...
  • Page 14 TECHNICAL CHARACTERISTICS — DIMENSIONS (MM) EdV TT BP Dim. EdV TT BP 80 - FIZZ 80 Dispensing area height (He) L x W x H (mm) 360 x 575 x 570 320 mm...
  • Page 15 Technical data sheet EdV TT BP Cooling capacity 80 lt/h Max Continuous cooling 45 lt capacity Water temperature 3° - 10° C Cooling technology Ice bank — single stainless steel coil Ice bank capacity 14 lt Ice bank 5 kg Supply Single phase 220V—50Hz Power...
  • Page 16 The system, once installed must not be moved or altered in any way without the written permission of Classeq, acting on behalf of Eau de Vie. The new site is subject to survey and any subsequent removal or re-installation of the equipment is to be carried out by Eau de Vie.
  • Page 17 INSTALLATION Img. 14.1 FILLING THE ICE-BANK Access via the back of the machine. Pour drinking water into the tank using the 3/8 bulkhead filling (fig 14.1). Stop filling the ice bank when the max level 2 (Img 14.2) has been reached. If water exceed this level, water in excess will flow out on the frontal drip-tray.
  • Page 18 INSTALLATION THERMOSTAT CONNECTION TO ELECTRICITY Connection to the electricity The thermostat is set at maximum for supply must conform to the local the ice-bank. regulations. The product must, by If you wish to avoid the formation of ice law, be earthed. in the ice-bank, turn the screw on the Connect the power supply cable thermostat a quarter of a turn...
  • Page 19 INSTALLATION OF THE CO2 CYLINDER (FIZZ MODELS) Once the water cooler has been connected to the mains water and electricity supply and the ice bank has filled, you can go ahead with the installation of the Co2 cylinder alimentary E290. The machine comes with a Co2 pressure reducer with two gauges, but not with the cylinder.
  • Page 20 FILTER EVERPURE OCS MAIN CHARACTERISTICS:  It removes the odor and taste of chlorine and other contaminants which could alter the flavor of the water. The EVERPURE PRE-COAT micro filter removes any impurities and particles of 0.5 micron or more. ...

  • Page 21: Filtration

    FILTRATION (OPTIONAL) UV FILTER STERILIZATION As well as the Everpure OCS filter it is possible to install an Ultraviolet sterilizing filter UV-C ( λ=254 nm) The UV-C light emitted by a special 6W bulb – mercury vapors is lethal for any type of micro-organism (bacteria, virus, fungus, algae etc.).

  • Page 22: Sanification

    SANIFICATION The machine will need to be sanitised Foto 24.1 after installation, when one of the hydraulic components is replaced, when the filter is changed and also at least once a year. This operation must be undertaken by a qualified technician who has completed a specialised training course for hygiene and sanitizing.

  • Page 23: Operating Instructions

    Only C5 Sanitiser Spray or other approved water sanitising solutions designed specifically to be used with water, may be used with the Eau de Vie filtered water system. Filters A replaceable filter is used which removes sediment; sub micron particles and pathogenic bacteria and chlorine and other contaminants causing bad flavour or odour.
  • Page 24 After washing, bottles should be left in the tray to cool and then be filled and capped as soon as possible. TIP: For best results always use Eau de Vie branded bottle-wash racks. Hybrid racks from other manufacturers may interfere with the vertical hot water jets.
  • Page 25 TIP: The best carbonation is achieved by using the coldest water, so always fill sparkling water bottles of Eau de Vie before still ones, especially when large quantities of bottles are to be filled. Unused stocks of filled bottles Eau de Vie is fresh filtered water.

  • Page 26: Bottle Washing Instructions

    BOTTLE WASHING INSTRUCTIONS Page 26...

  • Page 27: Tap Sanitising Procedure

    TAP SANITISING PROCEDURE Page 27...

  • Page 28: Correct Presentation Of Eau De Vie

    CORRECT PRESENTATION OF EAU DE VIE Page 28...

  • Page 29: Changing Co2 Cylinder

    CHANGING C0 CYLINDER Page 29...

  • Page 30: Safety At Work

    Any electrical appliance installed on your premises for more than one year is subject to regular safety testing. In the unlikely event of your Eau de Vie system failing such a test, you are required by law to turn off the power supply to the unit. You should then immediately call the Winterhalter Serviceline on 01908 359059.

  • Page 31: General Maintenance

    GENERAL MAINTENANCE Internal access External cleaning of the machine To have access inside the water cooler, Use a soft cloth with a specific cleaning remove the top cover by unscrewing the product for stainless steel to clean the two screws on the back. machine.

  • Page 32: Maintenance Register

    MAINTENANCE REGISTER INSTALLATION TECHNICIAN DATE NOTES SIGNATURE MAINTENANCE TECHNICIAN DATE NOTES SIGNATURE...

  • Page 33: Conditions Of Guarantee

    CONDITIONS OF GUARANTEE This equipment is guaranteed for one year from the date of purchase. Included in the guarantee is the reparation or substitution of parts proven to have been defective during construction. Excluded from the guarantee is the replacement of parts damaged through natural wear and tear, through misuse, or caused by the incorrect installation of the machine.
  • Page 34  Always interconnect C02 or gas cylinder equip-  ment Always ventilate area after C02 leakage  Carbon Dioxide can be dangerous and potentially fatal For further information please contact us at Eau de Vie email eaudevie@classeq.co.uk...

  • Page 35: Contact Details

    CONTACT DETAILS Classeq Ltd Roebuck Way Knowlhill Milton Keynes MK5 8WH Tel: +44 (0)1908 359000 Fax: +44 (0) 1908 359060 Email: eaudevie@classeq.co.uk www.eaudevie.com...
