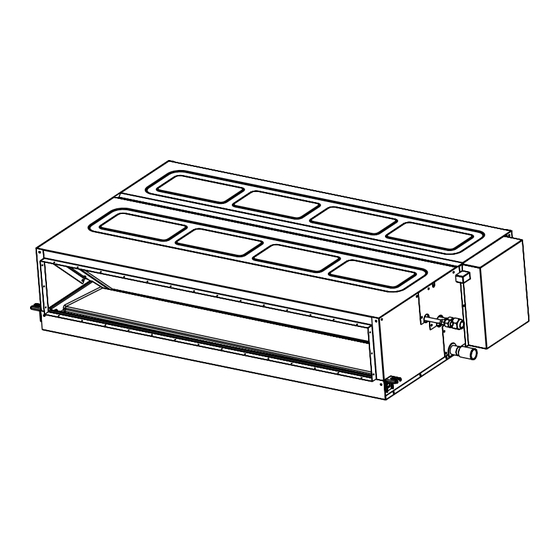

Johnson Controls (H,Y,C)IDM012B21S Installation And Maintenance Manual

Inverter-driven multi-split system heat pump air conditioners
Hide thumbs
Table of Contents

Advertisement

Quick Links

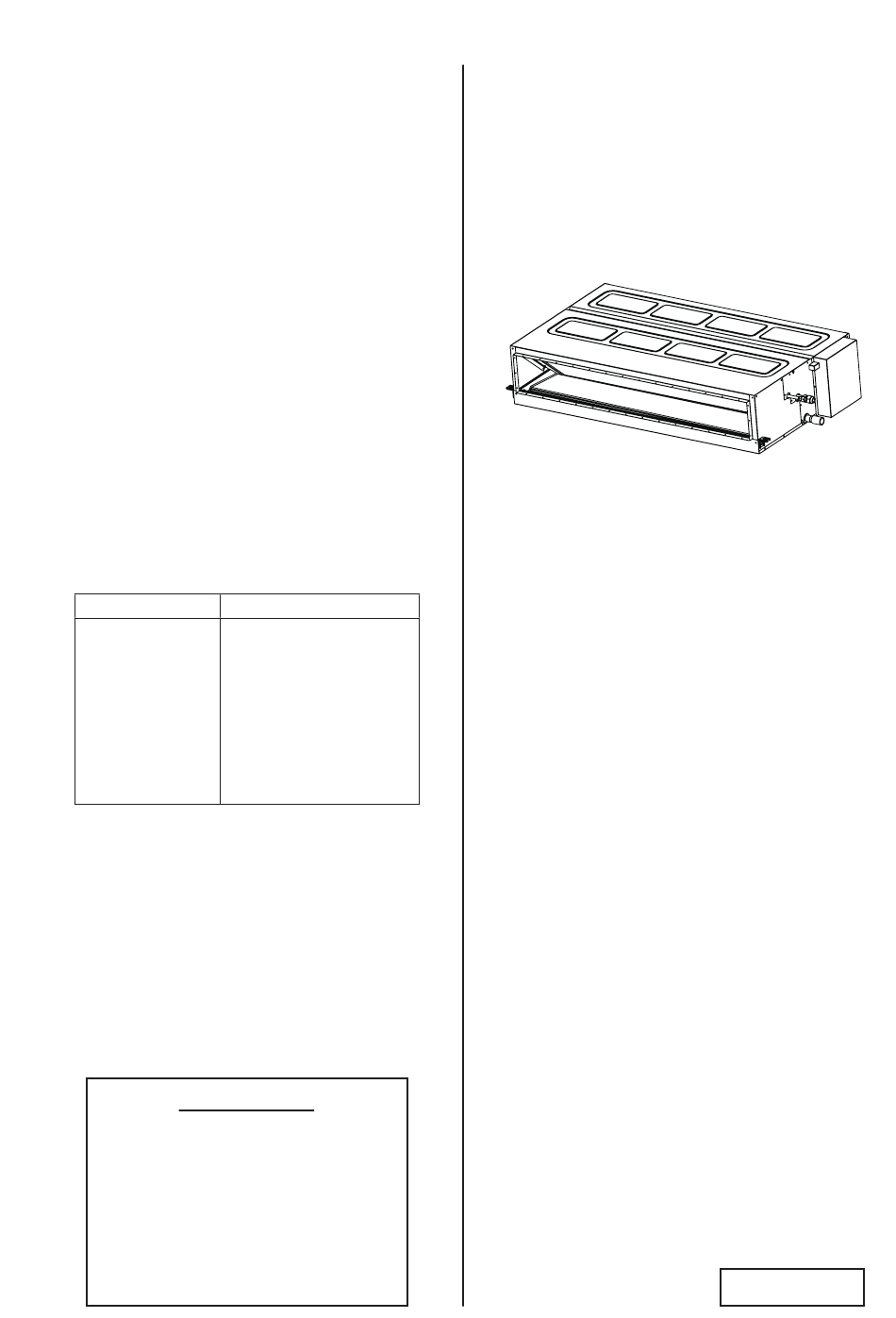

Installation
and
Maintenance
Manual
INVERTER-DRIVEN
MULTI-SPLIT SYSTEM
HEAT PUMP
AIR CONDITIONERS
Type
(H,Y,C)IDM006B21S
(H,Y,C)IDM008B21S
(H,Y,C)IDM012B21S
(H,Y,C)IDM015B21S
Ducted
(H,Y,C)IDM018B21S
(Medium Static)
(H,Y,C)IDM024B21S
(H,Y,C)IDM030B21S
(H,Y,C)IDM036B21S
(H,Y,C)IDM048B21S
IMPORTANT:
READ AND UNDERSTAND
THIS MANUAL BEFORE
USING THIS HEAT PUMP
AIR CONDITIONER.
KEEP THIS MANUAL FOR
FUTURE REFERENCE.
Model
P00792Q

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the (H,Y,C)IDM012B21S and is the answer not in the manual?

Questions and answers

Related Manuals for Johnson Controls (H,Y,C)IDM012B21S

Summary of Contents for Johnson Controls (H,Y,C)IDM012B21S

  • Page 1 Installation Maintenance Manual INVERTER-DRIVEN MULTI-SPLIT SYSTEM HEAT PUMP AIR CONDITIONERS Type Model (H,Y,C)IDM006B21S (H,Y,C)IDM008B21S (H,Y,C)IDM012B21S (H,Y,C)IDM015B21S Ducted (H,Y,C)IDM018B21S (Medium Static) (H,Y,C)IDM024B21S (H,Y,C)IDM030B21S (H,Y,C)IDM036B21S (H,Y,C)IDM048B21S IMPORTANT: READ AND UNDERSTAND THIS MANUAL BEFORE USING THIS HEAT PUMP AIR CONDITIONER. KEEP THIS MANUAL FOR P00792Q FUTURE REFERENCE.
  • Page 2 ATTENTION Each model number and all matching model numbers within a system must have the same version of software. Follow these steps to verify that your product model numbers have the same version of software. • Access the main printed circuit board in each product. •...
  • Page 3 Important Notice ● Johnson Controls Inc. pursues a policy of continuing improvement in design and performance in its products. As such, Johnson Controls Inc. reserves the right to make changes at any time without prior notice. ● Johnson Controls Inc. cannot anticipate every possible circumstance that might involve a potential hazard.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ..............................1 2. Safety Instructions ............................1 3. Before Installation ............................7 3.1 Combination of Outdoor Unit and Indoor Unit ..................7 3.2 Transportation and Handling ........................7 3.3 Factory-Supplied Accessories ........................7 3.4 Necessary Tools and Instrument List for Installation ................7 4.

  • Page 5: Introduction

    ● This system should be installed by personnel certified by Johnson Controls, Inc. Personnel must be qualified according to local, state and national building and safety codes and regulations. Incorrect installation could cause leaks, electric shock, fire or explosion. In areas where Seismic ‘’Performance...
  • Page 6 This unit is the pressurized system. Never loosen threaded joints while the system is under pressure and never open pressurized system parts. ● Johnson Controls will not assume any liability for injuries or damage caused by not following steps outlined or described in this manual. Unauthorized modifications to Johnson Controls products are prohibited as they…...
  • Page 7 ▫ Damp or uneven areas: Use a raised concrete pad or concrete blocks to provide a solid, level foundation for the unit to prevent water damage and abnormal vibration. ▫ An area with high winds: Securely anchor the outdoor unit down with bolts and a metal frame. Provide a suitable air baffle.
  • Page 8 Controls uses only refrigerants that have been approved for use in the unit’s intended home country or market. Johnson Controls distributors similarly are only authorized to provide refrigerants that have been approved for use in the countries or markets they serve. The refrigerant used in this unit is identified on the unit’s faceplate and/or in the associated manuals.
  • Page 9 ● Clamp electrical wires securely with a cable clamp after all wiring is connected to the terminal block. In addition, run wires securely through the wiring access channel. ● When installing the power lines, do not apply tension to the cables. Secure the suspended cables at regular intervals, but not too tightly.
  • Page 10 ● Proper handling of this unit requires two-people. Safe handling and installing the indoor unit requires the strength of two people. Mounting the unit alone may cause injury due to fall of the unit. Although the unit may be girded with steel banding, do not use it for transportation. Avoid contact with finned surfaces of the heat exchanger as sharp edges can cause severe injury to hands and fingers.

  • Page 11: Before Installation

    Before Installation Combination of Outdoor Unit and Indoor Unit The combination capacity of indoor unit against the outdoor unit is selected depending on the outdoor unit capacity. Refer to the "Installation and Maintenance Manual" for the outdoor unit to decide the required combination of indoor and outdoor units, and the combination unit capacity.

  • Page 12: Installation Location

    Installation Location inch (mm) Electrical Box Service Access Door (Min 17-11/16 (450)) (1) Install the indoor unit, allowing for proper clearance for operation and maintenance In case that the access, as shown in Figure. 4.1. ceiling board can not be detected for servicing, Rear Side prepare a service...

  • Page 13: Marking Positions For Suspension Bolts And Piping Connections

    Marking Positions for Suspension Bolts and Piping Connections (1) Mark-off the positions for the suspension bolts, refrigerant pipe connections, and drain pipe connection. (2) Installation dimensions are shown in Figure 5.2. Unit: inch (mm) a (for Suspension Bolt) (25) 4 - 1-9/16 x 1/2 (40 x 12) (for Suspension Bolt) Drain Pipe Connection Refrigerant Gas Pipe Connection...

  • Page 14: Adjusting Level Of Unit

    (1) How to install Nuts or Suspension Bolts Install nuts on each of the four hanging bolts, as shown in Figure 5.4. Retaining Nut Washer Indoor Unit Washer Figure 5.4 Suspension Bolts and Nuts (2) Suspending the Indoor Unit * Hook the suspension bracket to the nut and washer of each hanging bolt as shown, starting at the opposite side and working over to the service cover side.

  • Page 15: Connecting The Supply Duct

    2) Limits on Outdoor Air Intake • Do NOT ingest air from the outdoors directly into the indoor unit. If an outdoor fresh air intake is necessary for air-conditioning, Johnson Controls Inc. recommends the installation of the ERV (Energy Recovery Ventilation) (Field-supplied) system.

  • Page 16: Setting The External Pressure

    ● If a lower sound level is required, install field-supplied silencer. ● The facility design should be “Unit External Static Pressure = Duct Pressure Loss + Suction / Discharge Pressure Loss”. If duct pressure loss fall below the external static pressure, airspeed will increase and noise levels along with it. Also, water may splash out from unit and the motor protection circuit activated. Problems such as the inability to adjust airspeed can occur if the external unit static pressure fall below the duct pressure loss. Adjust the airflow control damper or shift the static pressure control switch to an equal level between the external static pressure and duct pressure loss. (refer to “Setting the External Pressure” section for the details.) ● Basically, this unit is configured to install the ducts on the inlet side and the outlet side. Ask for more information on using return ducts in the ceiling. Silencer Canvas Duct Canvas Duct Silencer Thermal Damper for Insulation Adjusting Air Volume Indoor Outdoor Air Unit (with Air Filter) Damper for Fine An air filter which Adjusting Air Volume Air Inlet can collect dust.

  • Page 17: Refrigerant Piping Work

    Refrigerant Piping Work Use the specified non-flammable refrigerant (HFC R410A) for the outdoor unit refrigerant cycle. Do not charge the unit with anything other than HFC R410A, such as hydrocarbon refrigerants (propane and Isobutene), oxygen, and other flammable gases (acetylene, ammonia, and so forth), or any poisonous gases when installing, maintaining and moving the unit. These substances are volatile and dangerous and can result in fire, explosion, and serious or fatal injuries. For details on refrigerant piping work, vacuum pump, and refrigerant charge, refer to the "Installation and Maintenance Manual" for the outdoor unit. Piping Materials (1) Tolerances for refrigerant piping lengths depend on the combination with the outdoor unit. Refer to the “Installation and Maintenance Manual”...

  • Page 18: Piping Connection

    Piping Connection (1) Position of piping connection is shown below. Unit: inch (mm) Refrigerant Gas Pipe Connection Drain Pipe Connection VP25 Refrigerant Liquid Pipe Connection A (Refrigerant Gas Pipe Connection) 3-9/16 (90) (Drain Pipe Connection) B (Refrigerant Liquid Pipe Connection) Model 2-3/4 3-5/8...
  • Page 19 (6) Wherever buried piping exists on site, make sure there is a service doorway to provide adequate access to inspect piping sockets and elbows, and for interconnecting parts. (7) Piping must be reinforced to withstand earthquakes so as not to be damaged by an external force. (8) Do not tightly secure refrigerant piping to accommodate expansion and contraction.

  • Page 20: Drain Piping

    Drain Piping Perform drain piping work and attach the insulation before attempting any refrigerant piping work. (1) Figure 7.1 shows all drain piping connections. (2) Prepare a polyvinyl chloride piping with 1-1/4 inches (32mm) outer diameter. (3) Fasten the tube to the drain hose with the adhesive agent and the field-supplied clamp. The drain piping must be performed with a DOWN-SLOPE pitch of 1/25 to 1/100.
  • Page 21 NOTICE After all drain piping work and electrical wiring is complete, verify that water flows smoothly as in the following procedure. Verification using a Float Switch a. Turn ON the power supply. b. Pour in 68 to 84oz (2 to 2.5 liters) of water into the drain pan. c.

  • Page 22: Electrical Wiring

    Electrical Wiring ● All electrical work must be done as outlined in this manual and in accordance with this manual. Substandard work can result in fire and damage to the unit. ● Use specified cables between units and choose the cables correctly. If not, an electrical shock or fire may occur. ● Do not open the service cover or access panel for the indoor or outdoor units without turning OFF the main power supply. It can result in an electrical shock. ● Turn OFF the main power switch of the indoor unit and the outdoor unit before attempting any electrical wiring work or a periodical check is performed. If not, it will result in an electric shock or a fire. ● Check to ensure that the indoor fan and the outdoor fan have stopped before attempting any electrical wiring work or for any scheduled electrical work that is being performed. ● Tighten screws according to the following torque. M3.5: 0.9 ft·lbs (1.2 N·m) M4: 0.7 to 1.0 ft·lbs (1.0 to 1.3 N·m) ● Secure all cables together with zip-ties and seal the connecting hole against the onslaught of moisture and insects. ● Run the electrical wiring through the connecting hole in the side cover when using conduit. ● Secure the wired controller cable using the cable clamp inside the electrical box. General Check (1) Make sure that the field-selected electrical components: (main power switches, circuit breakers, wires, conduit connectors, and wire terminals) have been properly labeled in accordance with electrical data as specified in the Engineering Manual.

  • Page 23: Electrical Wiring Capacity

    Electrical Wiring Capacity 8.2.1 Field Minimum Wire Sizes for Power Supply • This equipment can be installed with a Ground Fault Circuit Interrupter (GFCI), which is a recognized measure for added protection to a properly grounded unit. Install appropriate sized breakers / fuses / overcurrent protection switches and wiring in accordance to local, state and NEC codes and requirements.
  • Page 24 Table 8.1 Recommended Wiring Capacity and Size GFCI Minimum Wire Thickness <Ground Fault Main Switch [AWG (mm Circuit Interrupter> <Minimum Power Circuit Model Nominal Power Supply Nominal Nominal Ground Ampacity> Sensitive Fuse Supply Communication Current Current Wiring Current Wiring Size Cable Size Size <...

  • Page 25: Position Of Electrical Wiring Connection

    Position of Electrical Wiring Connection • The electrical wiring connection for the indoor unit is shown in Section 8.2.2. • The connection at the terminal block for the indoor unit is shown below. Check the outdoor unit for the combination before the wiring work begins. Screw fasteners at the terminal block should be tightened according to recommended torque specifications as shown in the table below.
  • Page 26 (1) Connect the cable for the optional controller or the optional extension cable to the terminals inside the electrical box through the connecting hole of the cabinet. (2) Connect the power supply and the ground wiring to the terminals in the electrical box. (3) Connect the cables between the indoor unit and the outdoor unit to the terminals inside the electrical box.
  • Page 27 (10) Wired Controller Connection ● VRF Systems (a) Wired Controllers to each Unit for Individual Operation Setting Indoor Unit Indoor Unit Outdoor Unit Wired Wired Controller Controller (b) Single Wired Controller for Individual Operation Setting Indoor Unit Indoor Unit Outdoor Unit Wired The communication cables Controller...
  • Page 28 < Caution for Electrical Wiring > ● Do not connect the power supply wiring and the communication cable into one terminal. ● The manual switchbox is required when communication cable is required. Indoor Unit Indoor Unit Indoor Unit Indoor Unit Indoor Unit Indoor Unit Switchbox...

  • Page 29: Wiring Connection

    Wiring Connection (1) Remove the connecting hole cover of the electrical box and install the rubber bush (Accessory) to the connecting hole for communication cable. (2) Pass the communication cable and the wired controller cable through the connecting hole for communication cable.

  • Page 30: Dip Switches Settings

    DIP Switches Settings (1) Turn OFF the power supply to both indoor and outdoor units before adjusting DIP switch settings. Otherwise, the setting will be invalidated and not take effect. (2) Positions of DIP switches are shown below. DSW7 DSW4 DSW5 RSW2 1 2 3 4...

  • Page 31: External Static Pressure Setting

    (6) Refrigerant Cycle No. Setting (RSW2 & DSW5) Refrigerant Cycle No. Setting DSW5 (Tens Digit) RSW2 (Units Digit) This setting is required. The unit arrives with all Ex.) Set at No.5 Cycle DSW5 settings in the OFF position. Setting Set by inserting Position slotted screwdriver into the groove.

  • Page 32: Function Selection By Wired Controller

    Function Selection by Wired Controller Each function can be selected with the wired controller. Refer to the “Installation and Maintenance Manual” for the wired controller and the “Engineering Manual” for details. < Circulator Function at Heating Thermo-OFF > This function maintains fan operation by the set airflow volume at the heating Thermo-OFF. It improves temperature distribution when the unit is mounted on a high ceiling.

  • Page 33: Test Run

    9. Test Run Before Test Run Verify that there are no problems with the installation, and do not perform Test Run until all the following conditions have been resolved. Refer to the "Installation and Maintenance Manual" for the outdoor unit for details on Test Run operations from the outdoor unit.
  • Page 34 ● The total number of connected indoor units is indicated on the LCD (Liquid Crystal Display). In the case of a twin combination (set of two indoor units), the total number of the connected indoor units is displayed as “2 units”, and where there is a triple combination (set of three indoor units), the total number of the connected indoor units is displayed as “3 units”.

  • Page 35: Alarm Code

    Alarm Code Alarm (Troubleshooting) Code Table Code Category Nature of Problem Likely Cause Activation of a protection device Activation of the float switch; (High water level present in Indoor Unit (Float switch) the drain pan.) A problem exists in the piping. Activation of protection device;...
  • Page 36 © 2015 Johnson Controls, Inc. P00792Q-rev.2 Code No. LIT-12012018 Revised January 2018...
