Johnson Controls GAW14L User's Information Manual

USER'S INFORMATION MANUAL

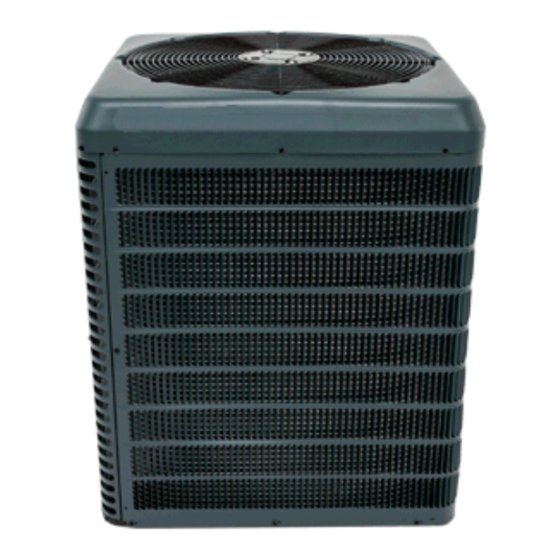

OUTDOOR SPLIT-SYSTEM
AIR CONDITIONING OR HEAT PUMP
MODELS: SINGLE PHASE & THREE PHASE
CONTACT INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
HOW YOUR SYSTEM WORKS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
COOLING CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
HEATING CYCLE (HEAT PUMPS) . . . . . . . . . . . . . . . . . . . . . . . . 1
SETTING THE THERMOSTAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
THERMOSTATS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
YOUR KEY TO COMFORT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
COOLING ONLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
COOLING AND HEATING (HEAT PUMP) . . . . . . . . . . . . . . . . . . . 2
MANUAL CHANGE-OVER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PROGRAMMABLE ELECTRONIC THERMOSTATS . . . . . . . . . . . . . 2
FAN OPERATION SELECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
POWER FAILURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SYSTEM OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
MANUAL CHANGE-OVER THERMOSTAT . . . . . . . . . . . . . . . . . . 3
CONTACT INFORMATION
• Go to website at www.york.com, then click on Contact Us and
follow the instructions.
• Contact us by mail:
Read all sections of this manual and keep the manual for
future reference.
WARNING
!
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
SAFETY
WARNING
!
This product must be installed and serviced by a qualified installer or
service agency. Improper installation, adjustment, alteration, service
or maintenance can cause injury or property damage.
HOW YOUR SYSTEM WORKS
COOLING CYCLE
If your hand is wet and you blow on it, it feels cool because some of the
moisture is evaporating and becoming a vapor. This process requires
heat. The heat is being taken from your hand, so your hand feels cool.
That is what happens with an air conditioner. During the cooling cycle,
your system removes heat and humidity from your home and transfers
this heat to the outdoor air.
Johnson Controls Ducted Systems
TABLE OF CONTENTS
ELECTRONIC THERMOSTAT . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
TO MAXIMIZE OPERATING EFFICIENCY . . . . . . . . . . . . . . . . . . . . .3
HEATING CONSERVATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
COOLING CONSERVATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
CARE OF SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
COIL CARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
SERVICE CALLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
FILTER CARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
CLEARANCES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PARTS INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
EXTENDED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
SOME EFFICIENCY DOS AND DO NOTS . . . . . . . . . . . . . . . . . . .4
CHARACTERISTICS OF HEAT PUMPS . . . . . . . . . . . . . . . . . . . . . . .4
A CONSTANT HEAT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
WATER RUN-OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
OUTDOOR COIL DEFROSTING . . . . . . . . . . . . . . . . . . . . . . . . . .4
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HEATING CYCLE (HEAT PUMPS)
During the heating cycle, your system removes heat and humidity from
the outdoor air and transfers this heat to your home. This is possible
because even 0°F outdoor air contains a great deal of heat. Remember
that your heat pump does not generate much heat, it merely transfers it
from one place to another.
System Operation
Your thermostat puts full control of the comfort level in your home at
your fingertips. Do not switch your thermostat rapidly ON and OFF or
between HEAT to COOL. This could damage your equipment. Always
allow at least 5 min between changes.
SETTING THE THERMOSTAT
The main power to the system must be kept ON at all times to prevent
damage to the outdoor unit compressor. If necessary, the thermostat
control switch must be used to turn the system OFF. Should the main
power be disconnected or interrupted for 8 h or longer, do not
attempt to start the system for 8 h after the power is restored to the
outdoor unit. If heat is needed during this 8-h period, use emergency
heat.
Johnson Controls Ducted Systems
Consumer Relations
5005 York Drive
Norman, OK 73069
CAUTION
!
1183508-UUM-O-0121
®
