Inverter-driven multi-split system heat pump air conditioners
Hide thumbs Also See for HIC1006B21S:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Engineering Manual
Operation
Manual
INVERTER-DRIVEN
MULTI-SPLIT SYSTEM
HEAT PUMP
AIR CONDITIONERS
Type
(H,Y,C)IC1006B21S
(H,Y,C)IC1008B21S
1-Way Cassette
(H,Y,C)IC1012B21S
(H,Y,C)IC1015B21S
IMPORTANT:
READ AND UNDERSTAND
THIS MANUAL BEFORE
USING THIS HEAT PUMP
AIR CONDITIONER.
KEEP THIS MANUAL FOR
FUTURE REFERENCE.
Model
P5417057

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIC1006B21S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Johnson Controls HIC1006B21S

Summary of Contents for Johnson Controls HIC1006B21S

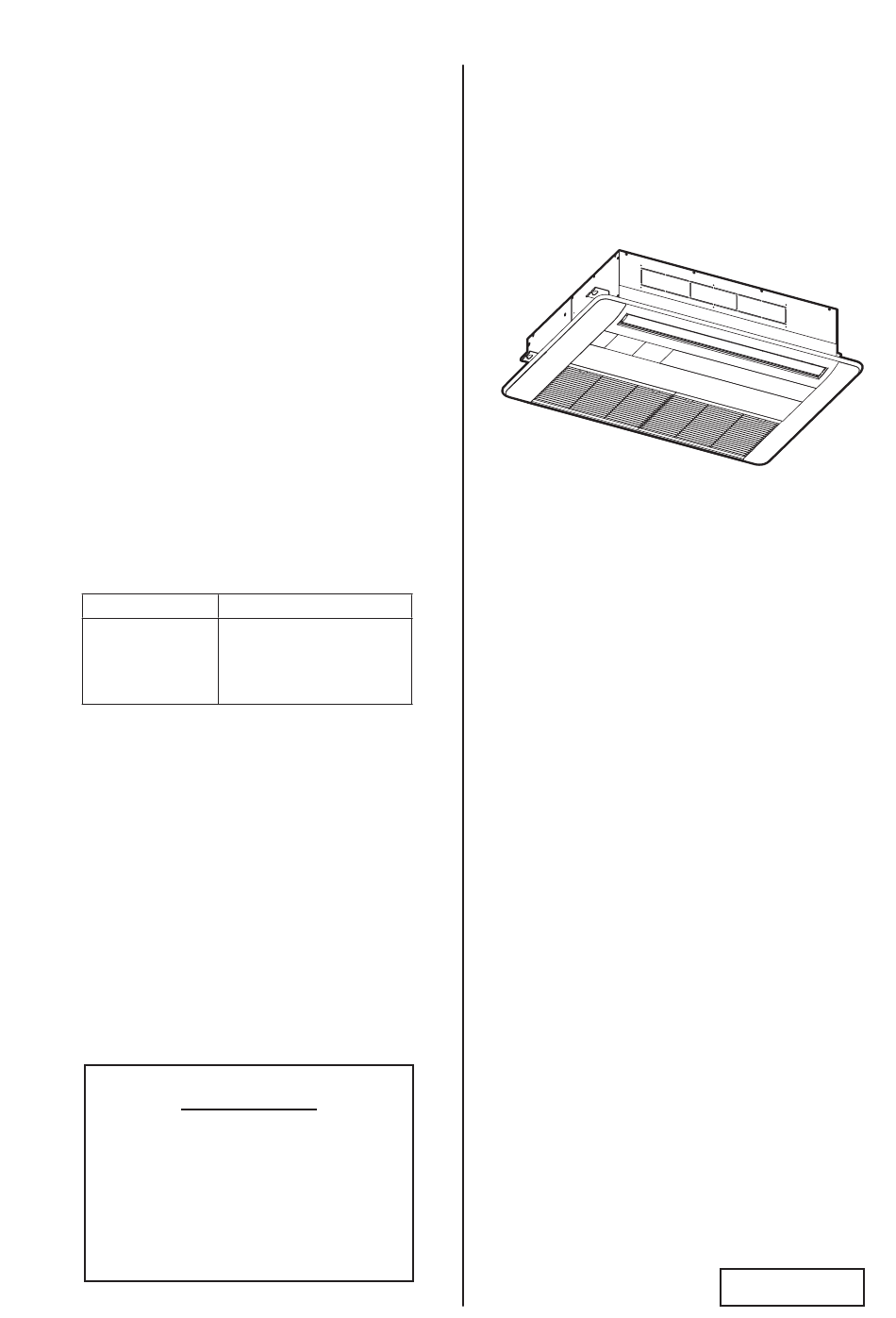

  • Page 1 Operation Manual INVERTER-DRIVEN MULTI-SPLIT SYSTEM HEAT PUMP AIR CONDITIONERS Type Model (H,Y,C)IC1006B21S (H,Y,C)IC1008B21S 1-Way Cassette (H,Y,C)IC1012B21S (H,Y,C)IC1015B21S IMPORTANT: READ AND UNDERSTAND THIS MANUAL BEFORE USING THIS HEAT PUMP AIR CONDITIONER. KEEP THIS MANUAL FOR FUTURE REFERENCE. P5417057...
