Leica BLK360
User Manual
Version 2.0
English

Advertisement

Table of Contents
loading

Related Manuals for Leica BLK360

Summary of Contents for Leica BLK360

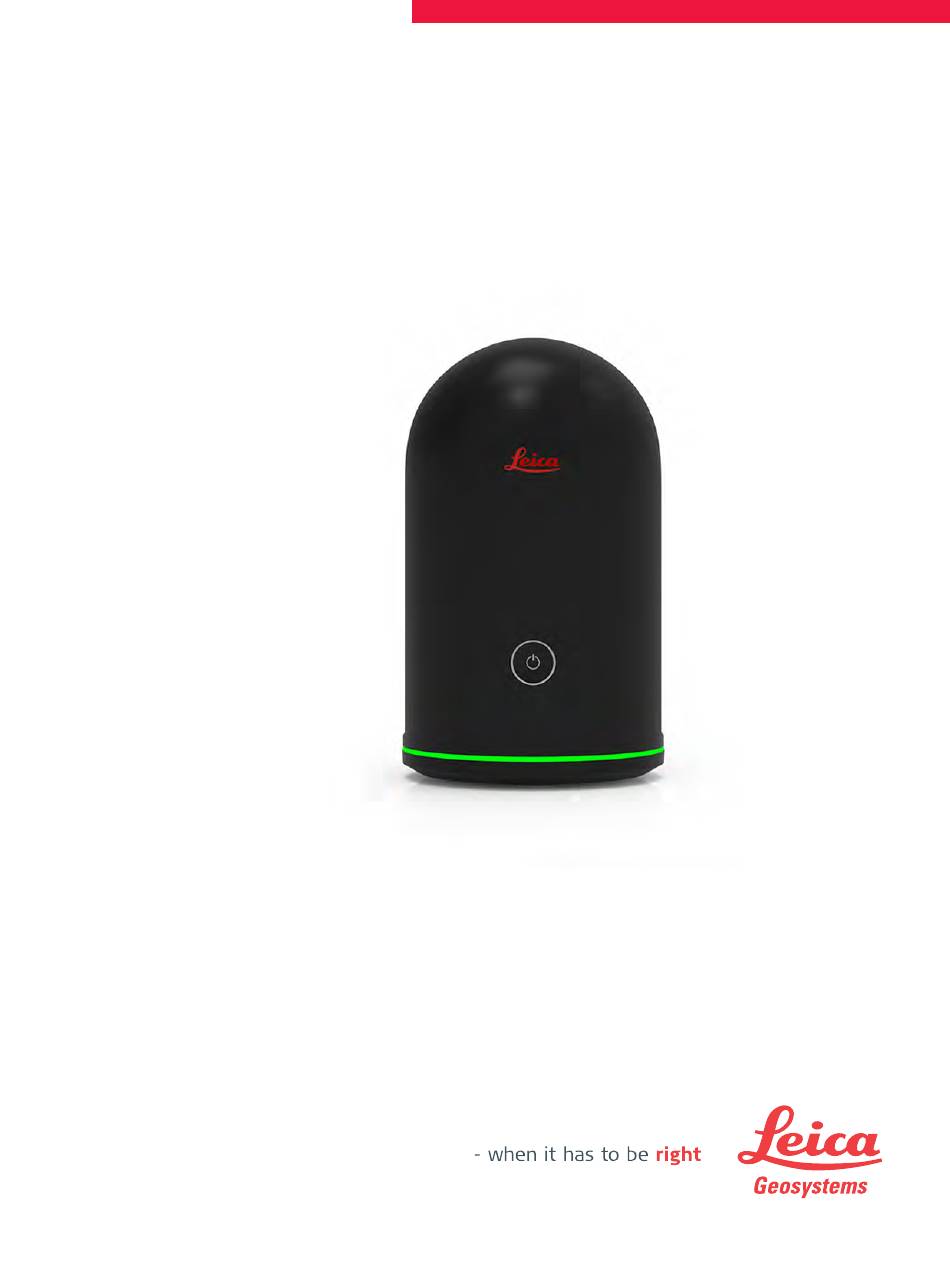

  • Page 1 Leica BLK360 User Manual Version 2.0 English...
  • Page 2 Always refer to this information when you need to contact your agency or Leica Geosystems authorised service centre. Leica Geosystems On the last page of this manual, you can find the address of Leica Geosystems address book headquarters. For a list of regional contacts, please visit...

  • Page 3: Table Of Contents

    Care and Transport Maintenance Transport Storage Cleaning and Drying Glass Cleaning Procedure Technical Data General Technical Data of the Product System Performance Laser System Performance Electrical Data Environmental Specifications 6.5.1 BLK360 6.5.2 Charger and Batteries Dimensions Weight Table of Contents...
  • Page 4 Accessories Conformity to National Regulations 6.9.1 BLK360 6.9.2 Dangerous Goods Regulations Software Licence Agreement Table of Contents...

  • Page 5: Safety Directions

    Safety Directions General Introduction Description The following directions enable the person responsible for the product, and the person who actually uses the equipment, to anticipate and avoid operational hazards. The person responsible for the product must ensure that all users understand these directions and adhere to them.

  • Page 6: Definition Of Use

    Manufacturer of the Leica Geosystems AG, CH-9435 Heerbrugg, hereinafter referred to as product Leica Geosystems, is responsible for supplying the product, including the user manual and original accessories, in a safe condition. Person responsible The person responsible for the product has the following duties:...

  • Page 7: Hazards Of Use

    Hazards of Use WARNING Distraction or loss of attention During dynamic applications there is a danger of accidents occurring if the user does not pay attention to the environmental conditions around, for example obstacles, excavations or traffic. Precautions: ▶ The person responsible for the product must make all users fully aware of the existing dangers.
  • Page 8 CAUTION Not properly secured accessories. If the accessories used with the product are not properly secured and the product is subjected to mechanical shock, for example blows or falling, the product may be damaged or people can sustain injury. Precautions: ▶...
  • Page 9 – special handling may apply. See http://www.dtsc.ca.gov/hazardouswaste/perchlorate/ WARNING Improperly repaired equipment Risk of injuries to users and equipment destruction due to lack of repair knowl- edge. Precautions: ▶ Only Leica Geosystems authorised service centres are entitled to repair these products. Safety Directions...

  • Page 10: Laser Classification

    Precautions: ▶ Do not open the product! ▶ Only Leica Geosystems authorised service centres are entitled to repair these products. WARNING For the AC/DC power supply and the battery charger: Electric shock due to use under wet and severe conditions If unit becomes wet it may cause you to receive an electric shock.

  • Page 11: Electromagnetic Compatibility Emc

    The laser product described in this section is classified as laser class 1 in accordance with: • IEC 60825-1 (2014-05): “Safety of laser products” These products are safe under reasonably foreseeable conditions of operation and are not harmful to the eyes provided that the products are used and main- tained in accordance with this User Manual.
  • Page 12 Precautions: ▶ Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that other equipment may be disturbed. CAUTION Use of the product with accessories from other manufacturers. For...

  • Page 13: Fcc Statement, Applicable In U

    Precautions: ▶ Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that other equipment can be disturbed or that humans or ani- mals can be affected.

  • Page 14: Ic Statement, Applicable In Canada

    XXXXXXXX-XXXXXX S. No.:10412 Made in China 2ICR19/66 A/S:+82 31 620 6252 전지 Leica Geosystems AG, CH-9435 Heerbrugg Manufactured by Huizhou Longji Electronics Co., Ltd. 0013442_001 Type Plate Labelling GKL312 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:...

  • Page 15: Description Of The System

    BLK360 BLK360 instrument and hood with floor stand GEB212 batteries GKL312 charging station GEV192-9 AC/DC power supply for GKL312 BLK360 mission bag BLK360 tripod adapter Tripod 013446_001 Container Contents Container contents BLK360 hood with floor stand BLK360 box GEB212 internal...
  • Page 16 Laser aperture Nadir reference plate Rotating prism Quick release mount 015261_001_ru Description of the System...

  • Page 17: User Interface

    Do not remove the battery from a running instrument! Device Status Device status The ring-shaped LED lights up green, yellow or red in different intervals to show the operation states of the BLK360. a a a b b b Ring-shaped LED continuous...
  • Page 18 Operation mode LED status Instrument status The BLK360 is off or in Power Safe mode. The BLK360 is starting, recording or switch- ing off. The BLK360 is ready. Bright green: Battery capacity > 20%. Dark green: Battery capacity < 20%.
  • Page 19 LED status Instrument status mode The BLK360 is running a firmware update. The firmware update was successful. The firmware update failed. ☞ Refer to the help menu in the Leica BLK360 app for details about firmware update process. User Interface...

  • Page 20: Operation

    ☞ It is always recommended to shield the instrument from direct sun- light and avoid uneven temperatures around the instrument. 4.1.2 Tripod Setup BLK360 setup step- by-step 013458_001 Step Description Unfold the tripod and extend the tripod legs to allow for a comfortable working posture.

  • Page 21: Floor Stand Setup

    4,3,2... 013464_001 Step Description Press the power button to turn on the BLK360. The BLK360 is starting. The ring-shaped LED is blinking yellow. If the ring-shaped LED is continuous green, the BLK360 is ready for operation. Press the power button to start recording.
  • Page 22 ☞ Do not touch or move the BLK360 while the system is recording. Operation with com- puting device connec- tion step-by-step 6 6 6 013465_002 Step Description Press the power button to turn on the BLK360. The BLK360 is starting. The ring-shaped LED is blinking yellow.

  • Page 23: Imaging

    For further information, refer to the help menu in the app. Imaging Description The BLK360 can collect two different types of image data: a HDR panoramic, 360 ° spheric image with three calibrated cameras • a thermographic image with infrared camera (available in special product •...

  • Page 24: Troubleshooting

    Temperature changes If the instrument is brought from a cold environment, for example from stor- during scanning age, into a warm and humid environment, the mirror or in extreme cases even the interior optics can condensate. This may cause measurement errors. ☞...

  • Page 25: Field Of View (Fov)

    An unrecoverable system error occurred. Shut down the instrument and reboot again. If status does not change, contact the Leica support. Troubleshooting - If you experience problems with your instrument, check the BLK360 web page support contacts at http://www.lasers.leica-geosystems.com/blk360 for support information and contacts. 4.4.3...

  • Page 26: Power Supply

    It is normal for the battery to become warm during charging. Using the • chargers recommended by Leica Geosystems, it is not possible to charge the battery once the temperature is too high. For new batteries or batteries that have been stored for a long time •...
  • Page 27 Power supply GEV192-9 230 V GEV192-9 120 V GEV192-9 220 V GEV192-9 230 V 12/24 V GEV192-9 230 V 0013844_001 Charging times 4-8h 0013845_001 Operation...
  • Page 28 Connecting the charger 12/24 V 100-240 V GEV192-9 GEV192-9 100-240 V 12/24 V 0013846_001 Inserting and charging the battery 0%-30% 31%-60% 61%-90% 91%-100% ...100% 0013847_001 Operation...

  • Page 29: Internal Battery

    Open the battery compartment. Remove the battery from the battery compartment. Insert the new battery into the battery compartment. ☞ Ensure that the battery contacts are facing inwards. Close the battery compartment. Turn on the BLK360 to start the boot process. Operation...
  • Page 30 NOTICE Always shut down the instrument before removing the battery. Operation...

  • Page 31: Care And Transport

    Shipping When transporting the product by rail, air or sea, always use the complete orig- inal Leica Geosystems packaging, container and cardboard box, or its equiva- lent, to protect against shock and vibration. Shipping, transport of...

  • Page 32: Glass Cleaning Procedure

    Housing parts of • Never touch the glass and scanning mirror with your fingers. product and accesso- Use only a clean, soft, lint-free cloth for cleaning. If necessary, moisten the • ries cloth with water or pure alcohol. Do not use other liquids; these may attack the polymer components.
  • Page 33 Switch off instrument and remove the battery. • • Washing hands is necessary in order to avoid grease on the cleaning tis- sue. Better, use gloves to avoid finger oil on the glass. • Then use the wet lens cleaning tissue (Green Clean LC-7010) until there is •...

  • Page 34: Technical Data

    Spectral range Minimum range 0.6 m System Performance System performance ☞ All ± accuracy specifications are one sigma (1σ) under Leica Geosys- and accuracy tems standard test conditions unless otherwise noted. Accuracy of single measurement (at 78% Value albedo) Angle (horizontal/vertical) 40"/40"...

  • Page 35: Laser System Performance

    Laser System Performance Laser scanning sys- ☞ The scanning system is a high speed time-of-flight unit, enhanced by tem data Waveform Digitising (WFD) technology with a maximum scan rate of 360.000 points/second. Laser unit: Scanning laser Value Classification Laser Class 1 (in accordance with IEC 60825‑1 (2014‑05)) Wavelength 830 nm (invisible)

  • Page 36: Electrical Data

    Resolution Approx. scan size [mio points] [mm @ 10m] Fast Standard High density Electrical Data BLK360 power supply Power supply: and consumption Internal battery 7.4V DC; one internal battery provided with system. Power consumption: Instrument 10 W typical; 16 W max.

  • Page 37: Charger And Batteries

    Instrument Dimensions [mm] Dimensions [″] (D x W x H) (D x W x H) Leica BLK360 100 x 100 x 165 3.9 x 3.9 x 6.5 GEV192-9 85 x 170 x 41 / 3.4 x 6.7 x 1.6 /...

  • Page 38: Weight

    • Hereby, Leica Geosystems AG declares that the radio equipment type BLK360 is in compliance with Directive 2014/53/EU and other applicable European Directives. The full text of the EU declaration of conformity is available at the fol- lowing internet address: http://www.leica-geosystems.com/ce.

  • Page 39: Dangerous Goods Regulations

    Leica Geosystems has developed Guidelines on “How to carry Leica products” and “How to ship Leica products” with Lithium batteries. Before any transportation of a Leica product, we ask you to consult these guidelines on our web page (http://www.leica-geosystems.com/ dgr) to ensure that you are in accordance with the IATA Danger- ous Goods Regulations and that the Leica products can be transpor- ted correctly.

  • Page 40: Software Licence Agreement

    Leica Geosystems. Such software is protected by copyright and other laws and its use is defined and regulated by...
  • Page 42 853811-2.0.0en Original text (853811-2.0.0en) Printed in Switzerland © 2017 Leica Geosystems AG, Heerbrugg, Switzerland Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg Switzerland Phone +41 71 727 31 31 www.leica-geosystems.com...
