Summary of Contents for Leica BLK360

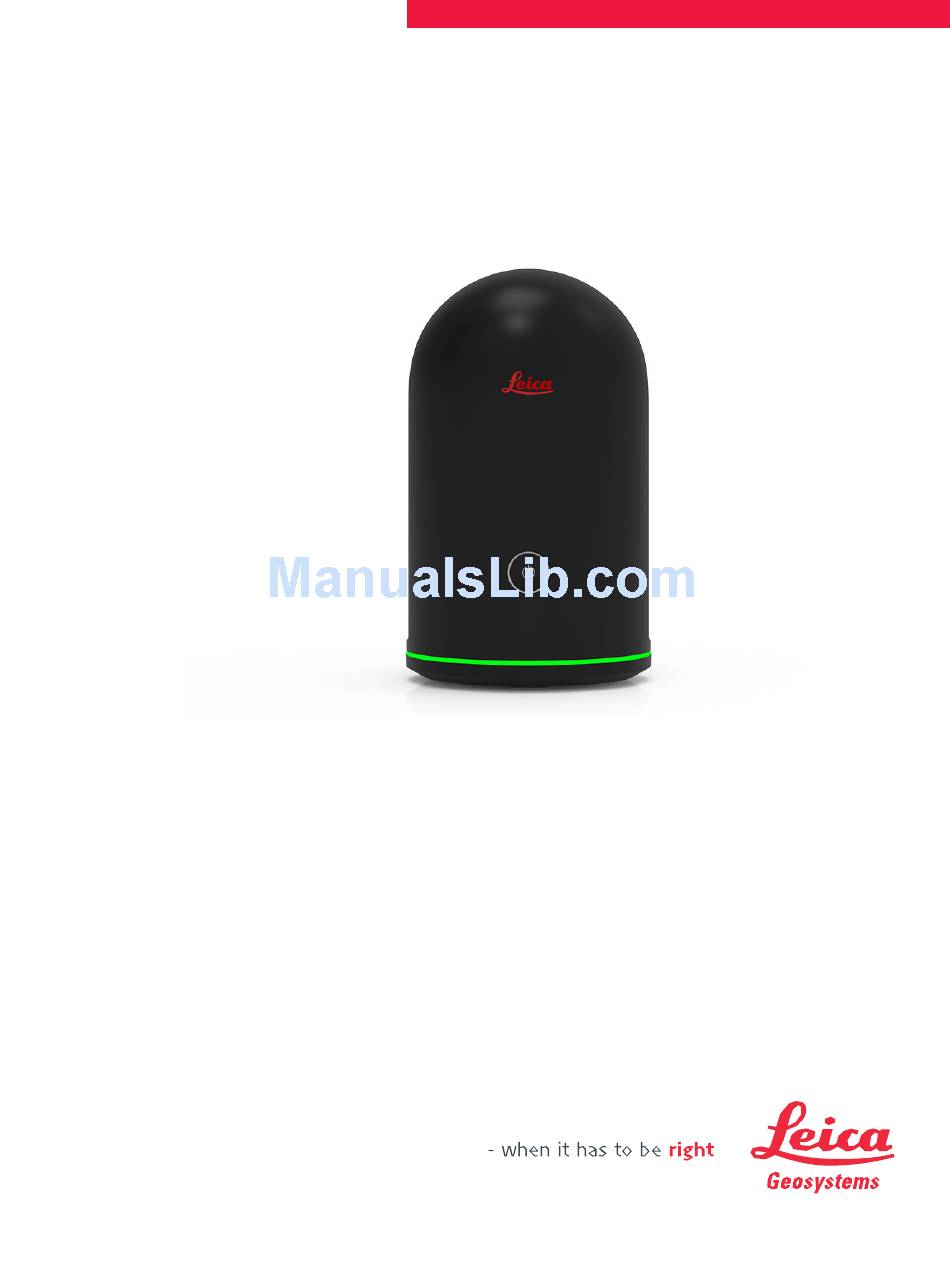

- Page 1 Leica BLK360 User Manual Version 1.0 English...
- Page 2 Always refer to this information when you need to contact your agency or Leica Geosystems authorised service centre. Leica Geosystems On the last page of this manual, you can find the address of Leica Geosystems head- Address Book quarters. For a list of regional contacts, please visit http://leica-geosystems.com/contact-us/sales_support.
-
Page 3: Table Of Contents
Battery and Charger Safety 4.6.2 Charging Station 4.6.3 Internal Battery Care and Transport Maintenance Transport Storage Cleaning and Drying Glass Cleaning Procedure Technical Data General Technical Data of the Instrument System Performance Laser System Performance Electrical Data Environmental Specifications BLK360, Table of Contents... - Page 4 6.5.1 BLK360 6.5.2 Charger and Batteries Dimensions Weight Accessories Conformity to National Regulations 6.9.1 BLK360 6.9.2 Dangerous Goods Regulations Software Licence Agreement BLK360, Table of Contents...
-
Page 5: Safety Directions
Definition of Use Intended use • Measuring horizontal and vertical angles. • Measuring distances. • Capturing and recording images. • Recording measurements. • Remote control of product. • Data communication with external appliances. BLK360, Safety Directions... -
Page 6: Limits Of Use
• To ensure that it is used in accordance with the instructions. • To be familiar with local regulations relating to safety and accident prevention. • To inform Leica Geosystems immediately if the product and the application becomes unsafe. • To ensure that the national laws, regulations and conditions for the operation of the product are respected. - Page 7 When transporting or shipping batteries, the person in charge of the product must ensure that the applicable national and international rules and regulations are observed. Before transportation or shipping contact your local passenger or freight transport company. BLK360, Safety Directions...
- Page 8 • Using the product after incorrect attempts were made to carry out repairs. Precautions: Do not open the product. Only Leica Geosystems authorised service centres are enti- tled to repair these products. For the AC/DC power supply and the battery charger: WARNING The product is not designed for use under wet and severe conditions.
-
Page 9: Laser Classification
User Manual. Description Value Wavelength 830 nm Maximum pulse energy 5 nJ Pulse duration 4 ns Pulse repetition frequency (PRF) 2.16 MHz Beam divergence (FWHM, full angle) 0.4 mrad Mirror rotation 30 Hz 2.5 mHz Base rotation BLK360, Safety Directions... -
Page 10: Electromagnetic Compatibility Emc
WARNING Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that other equipment may be disturbed. There is a risk that disturbances may be caused in other equipment if the product is... -
Page 11: Fcc Statement, Applicable In U
Precautions: Although the product meets the strict regulations and standards which are in force in this respect, Leica Geosystems cannot completely exclude the possibility that other equipment can be disturbed or that humans or animals can be affected. • Do not operate the product with radio or digital cellular phone devices in the vicinity of filling stations or chemical installations, or in other areas where an explosion hazard exists. -
Page 12: Ic Statement, Applicable In Canada
XXXXXXXX-XXXXXX S. No.:10412 2ICR19/66 Made in China A/S:+82 31 620 6252 전지 Leica Geosystems AG, CH-9435 Heerbrugg Manufactured by Huizhou Longji Electronics Co., Ltd. 0013442_001 Type Plate Labelling GKL312 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:... -
Page 13: Description Of The System
Description of the System System Components System compo- nents BLK360 a) BLK360 instrument and hood with floor stand b) GEB212 batteries c) GKL312 charging station d) GEV192-9 AC/DC power supply for GKL312 e) BLK360 mission bag f) BLK360 tripod adapter... -
Page 14: Instrument Components
HDR camera c) IR camera d) Ring-shaped LED e) Scanner 360 ° f) Power button 013447_001 g) 360 ° WLAN antenna a) Laser aperture b) Nadir reference plate c) Rotating prism d) Quick release mount 014145_001 BLK360, Description of the System... -
Page 15: User Interface
BLK360 starts recording and the LED starts green. blinking yellow. Press and hold the in Power Safe The BLK360 is ready again. The LED turns to button <0.5 sec. mode. The LED is continuous green. off. Press and hold the on and ready. - Page 16 LED status Instrument status mode The BLK360 is running a firmware update. The firmware update was successful. The firmware update failed. Refer to the help menu in the Leica BLK360 app for details about firmware update process. BLK360, User Interface...
-
Page 17: Operation
It is always recommended to shield the instrument from direct sunlight and avoid uneven temperatures around the instrument. 4.1.2 Tripod Setup BLK360 setup step- by-step 013458_001 Step Description Unfold the tripod and extend the tripod legs to allow for a comfortable working posture. -
Page 18: Floor Stand Setup
Press the power button to turn on the BLK360. The BLK360 is starting. The ring-shaped LED is blinking yellow. If the ring-shaped LED is continuous green, the BLK360 is ready for oper- ation. Press the power button to start recording. - Page 19 Press the power button to turn on the BLK360. The BLK360 is starting. The ring-shaped LED is blinking yellow. If the ring-shaped LED is continuous green, the BLK360 is ready for oper- ation. Press the power button to start recording.
-
Page 20: Imaging
Imaging Description The BLK360 can collect panoramic, 360 ° spheric image data with three calibrated cameras. Imaging a) 3 cameras 013480_001 Scanning 4.4.1 Ambient Conditions Unfavourable • Highly reflective (polished metal, gloss paint) surfaces for scan- • Highly absorbent (black) ning •... -
Page 21: Troubleshooting
An unrecoverable system error occurred. Shut down the instru- ment and reboot again. If status does not change, contact the Leica support. Troubleshooting - If you experience problems with your instrument, check the BLK360 web page at support contacts http://www.lasers.leica-geosystems.com/blk360 for support information and contacts. -
Page 22: Field Of View (Fov)
014256_001 a) Vertical field of view: 300° b) Horizontal field of view: 360° Data Transfer Description 013477_002 a) Raw data transfer from BLK360 to computing device. Refer to Operation - Getting Started. Power Supply 4.6.1 Battery and Charger Safety General Use the batteries, chargers and accessories recommended by Leica Geosystems to ensure the correct functionality of the instrument. -
Page 23: Charging Station
4.6.2 Charging Station Main components GKL312 GEV192-9 0013841_001 Power supply GEV192-9 230 V GEV192-9 120 V GEV192-9 220 V GEV192-9 230 V 12/24 V GEV192-9 230 V 0013844_001 Charging times 4-8h BLK360, Operation... - Page 24 Connecting the charger 12/24 V 100-240 V GEV192-9 GEV192-9 100-240 V 12/24 V 0013846_001 Inserting and charging the battery 0%-30% 31%-60% 61%-90% 91%-100% ...100% 0013847_001 Error indication 50°C 50°C 0°C 0°C Input Voltage! 0013848_001 BLK360, Operation...
-
Page 25: Internal Battery
Insert the new battery into the battery compartment. Ensure that the battery contacts are facing inwards. Close the battery compartment. Turn on the BLK360 to start the boot process. Always shut down the instrument before removing the battery. NOTICE BLK360, Operation... -
Page 26: Care And Transport
Shipping When transporting the product by rail, air or sea, always use the complete original Leica Geosystems packaging, container and cardboard box, or its equivalent, to protect against shock and vibration. Shipping, transport When transporting or shipping batteries, the person responsible for the product must... -
Page 27: Cleaning And Drying
• After that use the dry lens cleaning tissue (Green Clean LC-7010) to remove any remaining detergent. • If any smears from cleaning are visible against back light, repeat the procedure. • Do not use air from the pneumatic power system as this is always slightly oily! BLK360, Care and Transport... -
Page 28: Technical Data
Internal storage: Communication 64 GB, enough for > 100 setups. Communication: Integrated 802.11 b/g/n WLAN with MIMO. Internal HDR The Leica BLK360 has three integrated HDR digital cameras. cameras Camera data Value Type Colour sensor, fixed focal length Single image 2592 x 1944 pixels, 60°... -
Page 29: Laser System Performance
Fast 00:40 Standard 01:50 High density 03:40 Image capturing time: Camera type Estimated image duration [MM:SS] Imaging 01:40 Scan size for 3 settings: Resolution [mm @ 10 m] Approx. scan size [mio points] Fast Standard High density BLK360, Technical Data... -
Page 30: Electrical Data
Type Protection Instrument IP54 (IEC 60529), upright Dust protected Protection against splashing water from any direction Humidity: Type Protection Instrument Max 95 % non condensing Lighting: Type Conditions Instrument Fully operational from bright sunlight to complete darkness. BLK360, Technical Data... -
Page 31: Charger And Batteries
Weight [lbs] Leica BLK360 1.0 nominal 2.2 nominal GEV192-9 AC power supply for GKL312 GKL312 charging station GEB212 battery Leica BLK360 transport container (without scanner and accessories) Leica BLK360 transport container (with scanner and standard accesso- ries) BLK360, Technical Data... -
Page 32: Accessories
• FCC Part 15 (applicable in US) national regulations • Hereby, Leica Geosystems AG, declares that the product BLK360 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity can be consulted at http://www.leica- geosystems.com/ce. -
Page 33: Dangerous Goods Regulations
Leica Geosystems has developed Guidelines on “How to carry Leica products” and “How to ship Leica products” with Lithium batteries. Before any transpor- tation of a Leica product, we ask you to consult these guidelines on our web page (http://www.leica-geosystems.com/dgr) to ensure that you are in accord- ance with the IATA Dangerous Goods Regulations and that the Leica products can be transported correctly. -
Page 34: Software Licence Agreement
Leica Geosystems. Such software is protected by copyright and other laws and its use is defined and regulated by the Leica Geosystems Software Licence Agreement, which covers aspects such as, but not limited to, Scope of the Licence, Warranty, Intellectual Property Rights, Limitation of Liability, Exclusion of other Assurances, Governing Law and Place of Jurisdiction. - Page 36 853811-1.0.0en Original text Printed in Switzerland © 2017 Leica Geosystems AG, Heerbrugg, Switzerland Leica Geosystems AG Heinrich-Wild-Strasse CH-9435 Heerbrugg Switzerland Phone +41 71 727 31 31 www.leica-geosystems.com...
