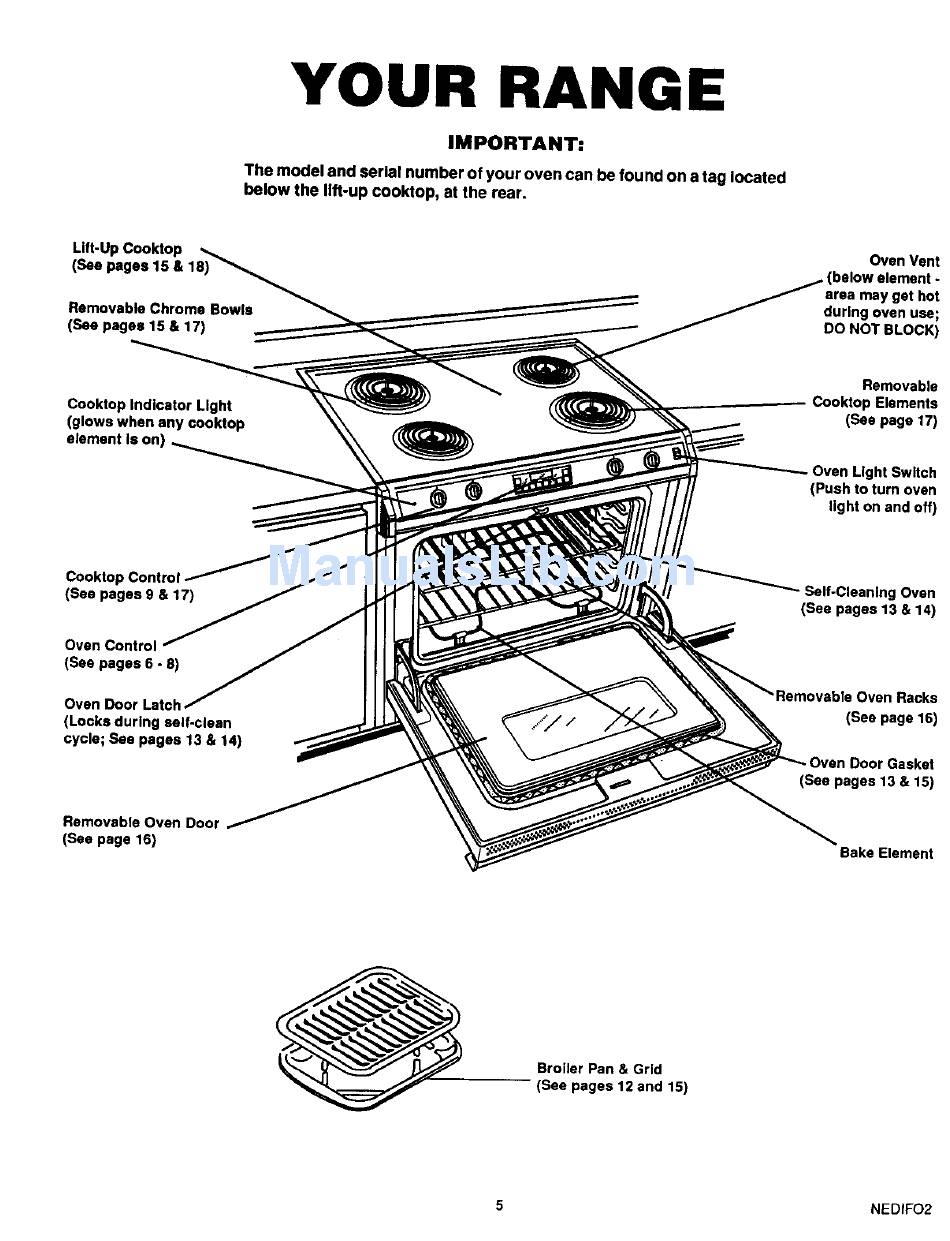

YOUR
RANGE
iMPORTANT:
The model and serial number of your oven can be found on a tag located
below the lift-up cooktop, at the rear.
Lift-Up Cooktop
Removable Chrome Bowls
(Soe pages 15 & 17)
Oven Vent
below element -
area may get hot
during oven use;
DO NOT BLOCK)
Cooktop indicator Light
(glows when any cooktop
element Is on)
Cooktop Control
(See pages 9 & 17)
Oven Control
(See pages 6 - 8)
Oven Door Latch
(Locks during self-clean
cycle; See pages 13 & 14)
Removable
Cooktop Elements
(See page 17)
Oven Light Switch
(Push to turn oven
light on and off)
Self-Cleaning
Oven
(See pages 13 & 14)
Racks
(See page 16)
Door Gasket
(See pages 13 & 15)
Removable Oven Door
(See page 16)
Bake Element
Broiler
Pan & Grid
(See pages 12 and 15)
5
NEDIF02
