VIA Technologies ARTiGO-A1200 Quick Manual

ARTiGO-A1200
Barebone System with EITX Barebone System with EITX- - - - 2000 Board Barebone System with EITX Barebone System with EITX 2000 Board 2000 Board 2000 Board

Quick Guide

Key Features: Key Features: Key Features: Key Features:
Fanless, Ultra Slim, Ultra Compact, Space Saving
•
and Low Power Consumption
Support USB 2.0 and 3.0, and Gigabit Ethernet port
•
Support HDMI ® port and VGA connector
•
• Support 2.5-inch SATA hard disk and CFast socket
• Support 3G/WLAN miniPCIe slot with one SIM
socket
P/N: 99G51-013154-10

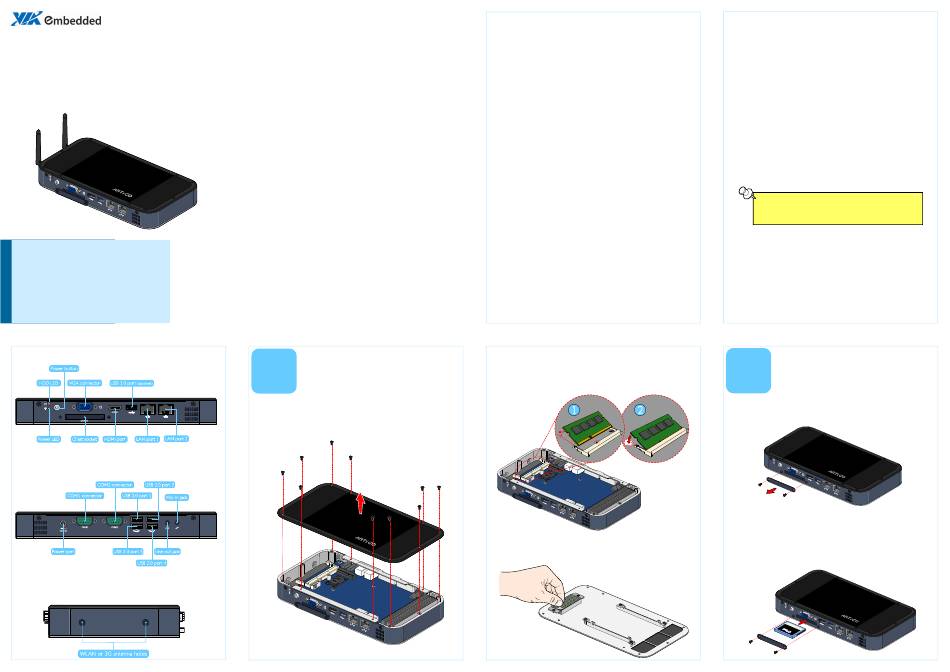

Front I/O Panel Layout Front I/O Panel Layout
Front I/O Panel Layout Front I/O Panel Layout
Rear I/O Panel Layout Rear I/O Panel Layout Rear I/O Panel Layout Rear I/O Panel Layout
Side I/O Panel Layout Side I/O Panel Layout
Side I/O Panel Layout Side I/O Panel Layout

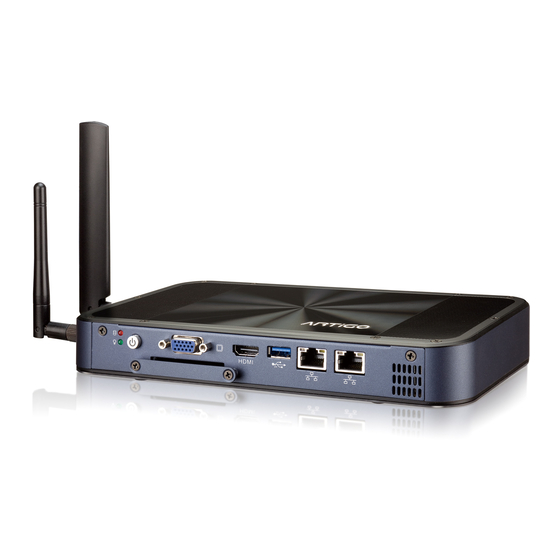

The ARTiGO-A1200 is a fanless and ultra compact system. It is
based on the VIA EITX-2000 embedded board powered by a high
performance dual core 64-bit VIA Eden™ X2 1.0GHz processor.
The ARTiGO-A1200 system is designed with an elegant aluminum
chassis and has a wide selections of interfaces on the front and real
I/O panels to easily support various applications, easy integration
and quick setup. In addition, the ARTiGO-A1200 is a low power
consumption system and fully compatible with Microsoft Windows
and Linux operating systems.
Specifications: Specifications:
Specifications: Specifications:
CPU: CPU:
CPU: CPU:
•
VIA Eden™ X2 1.0GHz processor (1066MHz FSB)
1066MHz Front Side Bus speed
•
2 MB L2 Cache memory
•
System Chipset: System Chipset:
System Chipset: System Chipset:
•
VIA VX900 Unified Digital Media IGP chipset
System Memory: System Memory: System Memory: System Memory:
•
1 x SODIMM slot supporting DDR3 1066 SDRAM
Supports up to 4 GB memory size
•
Graphics: Graphics: Graphics: Graphics:
•
Integrated VIA Chrome9 HD DX9 3D/2D graphics and
video processor with MPEG-2, WMV9/VC1 and H.264
video decoding accelerator
Storage: Storage: Storage: Storage:
•
1 x 2.5" hard disk bay for 2.5" SATA HDD or
•
2.5" Flash SSD
1 x CFast card socket for Type I/II
•
LAN: LAN:
LAN: LAN:
•
VIA VT6130 Gigabit Ethernet controller
Audio: Audio: Audio: Audio:
•
VIA VT2021 Blue Ray High Definition Audio Codec
Installing the Memory Installing the Memory Installing the Memory Installing the Memory
1
Step 1 Step 1 Step 1 Step 1
Remove the top cover from the chassis by unscrewing the ten screws to
locate the DDR3 SODIMM memory socket.
System Indicator: System Indicator: System Indicator: System Indicator:
•
Power Status LED (green LED)
•
Hard Disk Drive Activity LED (red LED)
•
BIOS: BIOS: BIOS: BIOS:
•
AMI BIOS
8 Mbit SPI flash memory
•
Front I/O panel: Front I/O panel: Front I/O panel: Front I/O panel:
•
Power On/Off Button Switch
•
Power Status LED indicator
•
HDD Activity LED indicator
•
1 x VGA connector
•
®
1 x HDMI port
•
1 x USB 3.0 port (optional)
•
2 x RJ-45 port (Gigabit Ethernet connection)
•
1 x CFast socket
•
Rear I/O panel: Rear I/O panel: Rear I/O panel: Rear I/O panel:
•
DC jack power input connector
•
2 x COM connectors (default as RS-232)
•
4 x USB 2.0 ports
•
2 x 3.5 ф Audio jacks (Line-Out and Mic-In)
•
Left Side I/O panel: Left Side I/O panel:
Left Side I/O panel: Left Side I/O panel:
•
2 x Reserved antenna holes for WLAN and 3G
•
miniPCIe adapters
Dimensions: Dimensions: Dimensions: Dimensions: 234 mm (W) x 30 mm (H) x 124 mm (D)
•
Weight: Weight: Weight: Weight: 1.2 Kg (2.64 lbs) net weight
•
Operating Temperature: Operating Temperature: Operating Temperature: Operating Temperature:
0°C up to 45°C
•
Storage Temperature: Storage Temperature:
Storage Temperature: Storage Temperature: - - - - 10°C ~ 60°C
•
Relative Humidity: Relative Humidity: Relative Humidity: Relative Humidity: 0% ~ 90% @ 45°C, non-condensing
•
Vibration During Operation (with CFast card only): Vibration During Operation (with CFast card only):
Vibration During Operation (with CFast card only): Vibration During Operation (with CFast card only):
•
▪ 1Grms, IEC 60068-2-64, random, 5~500Hz,
1 Oct./min, 1 hr/axis
Step 2 Step 2
Step 2 Step 2
Locate the DDR3 SODIMM memory socket. Gently insert the
DDR3 memory module into the SODIMM socket at 30 degrees
angle. Push down the memory module until it snaps into place.
Step 3 Step 3 Step 3 Step 3
Flip over the top cover. Then remove the memory thermal pad protective
cover (plastic) on the memory heatsink.
Shock During Operation (with CFast card only): Shock During Operation (with CFast card only): Shock During Operation (with CFast card only): Shock During Operation (with CFast card only):
•
▪ 10G, IEC 60068-2-27, half size, 11ms duration
Software Compatibility (Operating System) Software Compatibility (Operating System) Software Compatibility (Operating System) Software Compatibility (Operating System)
•
▪ Microsoft Windows 7
▪ Microsoft Windows XP
▪ Microsoft Windows XP Embedded
▪ Microsoft Windows Embedded Standard 7
▪ Linux
Packing List: Packing List:
Packing List: Packing List:
1 x ARTiGO-A1200 system
•
1 x AC-to-DC power adapter, DC 12V/5A, 60W
•
1 x Software driver and utility CD disc
•
1 x Quick Guide
•
Note: Note: Note: Note:
Please ensure that all items in the packing list are present before
using this product. If any of the items are missing or damaged,
contact your distributor or sales representative immediately.
Installing CFast Card Installing CFast Card Installing CFast Card Installing CFast Card
2
Step 1 Step 1 Step 1 Step 1
Remove the CFast socket cover by unscrewing the two screws.
Step 2 Step 2 Step 2 Step 2
Insert the CFast card into the CFast socket. Ensure the proper orientation
is correct before inserting the card. Reinstall the CFast socket cover and
secure it with screws.
