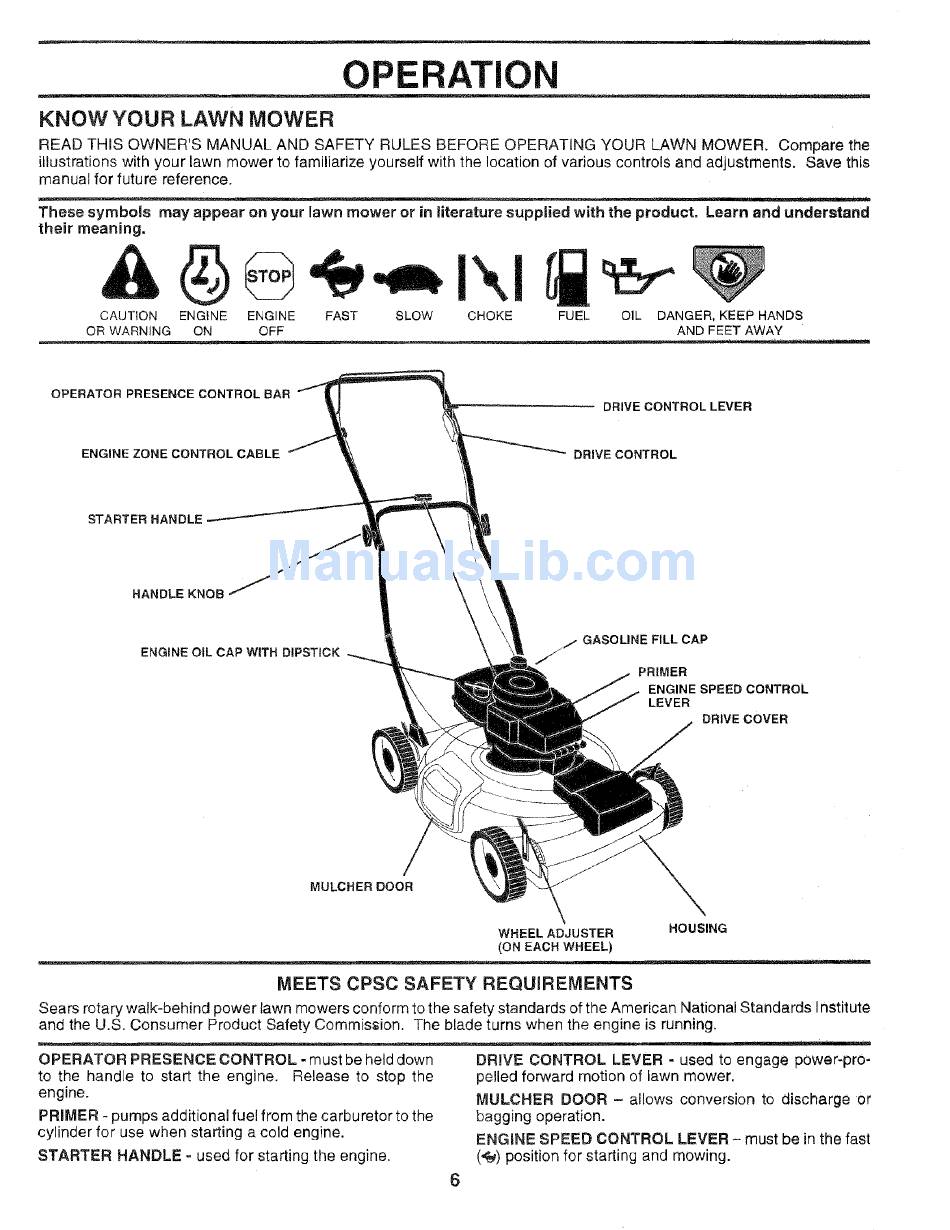

KNOW YOUR LAWN MOWER
READ THiS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER.
Compare the
illustrations with your lawn mower to familiarize yourself with the location of various controls and adjustments.
Save this
manual for future reference.
These symbols
may appear on your lawn mower or in literature supptied with the product. Learn and understand
their meaning.
- i\1
SLOW
CHOKE
ENGINE
ENGINE
ON
OFF
CAUTION
FAST
FUEL
OR WARNING
OIL
DANGER,
KEEP HANDS
AND FEET AWAY
OPERATOR
PRESENCE
CONTROL
BAR
DRIVE CONTROL
LEVER
ENGINE ZONE CONTROL
CABLE
DRIVE CONTROL
STARTER HANDLE
HANDLE
KNOB
ENGINE OiL CAP WiTH DIPSTICK
,1. GASOLINE
FILL CAP
I
ENGINE SPEED CONTROL
LEVER
DRIVE COVER
MULCNER
DOOR
WHEEL ADJUSTER
HOUSING
(ON EACH WHEEL)
MEETS CPSC SAFETY
REQUIREMENTS
Sears rotary walk-behind power lawn mowers conform to the safety standards of the American National Standards Institute
and the U.S. Consumer Product Safety Commission.
The blade turns when the engine is running.
OPERATOR PRESENCE CONTROL - must be held down
to the handle to start the engine.
Release to stop the
engine.
PRIMER - pumps additional fuel from the carburetor to the
cylinder for use when starting a cold engine.
STARTER HANDLE - used for starting the engine.
DRIVE CONTROL
LEVER - used to engage power-pro-
pelled forward motion of lawn mower.
MULCHER
DOOR - allows cOnversion to discharge or
bagging operation.
ENGINE SPEED CONTROL LEVER - must be in the fast
(,_) position for starting and mowing.
