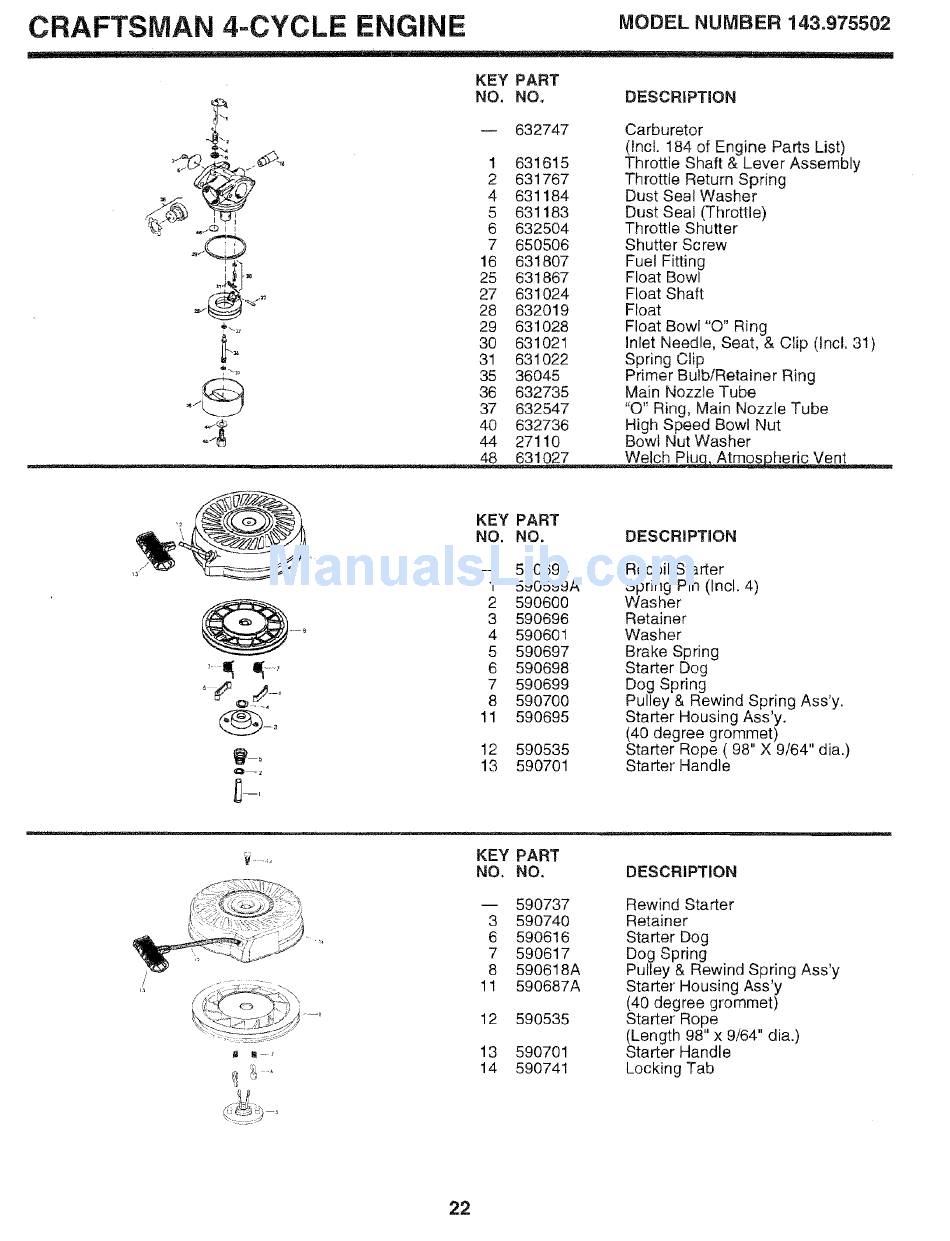

CRAFTSMAN
4-CYCLE ENGINE
MODEL N UMBER 1 43.975502
KEY PART
NO, NO,
DESCRiPTiON
q_
--
632747
Carburetor
"
(Incl. 184 of Engine Parts List)
"_>_-4
_._5_3_,,
_
1
631615
Throttle Shaft & Lever Assembly
2
631767
Throttle Return Spring
4
631184
Dust Seal Washer
_7._Z__
5
631183
DustSeal
(Throttle)
_
._.o
6
632504
Throttle Shutter
O
7
650506
Shutter Screw
""
16
631807
Fuel Fitting
_j
25
631867
Float Bowl
-_/
27
631024
Float Shaft
_-_
28
632019
Float
÷....
29
631028
Float Bowl"Q" Ring
30
631021
Inret Needle, Seat, & Clip (Incl. 31)
31
631022
Spring Clip
'_
35
36045
Primer Bulb/Retainer
Ring
36
632735
Main Nozzle Tube
_!
37
632547
"0" Ring, Main Nozzle Tube
,_'_..8
40
632736
High Speed Bowl Nut
44
27110
Bowl Nut Washer
48
631027
Welch Plu
Atmos
hericVe
t
KEY PART
NO. NO.
DESCRIPTION
--
590694
Recoil Starter
1
590599A
Spring Pin (Inc!. 4)
2
590600
Washer
3
590696
Retainer
- °
4
590601
Washer
5
590697
Brake Spring
'-_
_ .....
6
590698
Starter Dog
7
590699
Dog Spring
E
_" _'_-'
8
590700
Pulley & Rewind Spring Ass'y.
(___
11
590695
Starter Housing Ass'y.
(40 degree grommet)
12
590535
Starter Rope ( 98" X 9/64" dia.)
_-,
___
13
590701
Starter Handle
,,
KEY PART
NO. NO.
DESCRIPTION
--
590737
Rewind Starter
3
590740
Retainer
6
590616
Starter Dog
7
590617
Dog Spring
8
590618A
Pulley & Rewind Spring Ass'y
11
590687A
Starter Housing Ass'y
(40 degree grommet)
12
590535
Starter' Rope
(Length 98" x 9/64" dia.)
13
590701
Starter Handle
14
590741
Locking Tab
22
